| Brand | Antec |
|---|---|
| Series | High Current Gamer Gold Series |

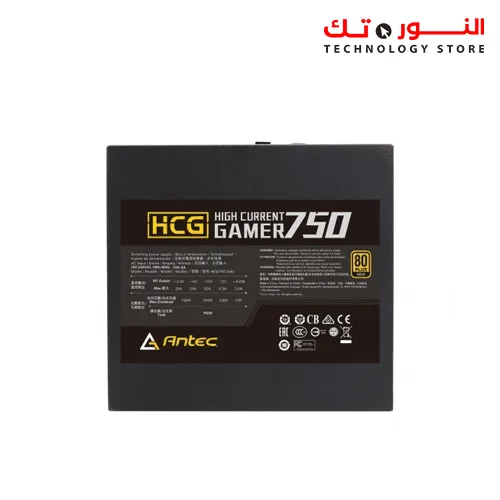

| Model | HCG750 Gold |
| Type | ATX 12V 2.4 |
|---|---|
| Maximum Power | 750W |
| Fans | 120mm FDB Silence fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50Hz – 60Hz |
| Input Current | 10A – 5A |
| Output | +3.3V@20A, +5V@20A, +12V@62A, [email protected], [email protected] |
| Approvals | cTUVus / TUV / CB / RCM / CE / EAC / CCC / BSMI / FCC / KR |
| Dimensions | 5.91″ x 5.51″ x 3.39″ |
| Max PSU Length | 140 mm |
| Weight | 4.65 lbs. |
| Features | Guaranteed 750W of Continuous Power from Antec
100% Modular-Improves airflow and reduces clutter 80 PLUS GOLD certified-Up to 92% efficient, to reduce your electricity bill PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology Antec Quality 10-year warranty and lifetime global 24/7 support 120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence 99%+12V – Output for maximum CPU & GPU support CircuitShield-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance 28(18+10) pin MBU socket – For possible future MBU connectors ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation Compact size 140mm depth power supply is the best choice for compact ATX chassis |
|---|
| Features | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 8 x SATA 3 x Molex 1 x FDD |
|---|
