Asus PRIME H610M-K D4

Name: Asus PRIME H610M-K D4
Brand: Asus
SKU: 2091
Price: 3999.00 EGP
Availability: InStock

⁦3.999,00 EGP⁩

اطلب من خلال الواتساب

رمز المنتج: 2091

التصنيفات:مكونات كمبيوتر,اللوحة الأمالوسوم:#INTEL #MICRO ATX #Motherboard #Asus #PRIME #B660M

Asus PRIME H610M-K D4

العلامة التجاريه	اسوس
الخيارات	TRAY, MOTHERBOARD ONLY
نوع اللوحة الأم	انتيل
نوع سوكيت المعالج	LGA 1700
شريحة اللوحة الأم	H610

وسائل دفع آمنة

جميع الشحنات مؤمنة ضد الكسر
شحن فوري خلال ٢٤ ساعة
معاينة قبل الاستلام وفرز كل قطعة

الوصف

Asus PRIME H610M-K D4

CPU

Asus PRIME H610M-K D4 Intel^® Socket LGA1700 for 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors* Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Asus PRIME H610M-K D 4

Graphics

1 x D-Sub port 1 x HDMI^® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel^® 12^th Gen Processors 1 x PCIe 4.0 x16 slot Intel^® H610 Chipset 1 x PCIe 3.0 x1 slot

Asus PRIME H610M-K D 4 Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel^® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio Asus PRIME H610M-K D 4

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

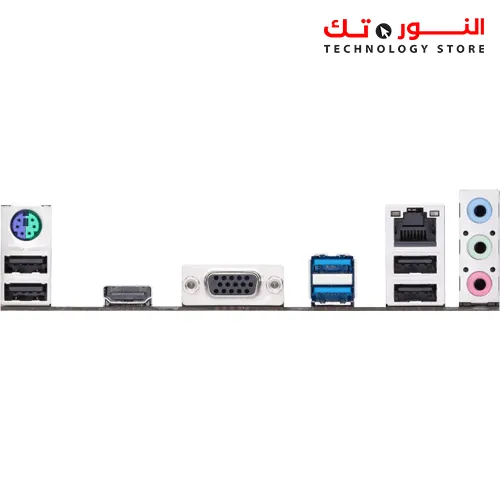

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) D-Sub port 1 x HDMI^® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Asus PRIME Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Asus PRIME H610M-K D 4

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header

Asus PRIME H610M-K D 4

Software Features

ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO Asus PRIME EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

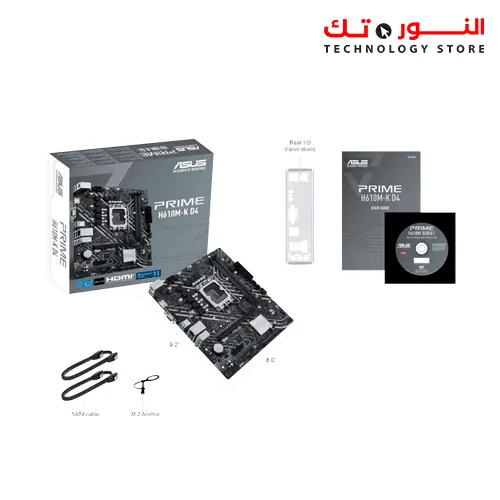

Accessories

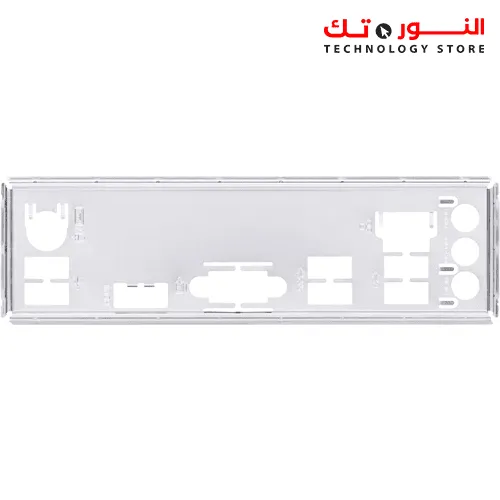

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Asus PRIME Installation Media 1 x Support DVD Documentation 1 x User Guide
