Graphic Engine
NVIDIA® GeForce RTX™ 3080
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
10GB GDDR6X
Engine Clock
OC Mode – 1740 MHz (Boost Clock)
Gaming Mode (Default) – GPU Boost Clock : 1710 MHz , GPU Base Clock : 1440 MHz
Gaming Mode (Default) – GPU Boost Clock : 1710 MHz , GPU Base Clock : 1440 MHz
CUDA Core
8704
Memory Speed
19 Gbps
Memory Interface
320-bit
Resolution
Digital Max Resolution 7680 x 4320

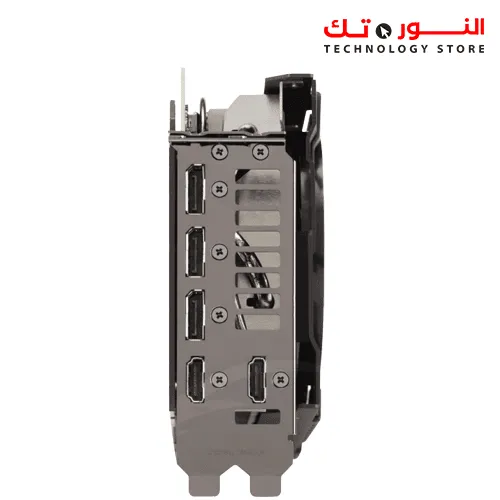

Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection card
1 x Speedsetup manual
1 x TUF certificate of Reliability
1 x Speedsetup manual
1 x TUF certificate of Reliability
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
11.8 ” x 4.99 ” x 2.03 ” Inch
29.99 x 12.69 x 5.16 Centimeter
29.99 x 12.69 x 5.16 Centimeter
Recommended PSU
850W
Power Connectors
2 x 8-pin
Slot
2.7 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
