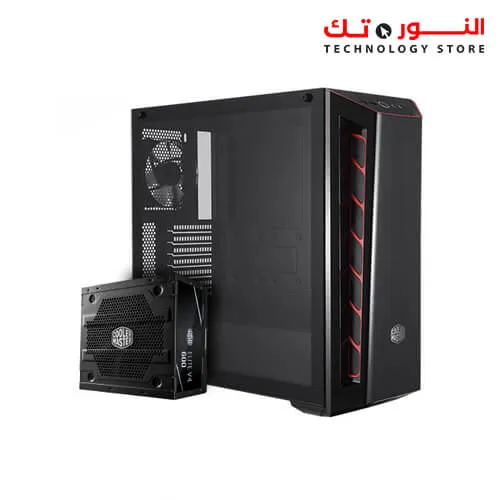

MASTERBOX MB520 TG
LIGHT ‘EM UP.
DarkMirror Front Panel
Mesh Intakes
Tempered Glass Side Panel
Optimized Airflow
Room For Upgrades
Versatile Cooling Options
A LOOK THROUGH THE DARKMIRROR
The MasterBox MB520 TG focuses on aesthetics and showmanship with a fully transparent front panel. For rigs built with lighting as a concentration, the front panel offers to view components through the panel while having the aggressive intakes to ensure airflow.
The aggressive ventilation on the DarkMirror front panel cools the system while the ventilation on the top panel offers additional thermal support.
Building a gaming rig is a process that evolves in components over time. To align with the pace of technology, interior clearances have ample space to support future component upgrades. The chassis and PSU shroud are powder-coated in black to help compliment your build while the edge-to-edge tempered glass side panel shows it off.
DARKMIRROR FRONT PANEL
Light up the room through the DarkMirror front panel.
MESH INTAKES
Large, mesh intakes on each side of the front panel provide considerable airflow to system.
TEMPERED GLASS SIDE PANEL
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
OPTIMIZED AIRFLOW
Filtered ventilation on the top panel provides additional thermal support while also offering mounting options for future cooling upgrades.
ROOM FOR UPGRADES
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
- MODEL NUMBER
- MCB-B520-KGNN-S00
- AVAILABLE COLOR(S)
- Red
- MATERIALS
- Steel, Plastic, Tempered Glass
- DIMENSIONS (L X W X H)
- 496 x 217 x 469 mm
- MOTHERBOARD SUPPORT
- ATX, Micro ATX, Mini ITX
- EXPANSION SLOTS
- 7
- 5.25″ DRIVE BAYS
- N/A
- 2.5″ / 3.5″ DRIVE BAYS (COMBO)
- 2 (Max.2)
- 2.5″ DRIVE BAYS
- 4 (Max.6)
- I/O PANEL
- 2x USB 3.0, Audio In & Out (supports HD audio)
- PRE-INSTALLED FANS – REAR
- 1x 120mm (Black)
- FAN SUPPORT – TOP
- 3x 120mm, 2x 140mm
- FAN SUPPORT – FRONT
- 3x 120mm, 2x 140mm
- FAN SUPPORT – REAR
- 1x 120mm
- RADIATOR SUPPORT – FRONT
- 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – TOP
- 120mm, 240mm, 360mm
- RADIATOR SUPPORT – REAR
- 120mm
- CLEARANCE – CPU COOLER
- 165mm/6.49″
- CLEARANCE – PSU
- 180mm/7.1″
- CLEARANCE – GFX
- 410mm/16.1″
- CABLE ROUTING – BEHIND MOTHERBOARD TRAY
- 19-27mm / 0.74-1.06″
- DUST FILTERS
- Front, Bottom, Top
- POWER SUPPLY SUPPORT
- Bottom mount, ATX
- EAN CODE
- 4719512075067
- UPC CODE
- 884102047558
- SERIES
- MasterBox Series
- SIZE
- Mid Tower
