Application For
Intel
LGA2066/2011-v3/2011/1200/1151/1150/1155/1366
AMD
AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
| Net Weight | 1330 g |

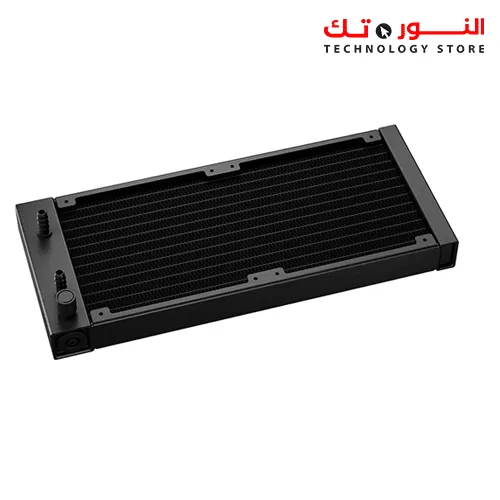

| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 380 mm |

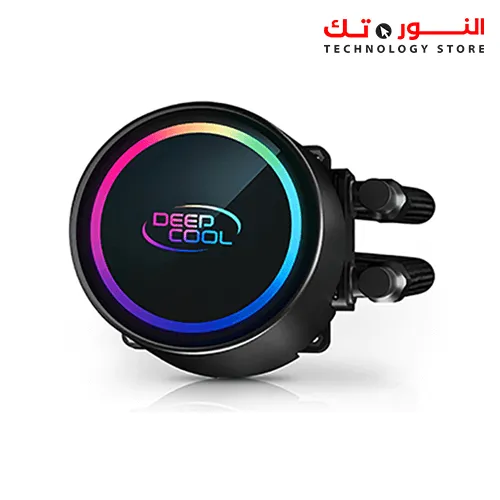

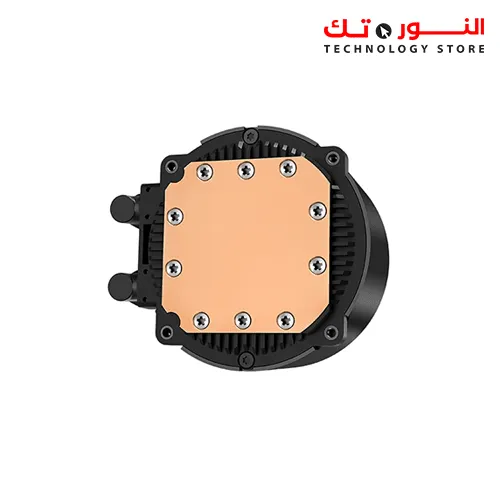

| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |

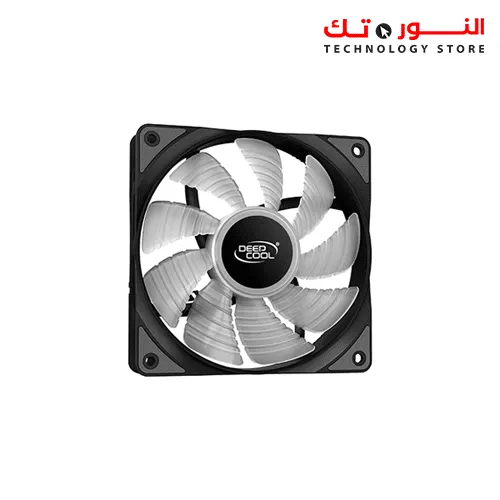

| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Overall Noise | ≤37.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 4.4 W（FAN×2） |
| EAN | 6933412727163 |
| P/N | DP-H12CF-GL240-ARGB |
