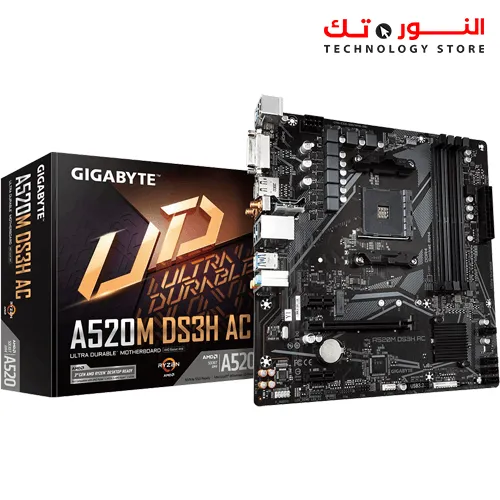

GIGABYTE A520M DS3H AC

Name: GIGABYTE A520M DS3H AC
Brand: جيجا بايت
SKU: 1968
Availability: OutOfStock

1.799,00 EGP

غير متوفر في المخزون

رمز المنتج: 1968 التصنيفات: اللوحة الأم, مكونات كمبيوتر

غير متوفر في المخزون

وسائل دفع آمنه

Model
BRAND	GIGABYTE
MODEL	A520M DS3H AC

Supported CPU
CPU SOCKET TYPE	AM4
CPU TYPE	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors

Chipsets
CHIPSET	AMD A520

Memory
NUMBER OF MEMORY SLOTS	4×288pin
MEMORY STANDARD	DDR4 4733(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3600(OC) / 3333(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (3rd Gen AMD Ryzen with Radeon Graphics processors) DDR4 4400(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 G-series / Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors)
MAXIMUM MEMORY SUPPORTED	128GB
CHANNEL SUPPORTED	Dual Channel

Expansion Slots
PCI EXPRESS 3.0 X16	1 x PCI Express 3.0 x16 * Actual support may vary by CPU.
PCI EXPRESS X1	2 x PCI Express 3.0 x1

Storage Devices
SATA 6GB/S	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID	0/1/10

Onboard Video
ONBOARD VIDEO CHIPSET	Supported only by CPU with integrated graphic

Onboard Audio
AUDIO CHANNELS	7.1 Channels * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

Rear Panel Ports
BACK I/O PORTS	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors (1T1R) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
ONBOARD USB	1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
OTHER CONNECTORS	1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
