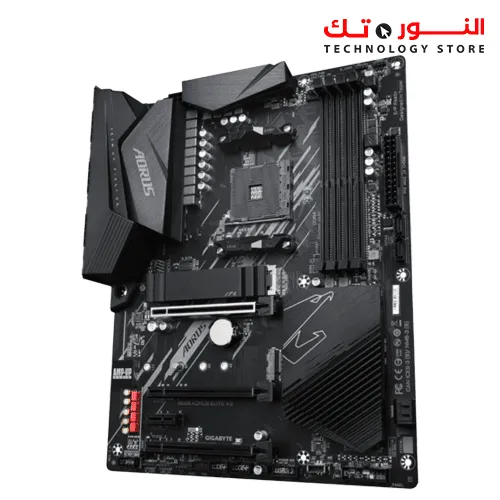

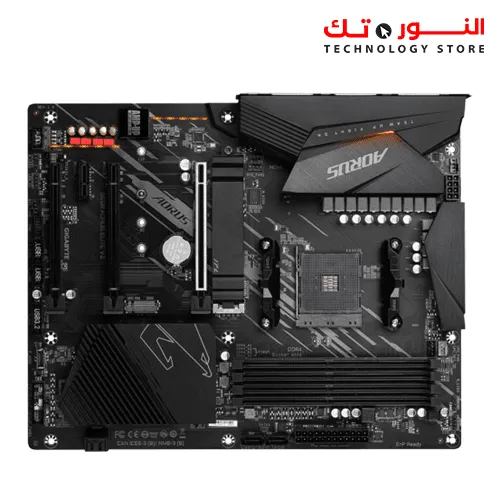

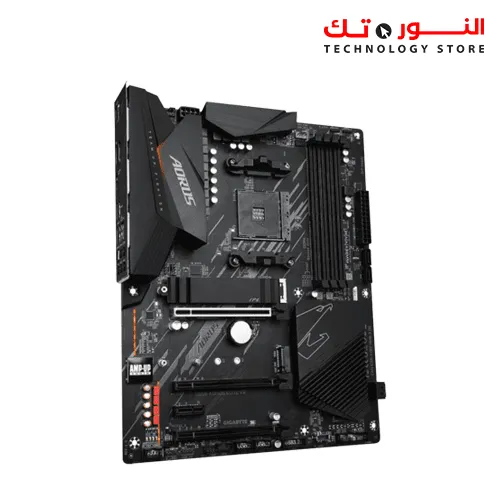

GIGABYTE B550 AORUS ELITE V2
AMD B550 AORUS Motherboard with Twin 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
GIGABYTE B550 AORUS ELITE V2
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

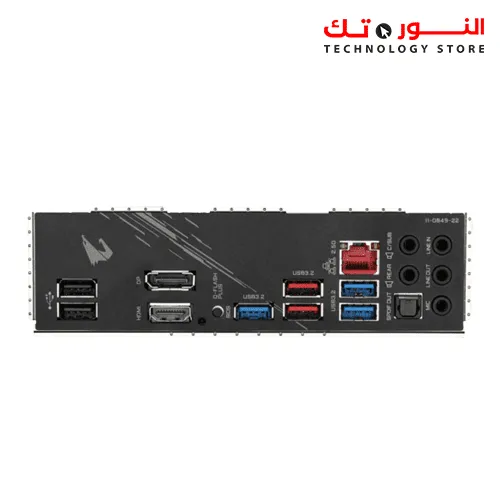

1
DisplayPort
2
HDMI
3
Q-Flash Plus Button
4
2.5 GbE LAN
5
Advanced Thermal Design
- Enlarged Surface Heatsinks
- 5 W/mK Thermal Conductivity Pad
- Pre-installed I/O Shield
6
Audio Solutions
- ALC1200 Audio
- Nichicon Fine Gold Audio Capacitors
- Audiophile Grade WIMA Capacitors
7
RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*3
8
12+2 Phases Digital Twin Power Design with DrMOS
- 50A DrMOS
- Premium Choke and Capacitor
- 2X Copper PCB
9
Dual Channel DDR4, 4 DIMMs
10
Supports 3rd Gen AMD Ryzen™ Processors
11
Solid Pin Power Connectors
- 24 Pin ATX Power Connector
- 8 Pin CPU Power Connector
12
Dual M.2 Connectors
1- 22110 M.2 with Thermal Guard
- PCIe 4.0 M.2 Connector
- NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2- 22110 M.2
- NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)
13
Ultra Durable PCIe Armor
- PCIe 4.0 Slot
- Running 1 x16
14
Front USB 3.2 Gen1 Type-C™
15
Smart Fan 5 + FAN STOP
- 5* Fan / Water Pump Connectors
