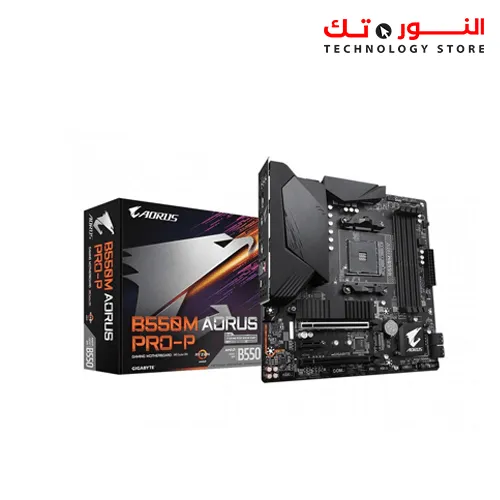

| BRAND | GIGABYTE |
|---|---|
| MODEL | B550M AORUS PRO-P |
| CPU SOCKET TYPE | AM4 |
|---|---|
| CPU TYPE | AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list. |
| CHIPSET | AMD B550 |
|---|
| NUMBER OF MEMORY SLOTS | 4×288pin |
|---|---|
| MEMORY STANDARD | 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules |
| MAXIMUM MEMORY SUPPORTED | 128GB |
| CHANNEL SUPPORTED | Dual Channel |
| PCI EXPRESS 4.0 X16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI EXPRESS 3.0 X16 | 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode |
| PCI EXPRESS X1 | 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| SATA 6GB/S | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| SATA RAID | 0/1/10 |
| ONBOARD VIDEO CHIPSET | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Maximum shared memory of 16GB |
|---|
| AUDIO CHIPSET | Realtek ALC1200 |
|---|---|
| AUDIO CHANNELS | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN CHIPSET | Realtek 2.5GbE LAN chip |
|---|---|
| MAX LAN SPEED | 10/100/1000/2500Mbps |
| BACK I/O PORTS | 4 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| ONBOARD USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| OTHER CONNECTORS | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| FORM FACTOR | Micro ATX |
|---|---|
| LED LIGHTING | RGB |
| DIMENSIONS (W X L) | 9.6″ x 9.6″ |
| POWER PIN | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| FEATURES | I/O Controller: iTE I/O Controller ChipH/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress InstallBundled Software: Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control UtilityOperating System: Support for Windows 10 64-bit |
|---|
