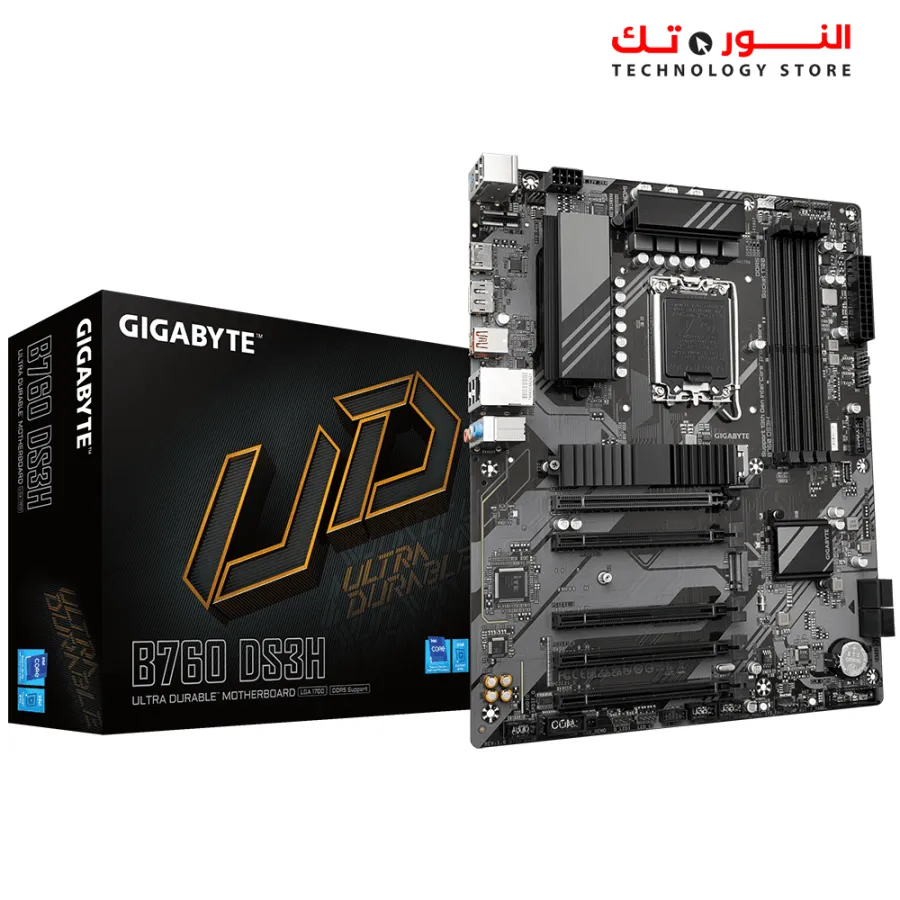

GIGABYTE B760 DS3H DDR5 LGA1700 for the 13th and 12th Generation Intel:   Description of GIGABYTE B760 DS3H DDR5 LGA1700 for the 13th and 12th Generation Intel:

• Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
• Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：GbE LAN
• Extended Connectivity：Rear USB-C^® 20Gb/s, DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel^® B760 Express Chipset
• Memory
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)
• Audio
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
• Storage Interface
  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
  Chipset:

  1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C^® port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  5. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x CPU fan/water cooling pump header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 2 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x serial port header
  19. 1 x Q-Flash Plus button
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI port
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 3 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm



Our Facebook   The GIGABYTE B760 DS3H DDR5 LGA1700 motherboard is designed to support the 13th and 12th generation Intel Core, Pentium Gold, and Celeron processors. It features a hybrid 8+2+1 phases digital VRM solution, providing unparalleled performance and stability for demanding applications and gaming. The motherboard supports dual-channel DDR5 memory with speeds up to 7600MHz (OC) and comes with four DIMM sockets that support up to 192GB of system memory. It also supports Extreme Memory Profile (XMP) memory modules for easy customization and optimization of memory performance. The GIGABYTE B760 DS3H DDR5 LGA1700 provides advanced storage options with two PCIe 4.0 x4 M.2 connectors for CPU-supported NVMe SSDs and four SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support. The motherboard also features an EZ-Latch design on the PCIe x16 slot for quick release and screwless installation. The motherboard provides fast network connectivity with a Realtek GbE LAN chip, and it features multiple temperature sensors, hybrid fan headers with FAN STOP, and smart fan 6 for efficient system cooling. It also comes with Q-Flash Plus, which allows users to update the BIOS without installing the CPU, memory, and graphics card. The GIGABYTE B760 DS3H DDR5 LGA1700 offers extended connectivity options, including a USB Type-C port with USB 3.2 Gen 2x2 support, HDMI, DisplayPort, and four USB 2.0/1.1 ports on the back panel. The motherboard also comes with audio features that support high-definition audio, 2/4/5.1/7.1-channel configurations and S/PDIF Out. Overall, the GIGABYTE B760 DS3H DDR5 LGA1700 is an excellent choice for users who demand high performance and stability from their systems. It offers advanced features and connectivity options, making it a versatile and reliable motherboard for ATX builds.
