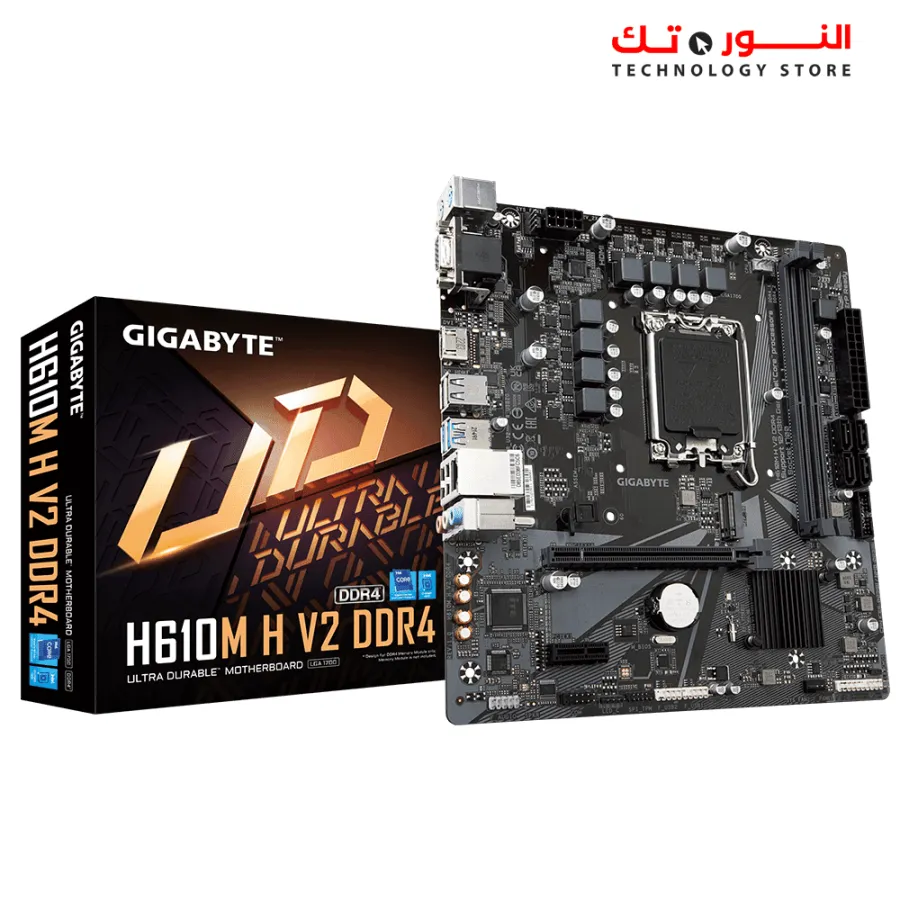

GIGABYTE H610M H V2 DDR4 LGA1700
GIGABYTE H610M H V2 DDR4 LGA1700:
Description Of GIGABYTE H610M H V2 DDR4 LGA1700
- Supports 13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
- CPU
- LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
- Chipset
- Intel® H610 Express Chipset
- Memory
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
- Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- USB
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
* * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
- Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 23.0cm x 21.5cm
Our Facebook
The GIGABYTE H610M H V2 DDR4 LGA1700 is a micro ATX motherboard designed to support 13th and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors. It features a 6+1+1 hybrid digital VRM design, which provides reliable and stable power delivery to the CPU for optimal performance.
The motherboard supports Dual Channel Non-ECC Unbuffered DDR4 memory, with a maximum capacity of 64 GB (32 GB single DIMM capacity), and a memory speed of up to 3200 MHz. It has one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion cards, and it also features an NVMe PCIe 3.0 x4 M.2 slot, providing fast storage options for high-speed NVMe SSDs. Additionally, it has four SATA 6Gb/s connectors for traditional storage devices.
The GIGABYTE H610M H V2 DDR4 LGA1700 motherboard features high-quality audio capacitors and Audio Noise Guard, providing excellent audio quality and minimizing distortion. It also has Smart Fan 6, which features multiple temperature sensors and hybrid fan headers with FAN STOP, allowing for optimal system cooling.
The motherboard has a Realtek GbE LAN chip with bandwidth management, providing fast and stable network connectivity. It has a range of internal and external connectors, including USB 3.2 Gen 1 and USB 2.0/1.1 ports, HDMI and D-Sub ports, audio jacks, and a Trusted Platform Module (TPM) header for added security.
The GIGABYTE H610M H V2 DDR4 LGA1700 also comes with the GIGABYTE APP Center, which provides a simple and easy-to-use interface for managing and optimizing the motherboard’s features and settings. It has a range of unique features, including @BIOS, Ambient LED, EasyTune, Smart Backup, System Information Viewer, and support for Q-Flash and Xpress Install.
Overall, the GIGABYTE H610M H V2 DDR4 LGA1700 is a reliable and feature-rich micro ATX motherboard, providing stable power delivery, fast storage options, excellent audio quality, and efficient system cooling, making it an excellent choice for budget-conscious users looking to build a reliable and efficient system.
