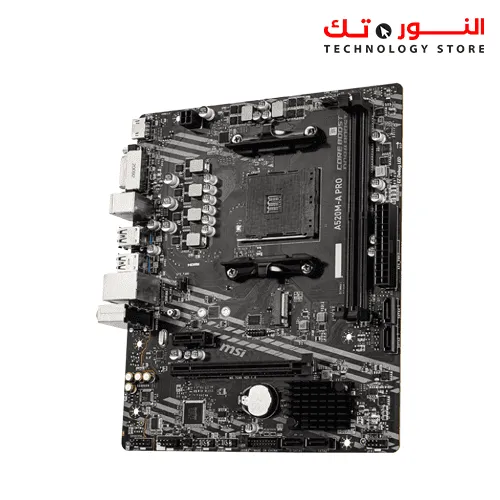

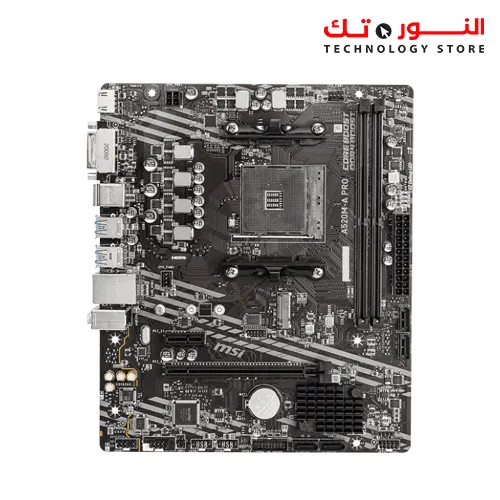

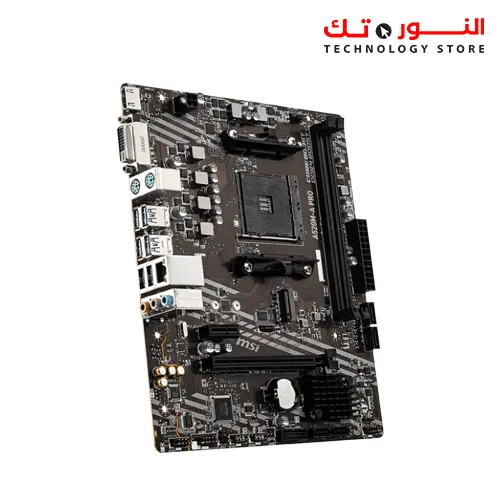

MSI A520M-A PRO

Name: MSI A520M-A PRO
Brand: ام اس اى
SKU: 1638
Availability: InStock

3.099,00 EGP

رمز المنتج: 1638 التصنيفات: اللوحة الأم, مكونات كمبيوتر

وسائل دفع آمنه

Model
BRAND	MSI
MODEL	A520M-A PRO

Supported CPU
CPU SOCKET TYPE	AM4
CPU TYPE	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors

Chipsets
CHIPSET	AMD A520

Memory
NUMBER OF MEMORY SLOTS	2×288pin
MEMORY STANDARD	Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz
MAXIMUM MEMORY SUPPORTED	64GB
CHANNEL SUPPORTED	Dual Channel

Expansion Slots
PCI EXPRESS X16	1 x PCI Express x16
PCI EXPRESS X1	1 x PCIe 3.0 x1 slot

Storage Devices
SATA 6GB/S	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor.
SATA RAID	0/1/10

Onboard Video
ONBOARD VIDEO CHIPSET	Supported only by CPU with integrated graphic: 1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 Maximum shared memory of 16GB 1 Available for the processor with integrated graphics. 2 Graphics specifications may vary depending on the CPU installed.

Onboard Audio
AUDIO CHIPSET	Realtek ALC892
AUDIO CHANNELS	7.1 Channels

Onboard LAN
LAN CHIPSET	Realtek RTL8111H
MAX LAN SPEED	10/100/1000Mbps

Rear Panel Ports

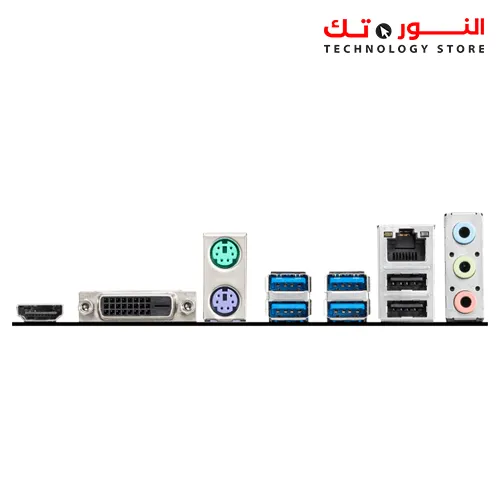

BACK I/O PORTS	1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1

Internal I/O Connectors
ONBOARD USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
OTHER CONNECTORS	1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper

Physical Spec
FORM FACTOR	Micro ATX
DIMENSIONS (W X L)	9.3″ x 7.9″
POWER PIN	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector

Features
FEATURES	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors Supports DDR4 Memory, up to 4600(OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability Audio Boost: Reward your ears with studio grade sound quality Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
