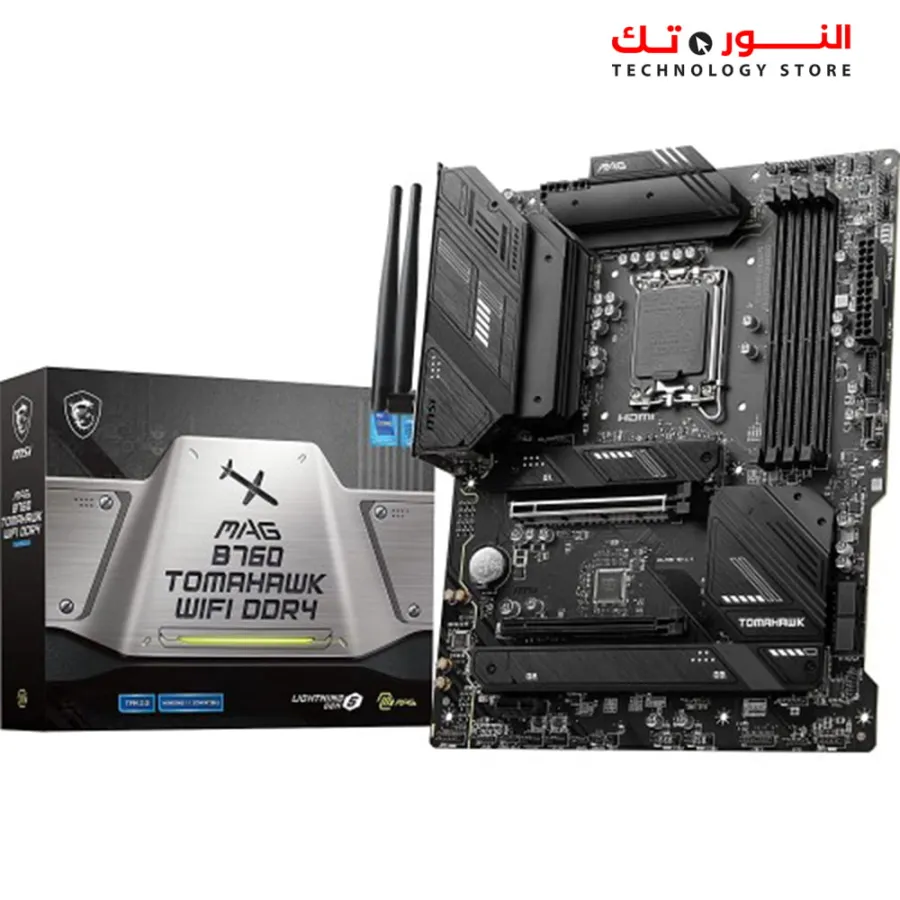

MSI MAG B760 TOMAHAWK WIFI Motherboard LGA 1700 DDR4

MSI MAG B760 TOMAHAWK WIFI Motherboard LGA 1700 DDR4:

Model

Brand	MSI
Model	MAG B760 TOMAHAWK WIFI DDR4

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset	Intel B760

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: - 1DPC 1R Max speed up to 5333+ MHz - 1DPC 2R Max speed up to 4800+ MHz - 2DPC 1R Max speed up to 4400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) * Please refer to www.msi.com for more information on compatible memory

Expansion Slots

PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x4	1 x PCI Express 3.0 x4
PCI Express x1	1 x PCI Express 4.0 x1

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3 x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices M2_3* slot (From B760 chipset) - Supports up to PCIe 4.0 x4 - Supports up to SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices * SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot.
SATA RAID	0/1/5/10

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	7.1-Channel High Definition Audio

Onboard LAN

LAN Chipset	Realtek RTL8125BG-CG 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E
Bluetooth	Bluetooth 5.3

Rear Panel Ports

Back I/O Ports	4 x USB 2.0 Type-A ports (From Hub GL850G) 1 x DisplayPort port 1 x HDMI port 1 x 2.5Gbps LAN (RJ45) jack 4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub) 1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset) 2 x Wi-Fi Antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector

Internal I/O Connectors

Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset) 1 x USB 3.2 Gen 1 5Gbps connector (From B760 chipset) - Support additional 2 USB 3.2 Gen 1 5Gbps ports 2 x USB 2.0 Type-A connectors (From B760 chipset) - Supports additional 4 USB 2.0 ports
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Tuning Controller connector 1 x TBT connector (Supports RTD3)

Physical Spec

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	2 x 4-pin RGB LED connectors 2 x 3-pin ARGB Gen2 LED connectors 4 x EZ Debug LED

Windows Compatibility

Windows 11	Supported

  Our Facebook   The MSI MAG B760 TOMAHAWK WIFI is a high-performance motherboard designed for the LGA 1700 CPU socket. It is compatible with a range of processors, including Celeron, Intel Core 12th Gen, Intel Core 13th Gen, and Pentium Gold. With an Intel B760 chipset, this motherboard offers excellent stability and reliability for your system. When it comes to memory, the MAG B760 TOMAHAWK WIFI supports up to 128GB of DDR4 RAM across its four memory slots. It operates at a standard frequency of DDR4 3200, but it also provides overclocking capabilities. Depending on the configuration, you can achieve impressive speeds like 5333+ MHz in 1DPC 1R mode or 4000+ MHz in 2DPC 2R mode. The motherboard supports dual-channel mode and Intel Extreme Memory Profile (XMP) for easy memory optimization. In terms of expansion slots, this motherboard features a PCI Express 5.0 x16 slot, a PCI Express 3.0 x4 slot, and a PCI Express 4.0 x1 slot. It also offers ample storage options, including four SATA 6Gb/s ports and three M.2 slots. The M.2 slots support various storage devices, ranging from PCIe 4.0 x4 to SATA 6Gb/s, and are compatible with different sizes like 2242, 2260, and 2280. For audio, the MAG B760 TOMAHAWK WIFI is equipped with a Realtek ALC897 audio chipset, delivering 7.1-channel high-definition audio. It also features a Realtek RTL8125BG-CG 2.5Gbps LAN controller for fast and reliable networking. Additionally, it comes with Intel Wi-Fi 6E and Bluetooth 5.3 support, offering wireless connectivity options. The rear panel ports include USB 2.0 and USB 3.2 Gen 2 Type-A ports, a DisplayPort, an HDMI port, a 2.5Gbps LAN port, Wi-Fi antenna connectors, audio jacks, and an optical S/PDIF Out connector. Internally, there are additional USB connectors, fan connectors, a front panel audio connector, and various other connectors for system configuration. With its ATX form factor, the MSI MAG B760 TOMAHAWK WIFI motherboard fits most standard-sized computer cases. It also supports Windows 11, ensuring compatibility with the latest operating system. Overall, this motherboard provides a robust foundation for a powerful and versatile PC build, combining performance, connectivity, and expandability.
