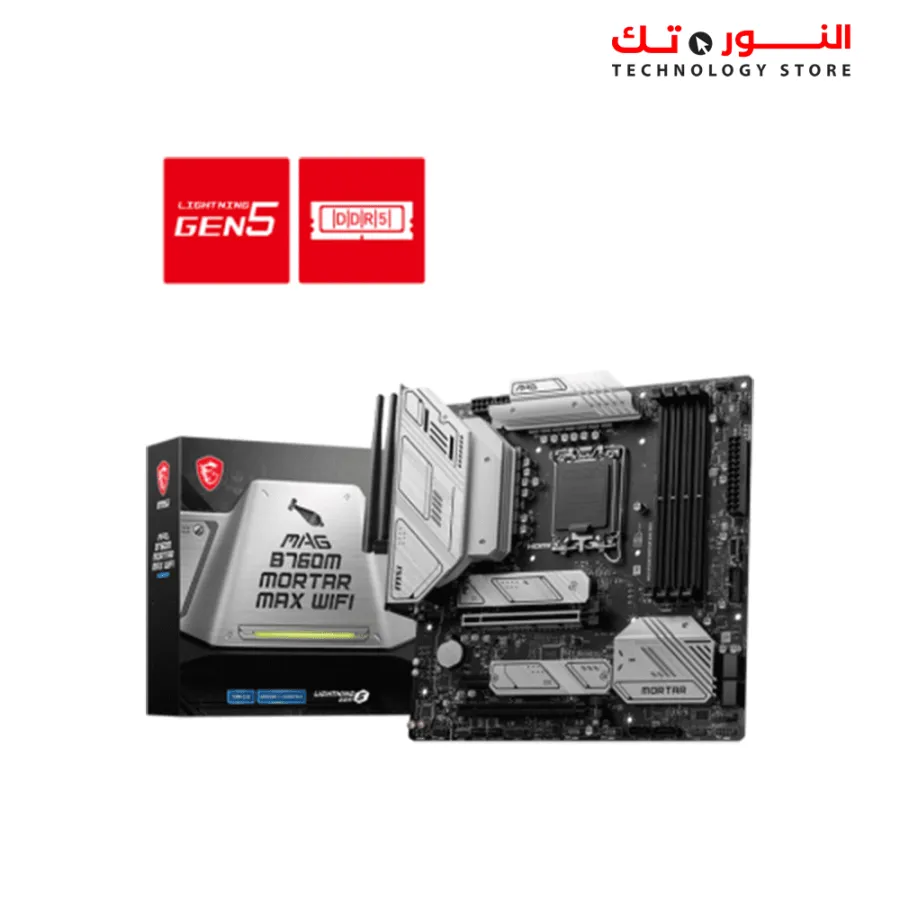

MSI MAG B760M MORTAR MAX WIFI Motherboard LGA 1700 DDR5
MSI MAG B760M MORTAR MAX WIFI Motherboard LGA 1700 DDR5:
CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode MSI MAG B760M MORTAR:
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS 1x HDMI™
Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, the maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices*
* SATA_A1_A2 does not support the RAID function.
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC897 Codec
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
USB 2.0
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 3.2 Gen 2×2 20Gbps Type-C
Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION mATX
243.84mmx243.84mm
Our Facebook
The MSI MAG B760M MORTAR MAX WIFI is a compact motherboard designed for Intel processors with an LGA1700 socket. It supports high-speed DDR5 memory and offers excellent connectivity options, including HDMI and DisplayPort for graphics, USB ports for peripherals, and Wi-Fi 6E for wireless networking. The motherboard also features convenient expansion slots, efficient cooling options, and advanced audio capabilities. Overall, it provides a reliable foundation for building a powerful and feature-rich computer system.
In terms of graphics, the motherboard offers 1 HDMI 2.1 port with HDR support, providing a maximum resolution of 4K at 60Hz. It also includes 1 DisplayPort 1.4, which can achieve a maximum resolution of 8K at 60Hz. The availability of these ports depends on the CPU installed, as the graphics specifications may vary.
For expansion, the MSI MAG B760M MORTAR MAX WIFI provides 2 PCIe x16 slots (x16/x4), 1 PCIe x1 slot, and M.2 slots for storage devices. The M.2_1 slot, sourced from the CPU, supports PCIe 4.0 x4 and 2280/2260/2242 devices. The M.2_2 slot, sourced from the chipset, supports PCIe 4.0 x4 or SATA mode and the same M.2 device sizes. Additionally, the motherboard has 6 SATA 6G ports for traditional storage drives.
The motherboard offers a range of USB ports, including 4 USB 2.0 ports at the rear, 4 USB 2.0 ports at the front, 2 USB 3.2 Gen1 Type-A ports at the front, 3 USB 3.2 Gen2 Type-A ports at the rear, 1 USB 3.2 Gen2 Type-C port at the front, and 1 USB 3.2 Gen2x2 Type-C port at the rear.
Networking capabilities include a Realtek 2.5Gbps LAN port for wired connectivity and Intel Wi-Fi 6E for wireless connectivity. The Wi-Fi module is pre-installed in the M.2 (Key-E) slot and supports MU-MIMO TX/RX with speeds up to 2.4Gbps. It also supports various Wi-Fi standards, including 802.11 a/b/g/n/ac/ax, and Bluetooth 5.3 for wireless communication.
The motherboard is equipped with a Realtek ALC897 audio codec, providing 7.1-channel USB high-performance audio. It supports S/PDIF output for digital audio connectivity.
Additional features include various internal I/O connectors, such as power connectors, fan connectors, front panel connectors, RGB LED connectors, USB ports, and more. The motherboard also includes 4 EZ Debug LED indicators for troubleshooting purposes.
On the back panel, you can find USB 2.0 ports, a DisplayPort 1.4, a USB 3.2 Gen2 10Gbps Type-A port, a 2.5G LAN port, Wi-Fi/Bluetooth antenna connectors, HD audio connectors, an HDMI 2.1 port, a USB 3.2 Gen2x2 20Gbps Type-C port, and an optical S/PDIF out port.
The MSI MAG B760M MORTAR MAX WIFI supports operating systems such as Windows 11 64-bit and Windows 10 64-bit. The PCB (printed circuit board) dimension of the motherboard is mATX, measuring 243.84mm x 243.84mm.
