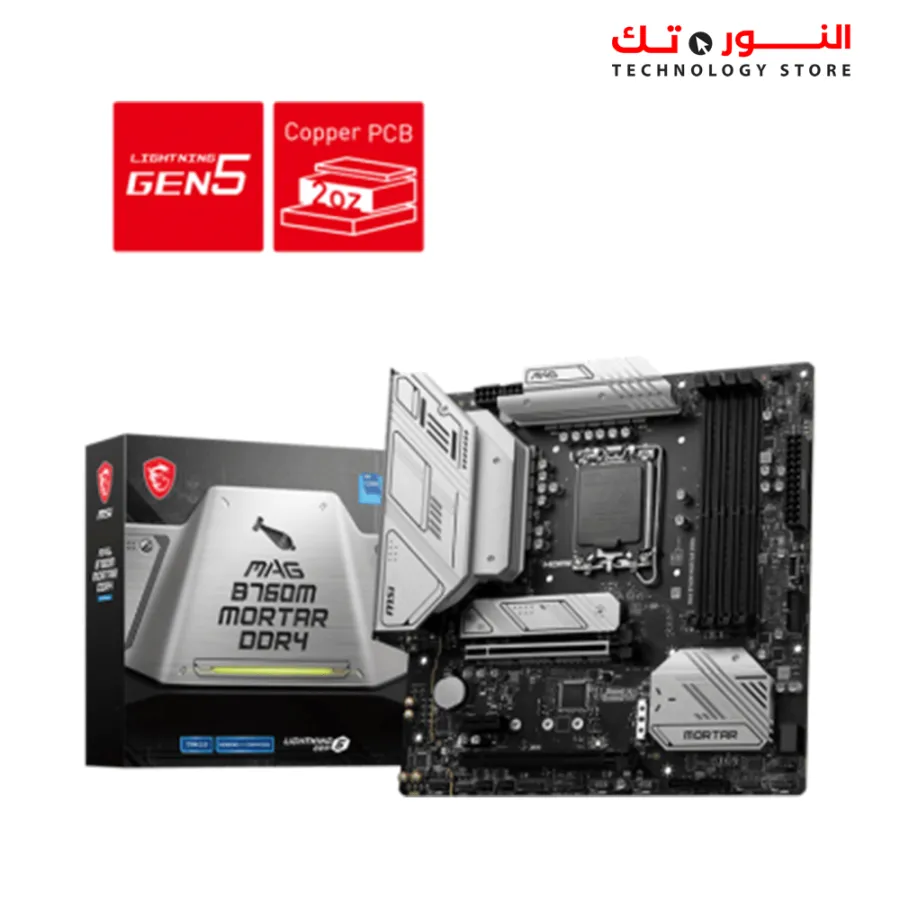

MSI MAG B760M MORTAR Motherboard LGA 1700 DDR4

MSI MAG B760M MORTAR Motherboard LGA 1700 DDR4:

CHIPSET	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700
MEMORY	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
AUDIO	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION	mATX 243.84mmx243.84mm

  Our Facebook   The MSI MAG B760M MORTAR is a motherboard designed for LGA 1700 socket, which supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors. It features an mATX form factor with dimensions of 243.84mm x 243.84mm. Memory support on this motherboard includes 4 DDR4 slots with a maximum capacity of 128GB. The supported memory speeds are as follows:

• Overclocking frequencies: 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)
• JEDEC frequencies: 3200/ 2933/ 2666/ 2400/ 2133 MHz

The motherboard supports dual-channel mode and non-ECC unbuffered memory. It also supports Intel Extreme Memory Profile (XMP) for easy memory overclocking. For onboard graphics, the MSI MAG B760M MORTAR provides 1 HDMI 2.1 port (supporting up to 4K 60Hz resolution) and 1 DisplayPort 1.4 (supporting up to 4K 60Hz resolution). Please note that the availability and specifications of the graphics outputs may vary depending on the installed CPU, as integrated graphics are required for these ports to function. In terms of expansion slots, the motherboard offers 2 PCI-E x16 slots (supporting x16/x4), 1 PCI-E x1 slot, and additional slots with different generations and speeds for various peripheral devices. Storage options on this motherboard include 2 M.2 slots, with M.2_1 sourced from the CPU supporting PCIe 4.0 x4 and M.2_2 sourced from the chipset supporting PCIe 4.0 x4 or SATA mode. Additionally, there are 4 SATA 6G ports available for storage devices. RAID 0, RAID 1, RAID 5, and RAID 10 configurations are supported for SATA storage devices. The motherboard offers a variety of USB ports, including 4 USB 2.0 ports on the rear, 4 USB 2.0 ports on the front, 2 USB 3.2 Gen1 Type-A ports on the front, 3 USB 3.2 Gen2 Type-A ports on the rear, 1 USB 3.2 Gen2 Type-C port on the front, and 1 USB 3.2 Gen2x2 Type-C port on the rear. For network connectivity, the MSI MAG B760M MORTAR includes a Realtek 2.5Gbps LAN controller. The audio solution is powered by the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio with support for S/PDIF output. The motherboard also features various internal connectors for power, fans, front panel, audio, RGB LED, USB, and more. It includes 4 EZ Debug LEDs for troubleshooting. On the rear panel, you'll find additional ports including USB 2.0, DisplayPort 1.4, USB 3.2 Gen2 10Gbps Type-A, 2.5G LAN port, HD Audio connectors, HDMI 2.1 port, USB 3.2 Gen2x2 20Gbps Type-C, and an optical S/PDIF out port.
