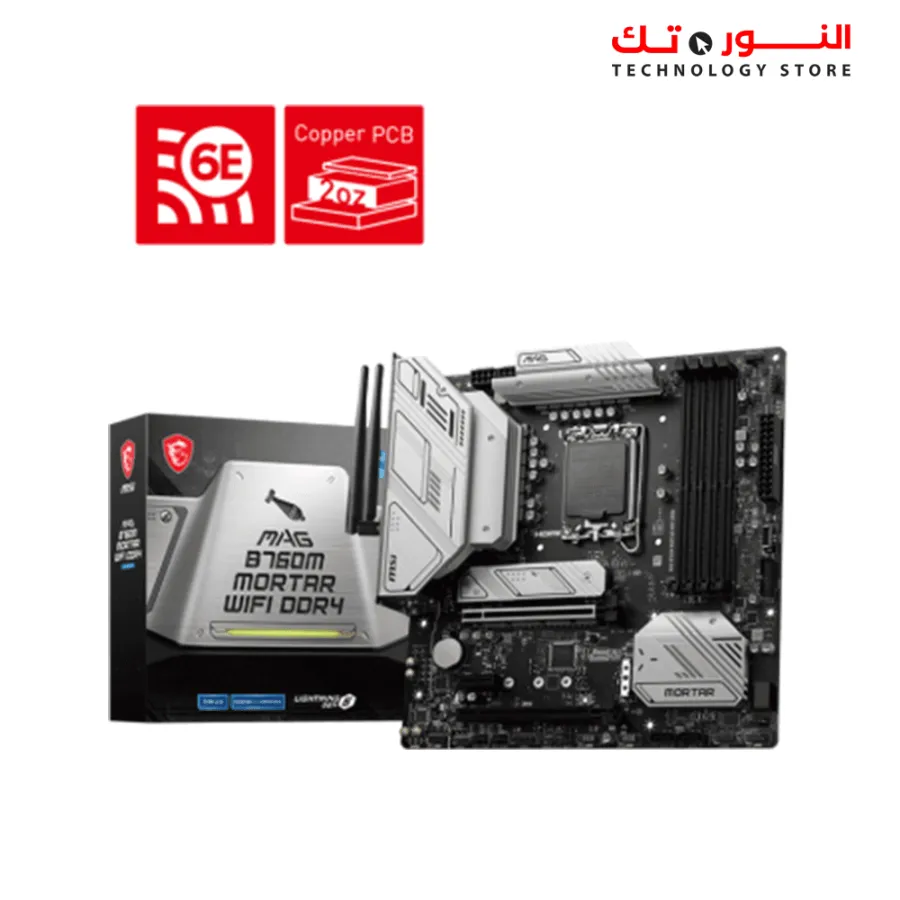

MSI MAG B760M MORTAR WIFI Motherboard LGA 1700 DDR4
MSI MAG B760M MORTAR WIFI Motherboard LGA 1700 DDR4:
CHIPSET | INTEL B760 |
---|---|
CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
MEMORY | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Realtek® 2.5Gbps LAN |
WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 4x EZ Debug LED |
BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | mATX 243.84mmx243.84mm |
Our Facebook
The MSI MAG B760M MORTAR WIFI is a motherboard designed for the LGA 1700 socket and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors. It features a micro-ATX form factor with dimensions of 243.84mm x 243.84mm.
Memory-wise, the motherboard has 4 DDR4 DIMM slots that can support a maximum memory capacity of 128GB. It supports various memory speeds, including overclocked frequencies up to 5333MHz (OC) for 1DPC 1R configuration, 4800MHz (OC) for 1DPC 2R, 4400MHz (OC) for 2DPC 1R, and 4000MHz (OC) for 2DPC 2R. It also supports dual-channel mode, non-ECC, un-buffered memory, and Intel Extreme Memory Profile (XMP).
For graphics, the motherboard provides 1 HDMI 2.1 port and 1 DisplayPort, both supporting a maximum resolution of 4K at 60Hz. The availability and specifications of the graphics ports depend on the CPU installed, as integrated graphics are required.
In terms of expansion slots, it has 2 PCI-E x16 slots, 1 PCI-E x1 slot, and support for PCI_E1 Gen PCIe 5.0 x16 (from CPU), PCI_E2 Gen PCIe 3.0 x1 (from Chipset), and PCI_E3 Gen PCIe 4.0 x4 (from Chipset).
Storage options include 2 M.2 slots, with M.2_1 sourced from the CPU and supporting PCIe 4.0 x4 and M.2_2 sourced from the chipset supporting PCIe 4.0 x4 or SATA mode. Additionally, there are 4 SATA 6G ports available, and the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations for SATA storage devices.
The motherboard provides various USB ports, including 4 USB 2.0 ports on the rear, 4 USB 2.0 ports on the front, 2 USB 3.2 Gen1 Type-A ports on the front, 3 USB 3.2 Gen2 Type-A ports on the rear, 1 USB 3.2 Gen2 Type-C port on the front, and 1 USB 3.2 Gen2x2 Type-C port on the rear.
For networking, it features a Realtek 2.5Gbps LAN and Intel Wi-Fi 6E module with support for MU-MIMO TX/RX and various Wi-Fi standards (802.11 a/b/g/n/ac/ax) and Bluetooth 5.3.
The audio capabilities of the motherboard are powered by the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio.
Additional internal I/O connectors include power connectors, fan connectors, front panel connectors, chassis intrusion, front audio, TBT connector, tuning controller connector, addressable RGB LED connectors, RGB LED connector, TPM pin header, and USB ports.
The motherboard includes LED features such as 4 EZ Debug LEDs, which help diagnose booting issues.
On the back panel, you can find USB 2.0 and USB 3.2 Gen2 ports, DisplayPort, HDMI, 2.5G LAN, audio connectors, Wi-Fi/Bluetooth antennas, USB 3.2 Gen2x2 Type-C port, and an optical S/PDIF out.
The MSI MAG B760M MORTAR WIFI motherboard supports Windows 11 64-bit and Windows 10 64-bit operating systems.
