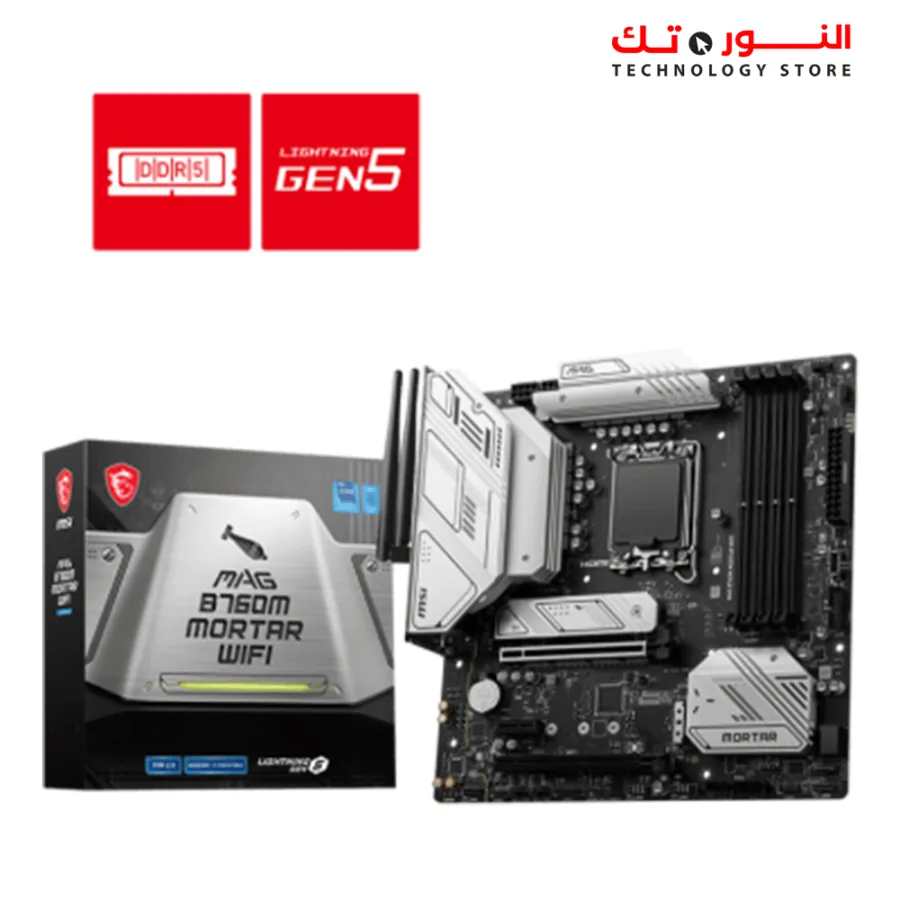

MSI MAG B760M MORTAR WIFI Motherboard LGA 1700 DDR5
CHIPSET | INTEL B760 |
---|---|
CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700 |
MEMORY | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Realtek® 2.5Gbps LAN |
WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 4x EZ Debug LED |
BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | mATX 243.84mmx243.84mm |
Our Facebook
The MSI MAG B760M MORTAR WIFI is a motherboard designed for Intel processors and is compatible with 12th and 13th Gen Intel Core processors, Pentium Gold, and Celeron processors that utilize the LGA1700 socket. It supports the latest DDR5 memory technology with four DDR5 slots, allowing for a maximum memory capacity of 192GB.
In terms of memory support, the motherboard offers a wide range of frequencies, ranging from 4800MHz up to overclocked speeds of 7000+MHz (depending on the configuration). It supports dual-channel mode, non-ECC un-buffered memory, and Intel Extreme Memory Profile (XMP) for easy memory overclocking.
For graphics connectivity, the motherboard features one HDMI 2.1 port and one DisplayPort 1.4 port, which can provide a maximum resolution of 4K at 60Hz. However, it’s important to note that the availability of these ports and the graphics specifications depend on the CPU installed, as not all processors feature integrated graphics.
In terms of expansion slots, the motherboard offers two PCI-E x16 slots that support x16/x4 configurations, one PCI-E x1 slot, and multiple M.2 slots. The M.2_1 slot, sourced from the CPU, supports PCIe 4.0 x4 and is compatible with 2280/2260/2242 devices. The M.2_2 slot, sourced from the chipset, supports both PCIe 4.0 x4 and SATA modes and is also compatible with 2280/2260/2242 devices. Additionally, there are four SATA 6G ports available for traditional storage devices.
The MSI MAG B760M MORTAR WIFI provides a range of USB ports, including USB 2.0 and USB 3.2 Gen1 Type A ports on both the rear and front panels. It also offers USB 3.2 Gen2 Type A and Type C ports on the rear panel, including a USB 3.2 Gen2x2 Type C port with a maximum transfer rate of 20Gbps.
For networking, the motherboard includes a Realtek 2.5Gbps LAN port and an Intel Wi-Fi 6E module that supports MU-MIMO TX/RX and operates on 2.4GHz, 5GHz, and 6GHz (160MHz) frequency bands, delivering speeds up to 2.4Gbps. It also supports various Wi-Fi and Bluetooth standards.
The audio features of the motherboard include the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio and support for S/PDIF output.
In terms of internal I/O connectors, the motherboard offers various power connectors, fan connectors, front panel connectors, addressable RGB LED connectors, USB ports, and more. It also includes LED features such as four EZ Debug LEDs for troubleshooting purposes.
On the back panel, the motherboard provides USB 2.0 and USB 3.2 Gen2 Type-A ports, DisplayPort 1.4 and HDMI 2.1 ports for video output, a 2.5G LAN port, Wi-Fi/Bluetooth antenna connectors, HD audio connectors, an S/PDIF optical output, and a USB 3.2 Gen2x2 Type-C port.
The MSI MAG B760M MORTAR WIFI motherboard is compatible with Windows 11 64-bit and Windows 10 64-bit operating systems. It features a micro-ATX form factor, measuring 243.84mmx243.84mm.
Overall, this motherboard offers a range of features, including support for the latest CPU and memory technologies, ample expansion options, high-speed connectivity, and reliable audio and networking capabilities. It is
