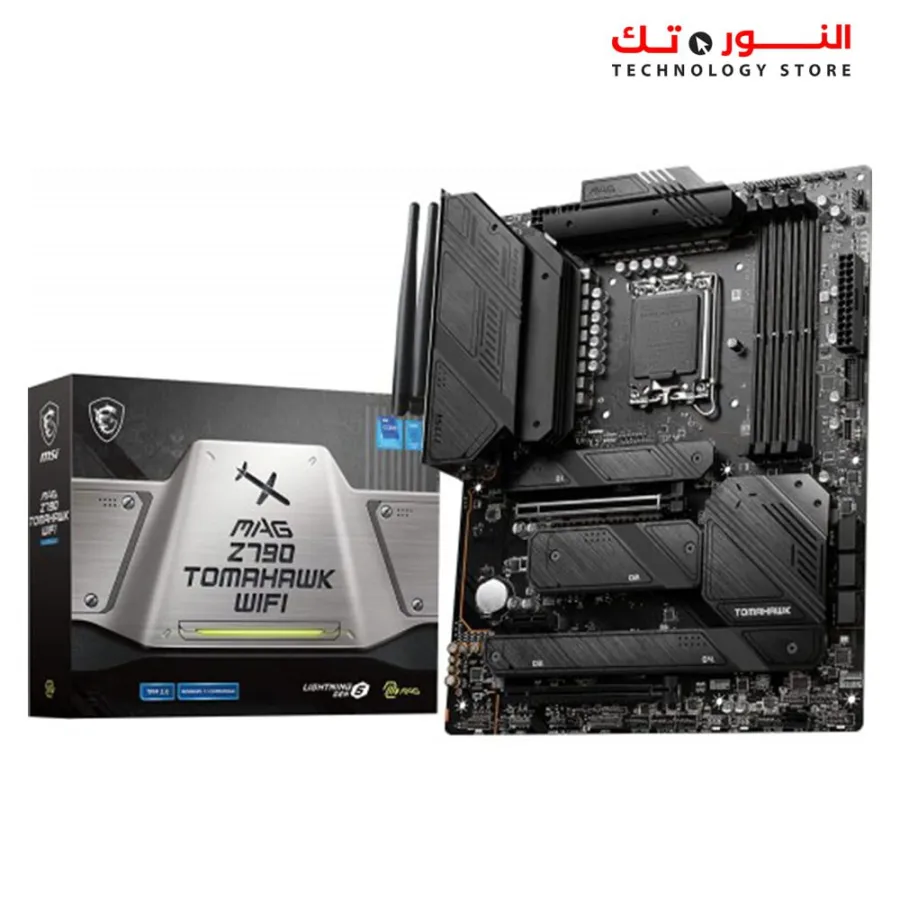

MSI MAG Z790 Tomahawk WiFi Motherboard LGA 1700 DDR5:
|Model||MAG Z790 TOMAHAWK WIFI|
|CPU Socket Type||LGA 1700|
|CPU Type||Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors|
|Number of Memory Slots||4x288pin (DDR5)|
|Memory Standard||Supports 1R 5600 MHz (by JEDEC & POR)|
– 1DPC 1R Max speed up to 6800+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
|Maximum Memory Supported||192GB|
|Channel Supported||Dual Channel|
|PCI Express 5.0 x16||PCI_E1 slot (From CPU)|
– Supports up to PCIe 5.0 x16
|PCI Express 4.0 x16||PCI_E3 slot (From Z790 Chipset)|
– Supports up to PCIe 4.0 x4
|PCI Express x1||PCI_E2 slot (From Z790 Chipset)|
– Supports up to PCIe 3.0 x1
|SATA 6Gb/s||7x SATA 6Gb/s ports|
– SATA_1& SATA_5_6& SATA_7_8 (From Z790 chipset)
– SATA_A1_A2 (From ASM1061)
|M.2||1 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT)|
4x M.2 slots (Key M)
M2_1 slot (From CPU)
* SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
|Audio Chipset||Realtek ALC4080|
|Audio Channels||7.1 Channels|
|LAN Chipset||1x Intel 2.5Gbps LAN controller|
|Max LAN Speed||2.5Gbps|
|Wireless LAN||Intel Wi-Fi 6E|
– The Wireless module is pre-installed in the M.2 (Key-E) slot
– Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
– Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
|Bluetooth||Supports Bluetooth 5.2*, FIPS, FISMA|
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
|Back I/O Ports||1x DisplayPort|
1x HDMI port
1x Clear CMOS button
1x Flash BIOS button
4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523)
4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset)
1x 2.5Gbps LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x Audio jacks
1x Optical S/PDIF Out connector
|Onboard USB||1x USB 3.2 Gen 2 10Gbps Type-C front panel connector (From Z790 chipset)|
1x USB 3.2 Gen 1 5Gbps connector (From Hub GL3523)
– Support additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub GL850G)
– Supports additional 4 USB 2.0 ports
|Other Connectors||Fan Connectors|
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectorsSystem Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)Jumpers
1x Clear CMOS jumper
1x OC force enter BIOS jumper (Supports lower PCIe mode)
|Dimensions (W x L)||12.0″ x 9.6″|
|Power Pin||1x 24-pin ATX main power connector|
2x 8-pin +12V power connectors
The MSI MAG Z790 Tomahawk WiFi Motherboard is a high-performance motherboard designed to support Intel’s LGA 1700 socket processors and DDR5 memory. It belongs to the MAG (Military-grade Gaming) series, which is known for its durability, stability, and gaming-focused features.
Here are some key features and specifications of the MSI MAG Z790 Tomahawk WiFi Motherboard:
- Socket: LGA 1700 – This motherboard is compatible with Intel’s latest generation processors designed for the LGA 1700 socket. This ensures compatibility with the latest Intel CPUs.
- Memory: DDR5 – The motherboard supports the next-generation DDR5 memory technology. DDR5 provides increased bandwidth and improved performance compared to DDR4, making it ideal for demanding tasks such as gaming, content creation, and heavy multitasking.
- Expansion Slots: The motherboard features multiple expansion slots, including PCIe 5.0 x16 slots for high-speed graphics cards and PCIe 4.0 x1 slots for additional add-in cards like sound cards or network adapters.
- Storage: It offers multiple storage options, including SATA 6Gb/s ports and M.2 slots. These allow you to connect traditional SATA drives and ultra-fast NVMe SSDs, providing flexibility and high-speed storage solutions.
- Connectivity: The motherboard comes with built-in WiFi, allowing you to connect to wireless networks without the need for an additional adapter. It also includes Gigabit Ethernet for stable wired connections and supports Bluetooth technology for wireless peripheral connectivity.
- Audio: The motherboard features high-quality audio components and supports 7.1-channel HD audio, providing an immersive sound experience for gaming and multimedia applications.
- Cooling: MSI’s Tomahawk series motherboards typically come with advanced cooling solutions. This model likely includes features such as enhanced heatsinks, fan headers, and support for liquid cooling systems to help keep your system cool during intense gaming sessions.
- Aesthetics: The MAG Z790 Tomahawk WiFi motherboard often incorporates a stylish design with customizable RGB lighting options, allowing you to personalize the appearance of your system.
Overall, the MSI MAG Z790 Tomahawk WiFi Motherboard is a feature-rich and high-performance motherboard that offers compatibility with Intel’s latest processors, DDR5 memory support, and a range of gaming-centric features, making it suitable for gamers, enthusiasts, and content creators who require a powerful and reliable platform.
