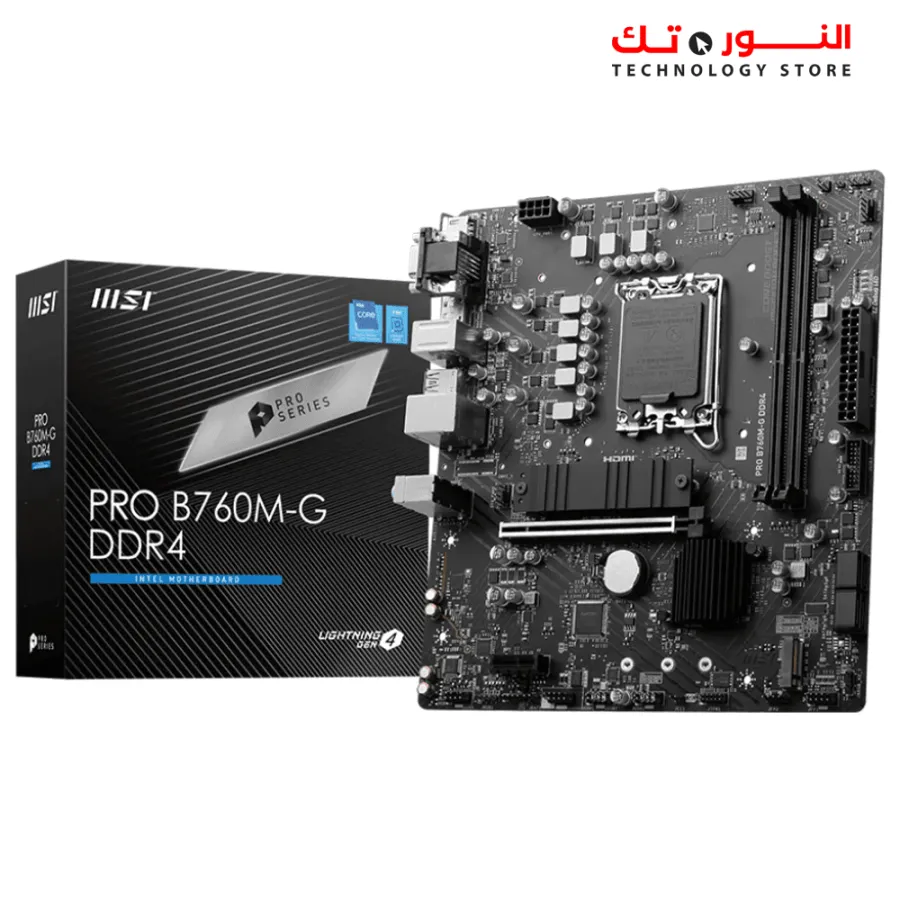

MSI PRO B760M-G DDR4 Motherboard LGA 1700 DDR4
MSI Pro B760M-G DDR4 Motherboard LGA 1700 DDR4:
Description MSI Pro B760M-G DDR4 Motherboard LGA 1700 DDR4:
- Brand: MSI
- Model: Pro B760M-G DDR4
- CPU Support: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Display Interface: HDMI 2.1- VGA – DisplayPort 1.4
- Memory Support: 2 DIMMs, Dual Channel DDR4-4800+MHz(OC)
- Expansion Slots: 1x PCIe 4.0 x16 slot – 1x PCIe 4.0 x1 slot
- Storage: 2x M.2 Gen4 x4 64Gbps slots – 4x SATA 6Gbps ports
- USB Ports: 6x USB 3.2 Gen 1 5Gbps (6 Type-A) – 6x USB 2.0
- LAN: Realtek RTL8125B 2.5G LAN
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Warranty:3 Years With Warranty Of The Authorize Agent
Our Facebook
The MSI Pro B760M-G DDR4 is a motherboard designed for high-performance desktop systems. It supports 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron processors, utilizing the LGA 1700 CPU socket.
The motherboard features the Intel B760 chipset, which provides efficient communication between the CPU, memory, and other components. It offers multiple display interface options, including HDMI 2.1, VGA, and DisplayPort 1.4, allowing you to connect compatible monitors or displays.
For memory support, the motherboard has 2 DIMM slots, enabling dual-channel DDR4 memory configurations. It supports speeds of up to DDR4-4800+MHz (with overclocking), ensuring fast and responsive system performance.
In terms of expansion slots, it includes a PCIe 4.0 x16 slot for installing a high-speed graphics card or other expansion cards, as well as a PCIe 4.0 x1 slot for additional peripherals.
The storage options on the MSI Pro B760M-G DDR4 motherboard include 2 M.2 Gen4 x4 64Gbps slots, suitable for ultra-fast NVMe solid-state drives, and 4 SATA 6Gbps ports, allowing you to connect traditional hard drives or SSDs.
In terms of connectivity, the motherboard offers 6 USB 3.2 Gen 1 5Gbps ports (all Type-A) for high-speed data transfer and 6 USB 2.0 ports for connecting peripherals. It also includes a Realtek RTL8125B 2.5G LAN for fast and reliable wired networking.
The audio capabilities of the motherboard are delivered through an 8-channel (7.1) HD Audio system with Audio Boost, providing high-quality sound output for an immersive audio experience.
MSI offers a 3-year warranty on the Pro B760M-G DDR4 motherboard when purchased from an authorized agent, ensuring peace of mind and support in case of any issues or defects.
