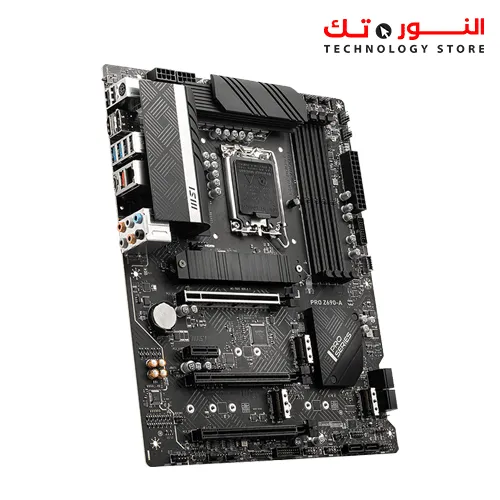

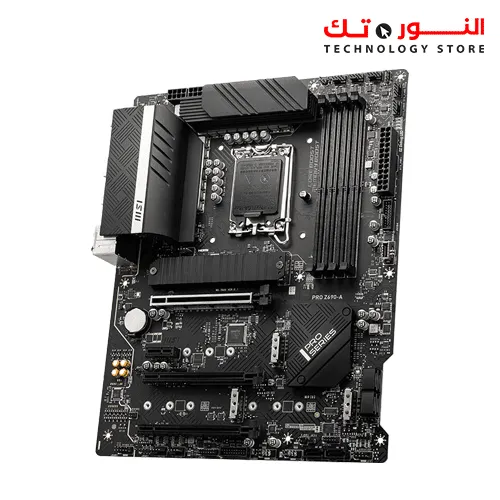

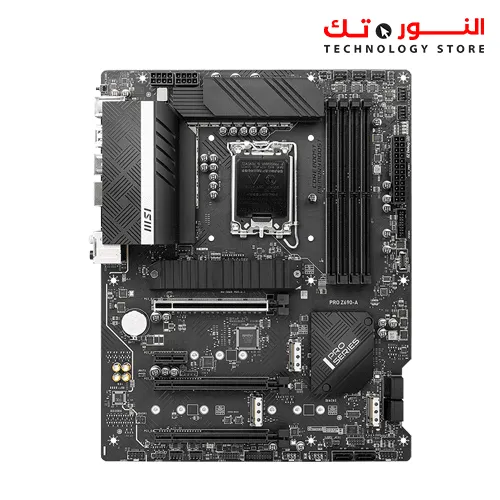

MSI PRO Z690-A DDR5 LGA 1700

Name: MSI PRO Z690-A DDR5 LGA 1700
Brand: ام اس اى
SKU: 1886
Price: 5150.00 EGP
Availability: OutOfStock

⁦5.150,00 EGP⁩

غير متوفر

اطلب من خلال الواتساب

رمز المنتج: 1886

التصنيفات:مكونات كمبيوتر,اللوحة الأم

MSI PRO Z690-A DDR5 LGA 1700

العلامة التجاريه	ام اس اى
العلامه التجاريه	ام اس اى
نوع اللوحة الأم	انتيل
نوع سوكيت المعالج	LGA 1700
شريحة اللوحة الأم	Z690

وسائل دفع آمنة

جميع الشحنات مؤمنة ضد الكسر
شحن فوري خلال ٢٤ ساعة
معاينة قبل الاستلام وفرز كل قطعة

الوصف

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

PRO Z690-A

PREMIUM THERMAL SOLUTION

Extended Heatsink

MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

PRO Z690-A

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E solution with up to 128GB/s bandwidth for maximum transfer speed.

PRO Z690-A

EXCLUSIVE FEATURE

Core Boost Technology

Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO Z690-A

PREMIUM THERMAL SOLUTION

Extended Heatsink

MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

PRO Z690-A

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E solution with up to 128GB/s bandwidth for maximum transfer speed.

PRO Z690-A

EXCLUSIVE FEATURE

Core Boost Technology

Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

PCI-E Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO Z690-A

PREMIUM THERMAL SOLUTION

Extended Heatsink

MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

COOLING

DESIGN

COMPATIBILITY

RELIABLE COMPONENTS

EXTENDED HEATSINK DESIGN
M.2 SHIELD FROZR
FULLY FAN CONTROL
FROZR AI COOLING
PUMP FAN READY

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.

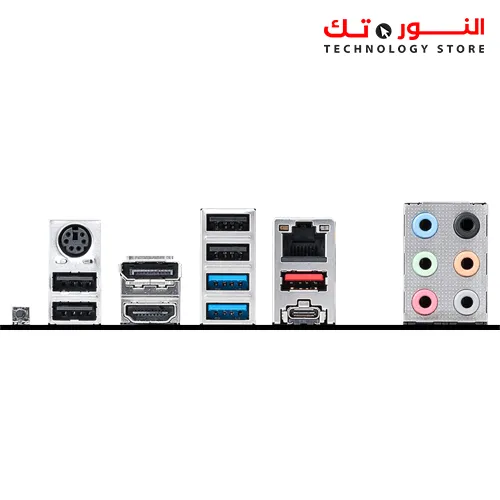

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

LAN

LIGHTNING SPEED

USB

OTHER EXPANSION

2.5G LAN
LAN MANAGER

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

PERFORMANCE

AUDIO

BIOS & SOFTWARE

SECURITY

POWER DESIGN
DDR5
SMT SLOT
CORE BOOST

14 + 1 +1 POWER DESIGN

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.

2x 8-Pin

CPU Power connectors
14

Duet Rail CPU Power System Smart Power Stage / 55A
1 phase

AUX Power
1 phase
GT Power
Digital PWM IC
Load-line Calibration
Overvoltage Protection

PRO Z690-A

Supports 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400+(OC) MHz
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
