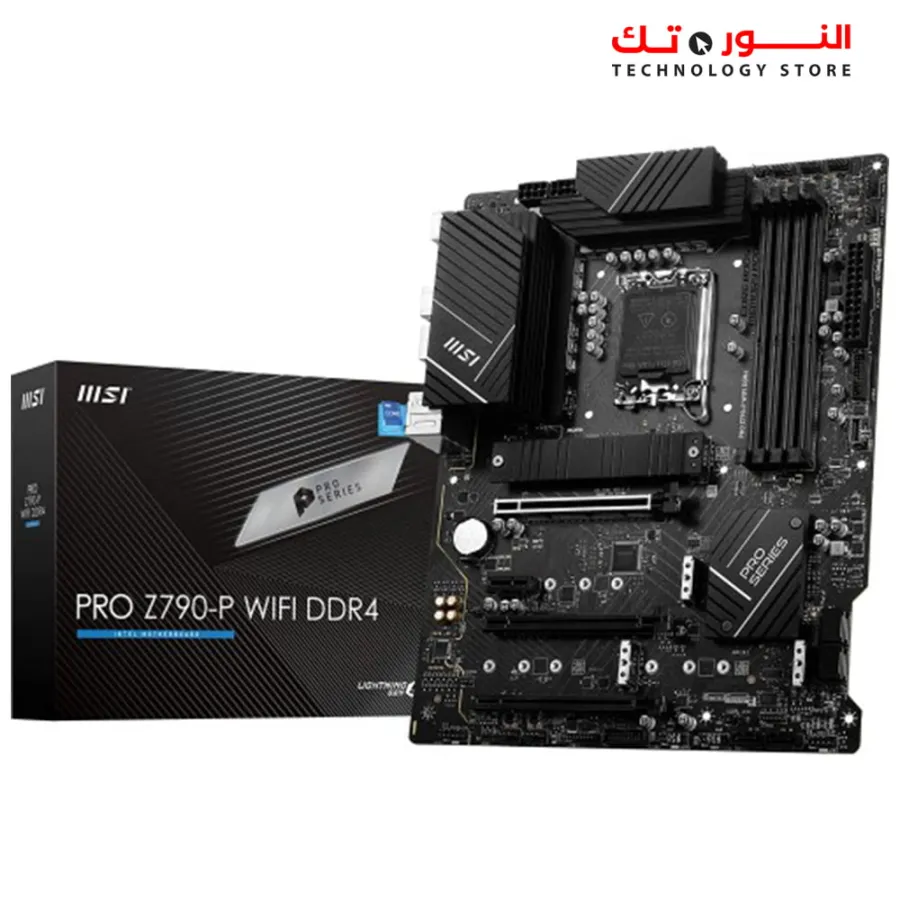

MSI PRO Z790-P WIFI Motherboard LGA 1700 DDR4
MSI PRO Z790-P WIFI Motherboard LGA 1700 DDR4:
Brand | MSI |
---|---|
Model | PRO Z790-P WIFI DDR4 |
CPU Socket Type | LGA 1700 |
---|---|
CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
Chipset | Intel Z790 |
---|
Number of Memory Slots | 4x288pin (DDR4) |
---|---|
Memory Standard | Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Maxoverclocking frequency: Supports Dual-Channel mode |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 5.0 x16 | PCI_E1 slot (From CPU) – Supports up to PCIe 5.0 x16 |
---|---|
PCI Express 4.0 x16 | PCI_E3 slot (From Z790 chipset) – supports up to PCIe 4.0 x4 |
PCI Express 3.0 x16 | PCI_E4 slot (From Z790 chipset) – supports up to PCIe 3.0 x1 |
PCI Express x1 | 1x PCIe x1 slot (From Z790 chipset) – PCI_E2 supports up to PCIe 3.0 x1 |
SATA 6Gb/s | 6x SATA 6Gb/s ports (From Z790 chipset) |
---|---|
M.2 | 1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) |
SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices |
Audio Chipset | Realtek ALC897 |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | 1x Intel 2.5Gbps LAN controller |
---|---|
Max LAN Speed | 2.5Gbps |
Wireless LAN | Intel Wi-Fi 6E – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
Bluetooth | Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
Back I/O Ports | 1x Flash BIOS button 1x PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) 1x DisplayPort 1x HDMI port 1x LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi Antenna connectors 6x Audio jacks |
---|
Onboard USB | 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) – Supports additional 4 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) – Supports additional 4 USB 2.0 ports |
---|---|
Other Connectors | Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectorsSystem Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)Jumpers 1x Clear CMOS jumper LED Features |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0″ x 9.6″ |
Power Pin | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors |
Windows 11 | Supported |
---|
Our Facebook
The MSI PRO Z790-P WIFI DDR4 is a high-performance motherboard designed for the 13th and 12th generation Intel Core processors. With its LGA 1700 CPU socket, it offers support for Intel Pentium Gold and Celeron processors as well. Powered by the Intel Z790 chipset, this motherboard provides excellent performance and reliability for demanding tasks.
When it comes to memory, the MSI PRO Z790-P offers four DDR4 memory slots, supporting a maximum of 128GB of RAM. It supports memory frequencies ranging from 2133MHz to 3200MHz, and with overclocking, it can achieve even higher speeds. The motherboard supports dual-channel mode, non-ECC, un-buffered memory, and Intel Extreme Memory Profile (XMP).
In terms of expansion slots, the PRO Z790-P features a PCI Express 5.0 x16 slot, capable of supporting up to PCIe 5.0 x16 devices. It also has a PCI Express 4.0 x16 slot and a PCI Express 3.0 x16 slot, along with a PCIe x1 slot for additional expansion. This motherboard provides ample storage options with six SATA 6Gb/s ports and four M.2 slots, supporting various storage devices and RAID configurations.
The onboard audio is powered by the Realtek ALC897 chipset, delivering 7.1 channel surround sound. For networking, the PRO Z790-P offers a 2.5Gbps LAN controller and Intel Wi-Fi 6E, ensuring fast and reliable wired and wireless connections. It also supports Bluetooth 5.2.
With a range of rear panel ports, including USB ports, DisplayPort, HDMI, LAN, and audio jacks, the motherboard provides convenient connectivity options. Internally, it offers multiple USB connectors, fan connectors, and various system connectors.
The MSI PRO Z790-P WIFI DDR4 features an ATX form factor with RGB LED lighting, providing an aesthetically pleasing design. With its powerful features, extensive connectivity options, and compatibility with Windows 11, the PRO Z790-P is an excellent choice for users seeking a reliable and high-performance motherboard for their Intel-based system.
