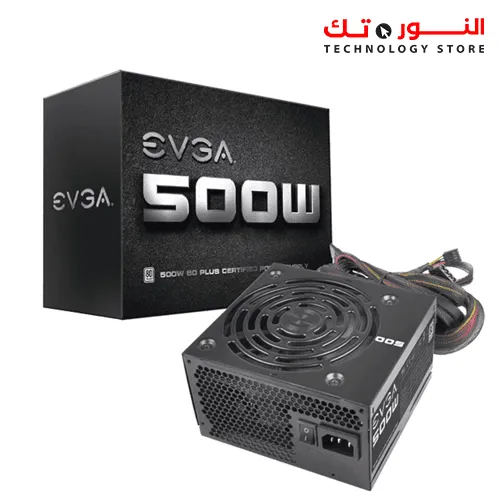

Power Supply EVGA 500 W1, 80+ WHITE 500W, 100-W1-0500-K2 (EU)

CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm (f)
Floppy Adapter 1x 120mm
AC Power 1x 1200mm (m)
Modular Cable Type No
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
INPUT
Input Voltage 100 – 240 VAC
AC Input 8-4A
Input Frequency Range 50 – 60 Hz
Efficiency 80% Typical
OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 20A 40A 0.3A 3A
40A
120W 480W 3.6W 15W
Total 500W @ +40C
ADDITIONAL DETAILS
Operating Temperature 0° to 40° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 3 lbs
Size 85mm (H) x 0mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Sleeve Bearing
UPC 843368029975
EAN 4250812404671
