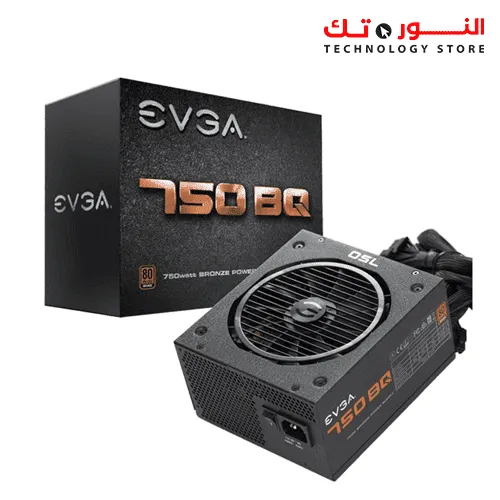

Introducing the next generation in value; the EVGA BQ Series. These power supplies take some of the best features from EVGA’s award winning power supply lineup, like a 140mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.
CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 2x 600mm
PCIe Cable 3x 550mm, 700mm
SATA Cable 3x 500mm, 650mm, 800mm
Four-Pin Peripheral Cable 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy)
Floppy Adapter 1x
AC Power 1x 1800mm
Modular Cable Type Semi-Modular
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 2x8pin(4+4)
PCIe 3x
SATA 9x
Four-Pin Peripheral 5x
Floppy 1x
INPUT
Input Voltage 100 – 240 VAC
AC Input 10A
Input Frequency Range 50 – 60 Hz
Efficiency 85% Typical
OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 24A 20A 62A 0.3A 3A
62A
150W 744W 3.6W 15W
Total 750W @ +40C
ADDITIONAL DETAILS
Operating Temperature 0° to 40° C
Japanese Capacitors Main PCB
ECO Mode No
MTBF 100,000 Hours
Net Weight 5 lbs
Size 85mm (H) x 150mm (W) x 165mm (L)
Approvals TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 140mm Teflon Nano-Steel Bearing
UPC 843368036683
EAN 4250812409881
