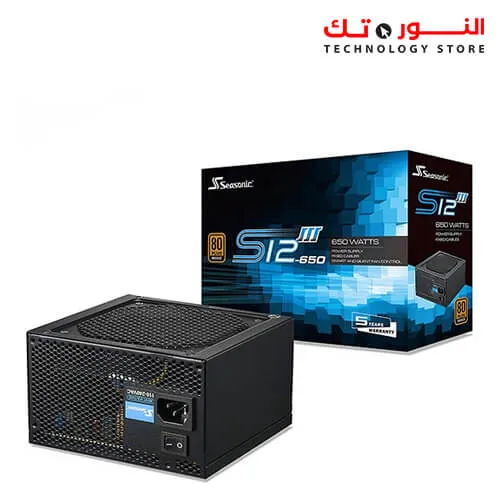

S12III SERIES
The S12III Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12III units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
For customers in the EU, the scheduled launch of the S12III series is Q3 2019*. For more information about product availability, please contact your local Seasonic representative.
* Subject to change without prior notice.
- ATX 12 V
- Fixed cables
- 80 PLUS Bronze Certified
- 5 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
OVERVIEW
80 PLUS®BRONZE
The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.
The 80 PLUS® Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonic’s Bronze Series is an economical choice with great performance and high built-in value.
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Seasonic S2FC | |
| Fan Bearing | Sleeve bearing | |
| Life Expectancy | 30,000 hours at 40 °C, 15 % – 65 % RH | |
| Cable Information | Modularity | Fixed cable |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, REACH | |
