Teamed Power Stages
16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering power and efficiency that the latest Intel processors can take full advantage of.
خصم-7%
ASUS ROG STRIX Z690-A GAMING WIFI D4
اسوسغير متوفر
1
رمز المنتج: 2280
التصنيفات:مكونات كمبيوتر,اللوحة الأم

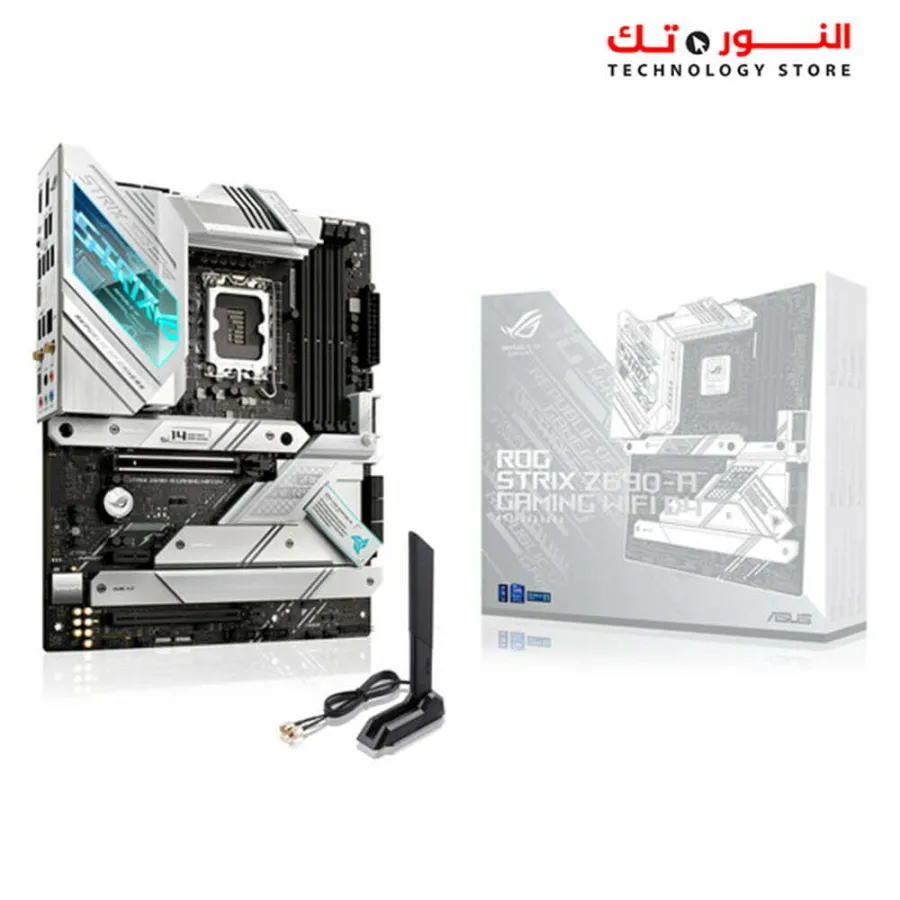

ASUS ROG STRIX Z690-A GAMING WIFI D4
| العلامة التجاريه | اسوس |
|---|---|
| العلامه التجاريه | اسوس |
| نوع اللوحة الأم | انتيل |
| نوع سوكيت المعالج | LGA 1700 |
| شريحة اللوحة الأم | Z690 |
وسائل دفع آمنة
- جميع الشحنات مؤمنة ضد الكسر
- شحن فوري خلال ٢٤ ساعة
- معاينة قبل الاستلام وفرز كل قطعة
الوصف
/product-category/pc/motherboard/ROG STRIX Z690-A GAMING WIFI D4
Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ Processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
- Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
- High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Awards
Gold
The ROG Strix Z690-A Gaming WiFi D4 comes in a refreshing, bright color combination and also shows its best side in terms of equipment.
Excellent
The ASUS ROG Strix Z690-A Gaming Wifi D4 has a striking, mostly white appearance and offers quite a bit extra compared to cheaper motherboards.
BEST PERFORMANCE
ASUS ROG STRIX Z690-A GAMING WIFI D4 is a mid-range gaming motherboard based on the new Z690 chipset, supporting DDR4 RAM, PCIe 5.0 support, and a full-featured Intel® Wi-Fi 6. Good for gamer and creator, also able to overclock.
BEST INNOVATION
ASUS ROG STRIX Z690-A GAMING WIFI D4 is a mid-range gaming motherboard based on the new Z690 chipset, supporting DDR4 RAM, PCIe 5.0 support, and a full-featured Intel® Wi-Fi 6. Good for gamer and creator, also able to overclock.
Alza Gold Award
This board is the best and highest model from ASUS with DDR4 support. And given the pricing, availability, persistent birth pains and especially given the measured performance of previous and current generation RAM, I dare say it's the best motherboard for 12th generation Intel processors.
Alza Gold Award
For a really good motherboard with DDR4 support, which was great in clocking and tuning both CPU and RAM, I give our highest award, the Alza Gold Award.Video Reviews
PC full white and very strong, what is hot? GVN Phantom Plus i3070 White ROG STRIX Z690-A GAMING WIFI D4
100 million BUILD PC Watercooling Snow White Configuration VIP Core i9 12900k + RTX 3080 + 32GB RAM | ROG STRIX Z690-A GAMING WIFI D4
Let's explore PC Gaming segment of 100 million (White) build
WHEN ROG IN A LIAN LI CASE
UNIQUE PC "GUARDIANS OF THE GALAXY" WITH MANUAL AEROGRAPHY
It has a powerful processor power subsystem and a huge number of functional heatsinks.
Media Reviews
hardware-helden.de
The ROG Strix Z690-A Gaming WiFi D4 comes in a refreshing, bright color combination and also shows its best side in terms of equipment.
Tweakers.net
The ASUS ROG Strix Z690-A Gaming Wifi D4 has a striking, mostly white appearance and offers quite a bit extra compared to cheaper motherboards.
DOS/V POWER REPORT
Self-made, games and hobby days
Reviewing the ASUS ROG STRIX Z690-A GAMING WIFI D4, a Z690 motherboard with DDR4 memory and a PCIE unlock switch
www.vmodtech.com
ASUS ROG STRIX Z690-A GAMING WIFI D4 is a mid-range gaming motherboard based on the new Z690 chipset, supporting DDR4 RAM, PCIe 5.0 support, and a full-featured Intel® Wi-Fi 6. Good for gamer and creator, also able to overclock.
Alza.cz
This board is the best and highest model from ASUS with DDR4 support. And given the pricing, availability, persistent birth pains and especially given the measured performance of previous and current generation RAM, I dare say it's the best motherboard for 12th generation Intel processors.
Alza.sk
For a really good motherboard with DDR4 support, which was great in clocking and tuning both CPU and RAM, I give our highest award, the Alza Gold Award.ROG STRIX Z690-A GAMING WiFi D4
The ROG Strix Z690-A Gaming WiFi D4 motherboard deploys robust power delivery and cooling to unleash the full force of 12th Gen or 13th Gen Intel® Core™ processors, all orchestrated by ASUS-exclusive intelligent controls that deliver advanced user experiences. Meanwhile, onboard WiFi 6 and ample PCIe® 4.0 M.2 slots bring the speed that you need, and DIY-friendly innovations help simplify the PC building process. To top it all off, Strix Z690-A Gaming WiFi D4 dazzles with customizable RGB lighting and a refined brushed-metal finish.
- Performance
- Cooling
- Gaming Immersion
- Connectivity
Built for Performance Gaming
- INTEL® LGA 1700 SOCKET FOR 13TH GEN INTEL® CORE™ PROCESSORS AND 12TH GEN INTEL® CORE™, PENTIUM® GOLD, AND CELERON® PROCESSORS
- Expansion Slots
- 1 x PCIe 5.0 x16 SafeSlot (x16) [CPU]
-
- 1 x PCIe 3.0 x16 slot (x4) [CHIPSET]
- 1 x PCIe 3.0 x1 slot [CHIPSET]
- 16+1 Power Stages
- 4 x DIMM
DDR4 5333 (O.C.) +
- Dual channel
- Optimem III
- 4 x M.2 Slots
- 1 x M.2 2242-22110 (PCIe 4.0 x4 from CPU)
- 1 x M.2 2242-2280 (PCIe 4.0 x4 from PCH)
- 1 x M.2 2242-22110 (PCIe 4.0 x4 from PCH)
- 1 x M.2 2242-2280 (PCIe 4.0 x4 & SATA from PCH)
All-round Performance
ROG Strix Z690-A Gaming WiFi D4 provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancelation ensures crystal-clear in-game communication. ROG Strix Z690-A Gaming WiFi D4 is armed with all the essentials required to create a gaming PC with top-tier performance.- Power Design
- Cooling
- Intelligent Control
LEADING CONNECTIVITIY
ROG Strix Z690-A Gaming WiFi D4 delivers wickedly fast connectivity for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.- Storage & Memory
- Networking
- Audio
PCIe Performance
With four strategically placed M.2 slots, ROG Strix Z690-A Gaming WiFi D4 takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe® Gen 4.0 SSDs, lightning-fast Intel NVM Express® RAID, and high-capacity drives that blaze past traditional SATA-based storage.PLAY IN STYLE
Pair ROG Strix Z690-A Gaming WiFi D4 with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.- Customization
- DIY Friendly
- Certified Compatibility
- ID Design
- Aura Sync
- 2D
- 3D
Undeniably ROG Strix
A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.- Optimization
- Audio Effect
- AIDA64
- Armoury Crate
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- ADVANCED MODE
MemTest86 Pre-Installed
- EZ MODE
MemTest86
For added convenience, MemTest86 has been pre-installed into ROG UEFI (BIOS) Run the test to pinpoint memory issues with just one click, without the need for any USB stick or going into the OS. The memory report will also be stored in the BIOS archives for reference. MORE ADVANCED MODE FEATURES >>5-Way Optimization
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- TPU INSIGHT
- EPU Guidance
- FAN XPERT 4
- Digi+ Power Controls
- Turbo App
The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings.
