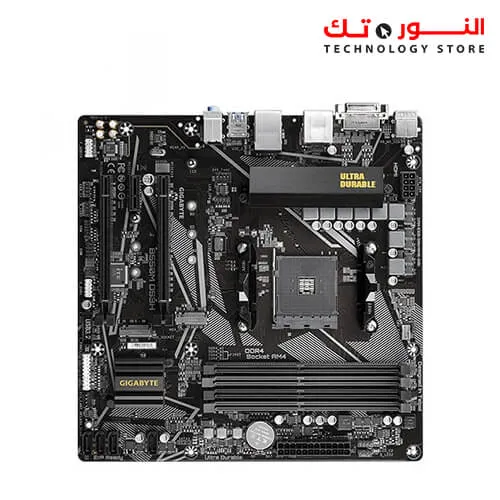

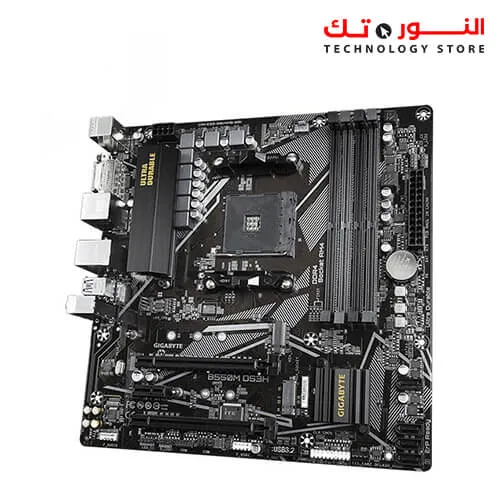

GIGABYTE B550M DS3H AM4 AMD B550 MICRO-ATX MOTHERBOARD

Model

Brand

GIGABYTE

Model

B550M DS3H

Supported CPU

CPU Socket Type

AM4

CPU Type

AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 3rd Generation AMD Ryzen with Radeon Graphics processors

Chipsets

Chipset

AMD B550

Memory

Number of Memory Slots

4×288pin

Memory Standard

3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 4.0 x16

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

PCI Express 3.0 x16

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode

PCI Express x1

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16GB

Onboard Audio

Audio Chipset

Realtek ALC887

Audio Channels

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

Onboard LAN

LAN Chipset

Realtek GbE LAN chip

Max LAN Speed

10/100/1000Mbps

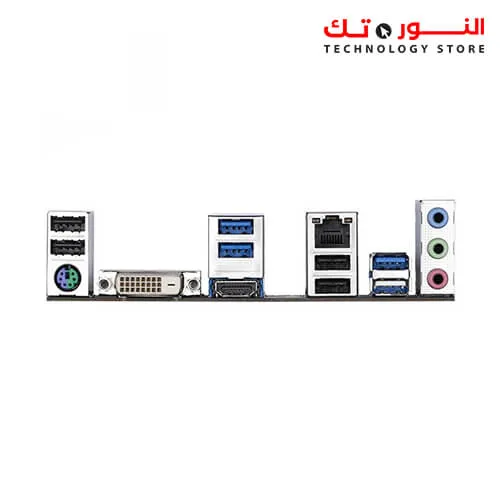

Rear Panel Ports

Back I/O Ports

1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header

Other Connectors

1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Physical Spec

Form Factor

Micro ATX

LED Lighting

RGB

Dimensions (W x L)

9.6″ x 9.6″

Power Pin

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features

Features

I/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
