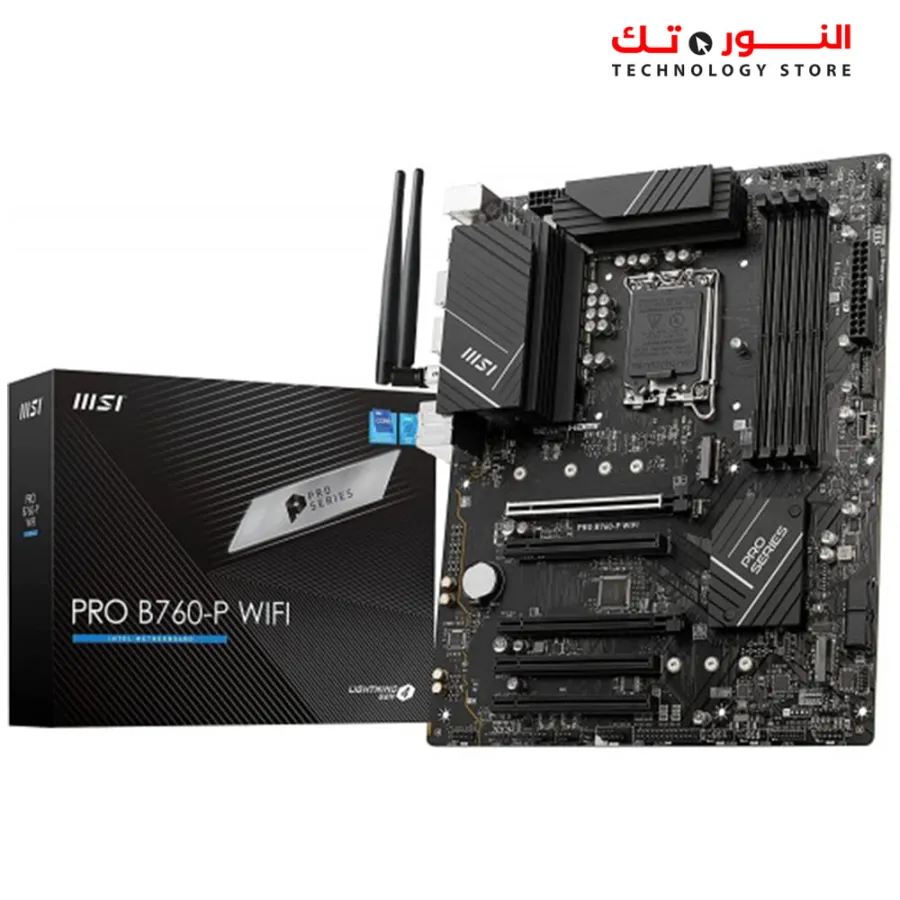

MSI PRO B760-P WIFI Motherboard LGA 1700 DDR5
MSI PRO B760-P WIFI Motherboard LGA 1700 DDR5:
Brand | MSI |
---|---|
Part Number | PRO B760-P WIFI |
CPU Socket Type | LGA 1700 |
---|---|
CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
Chipset | Intel B760 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Memory Feature | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
---|---|
PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 |
PCI Slots | 5 x PCI Slots |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | 2 x M.2 |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek ALC897 |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Realtek® RTL8125BG 2.5G LAN |
---|---|
Max LAN Speed | 2.5Gbps |
Wireless LAN | 802.11 a/ b/ g/ n/ ac/ ax |
Bluetooth | Bluetooth® 5.3, FIPS, FISMA |
Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
---|---|
PS/2 | 1 |
HDMI | 1 x HDMI |
DisplayPort | 1 x DisplayPort |
USB 1.1/2.0 | 4 x USB 2.0 |
Form Factor | ATX |
---|
Our Facebook
The MSI PRO B760-P WIFI is an ATX motherboard designed for the LGA 1700 CPU socket and supports various CPU types, including Celeron, Intel Core 12th Gen, Intel Core 13th Gen, and Pentium Gold processors.
