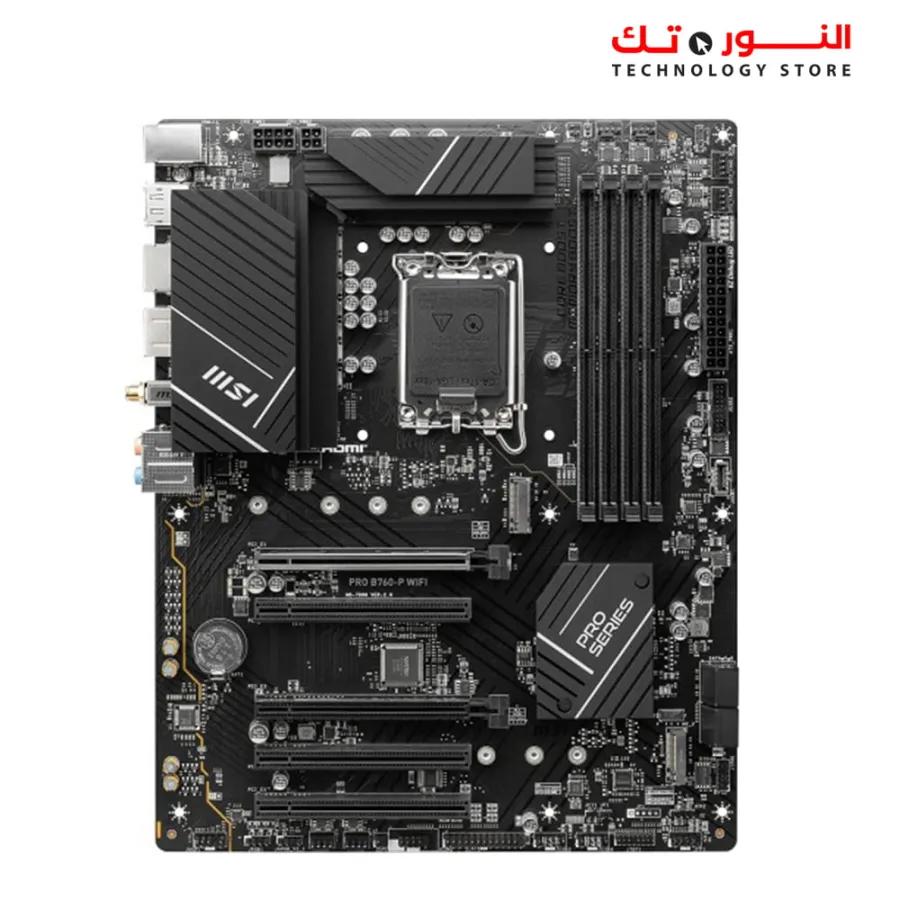

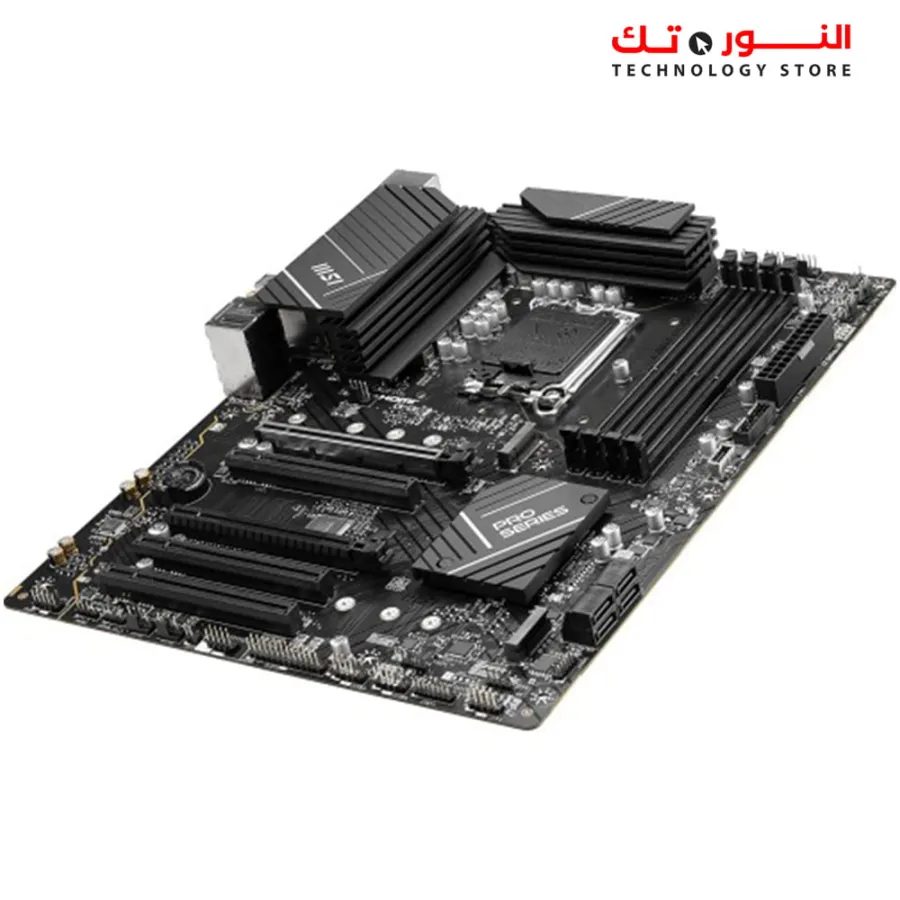

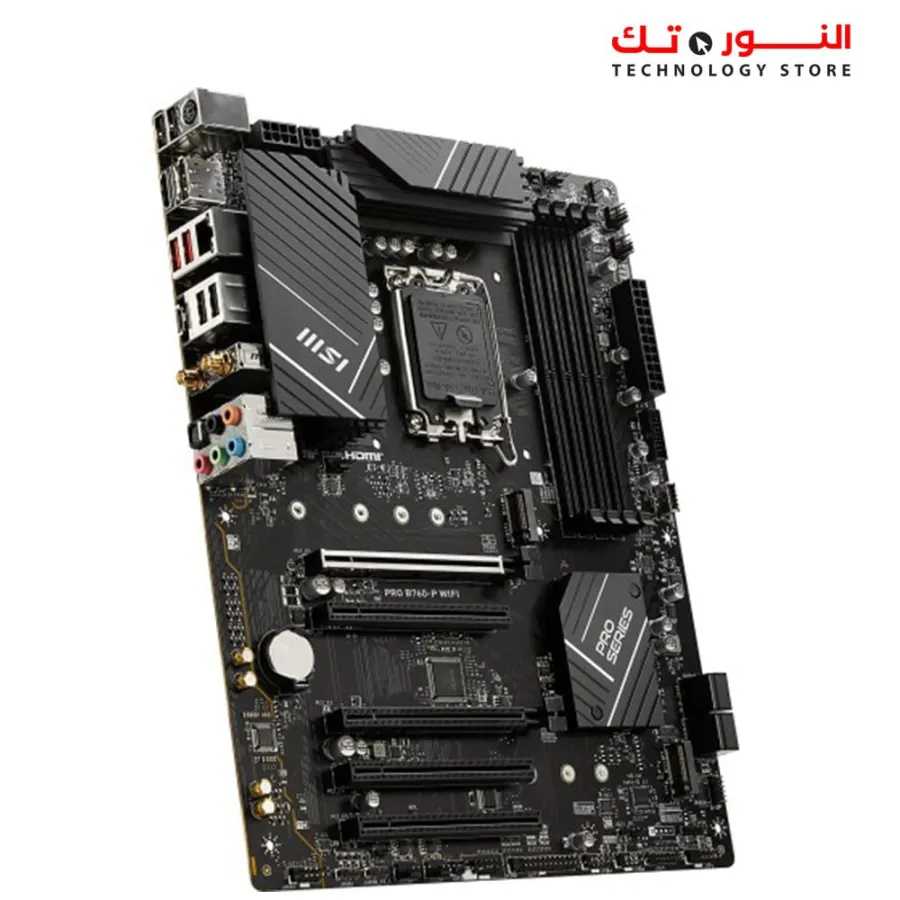

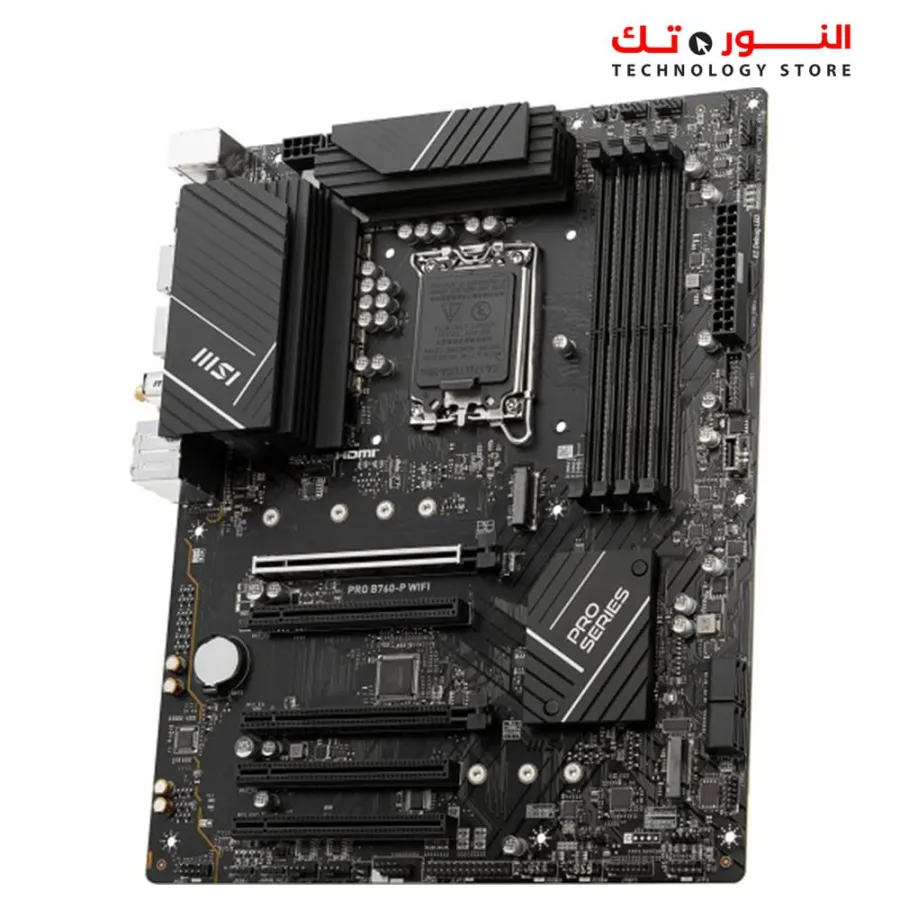

MSI PRO B760-P WIFI Motherboard LGA 1700 DDR5

MSI PRO B760-P WIFI Motherboard LGA 1700 DDR5:

Model

Brand	MSI
Part Number	PRO B760-P WIFI

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset	Intel B760

Memory

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots

PCI Express 4.0 x16	2 x PCI Express 4.0 x16
PCI Express 3.0 x16	3 x PCI Express 3.0 x16
PCI Slots	5 x PCI Slots

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2
SATA RAID	0/1/5/10

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Realtek® RTL8125BG 2.5G LAN
Max LAN Speed	2.5Gbps
Wireless LAN	802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Bluetooth® 5.3, FIPS, FISMA

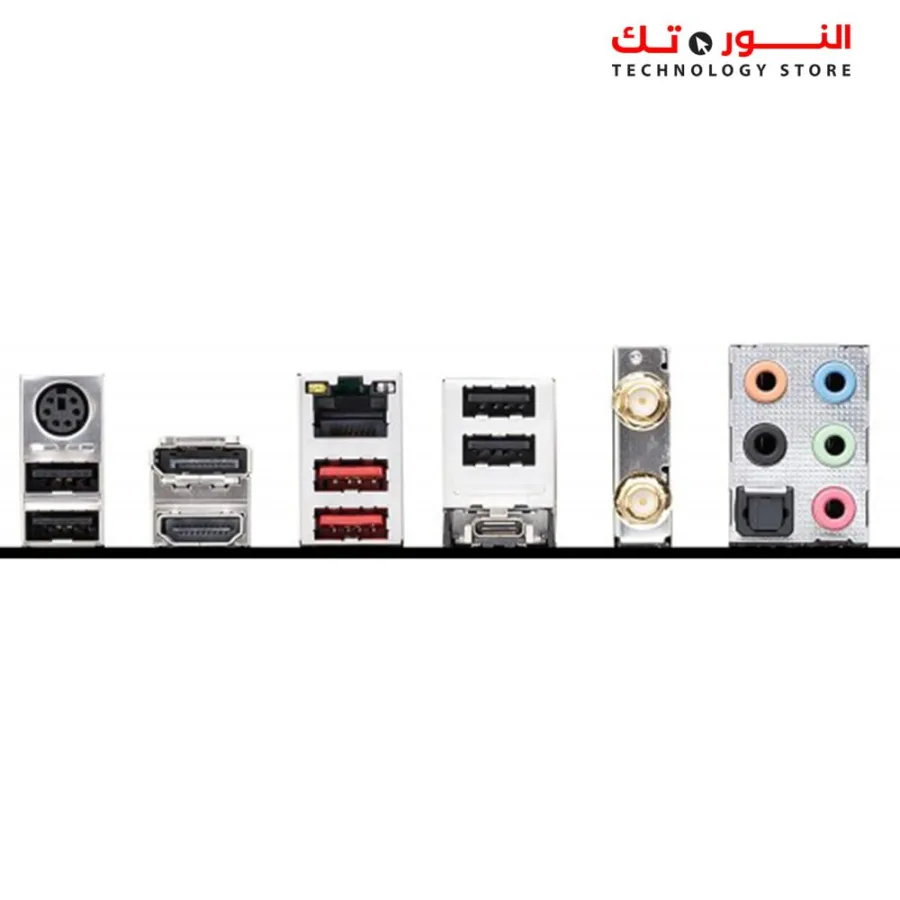

Rear Panel Ports

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks
PS/2	1
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 1.1/2.0	4 x USB 2.0

Physical Spec

Form Factor	ATX

Our Facebook The MSI PRO B760-P WIFI is an ATX motherboard designed for the LGA 1700 CPU socket and supports various CPU types, including Celeron, Intel Core 12th Gen, Intel Core 13th Gen, and Pentium Gold processors.
