MSI PRO B760M-P Motherboard LGA 1700 DDR4
MSI PRO B760M-P Motherboard LGA 1700 DDR4:
| Brand | MSI |
|---|---|
| Model | PRO B760M-P DDR4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Key M (CPU PCIe) 1 x Key M (PCH PCIe/SATA) |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 Channels |
| Back I/O Ports | 1 x D-Sub / 1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 1 x USB 3.2 Gen 2×2 Type-A / 4 x USB 2.0/1.1 |
|---|
| Form Factor | Micro ATX |
|---|
Our Facebook

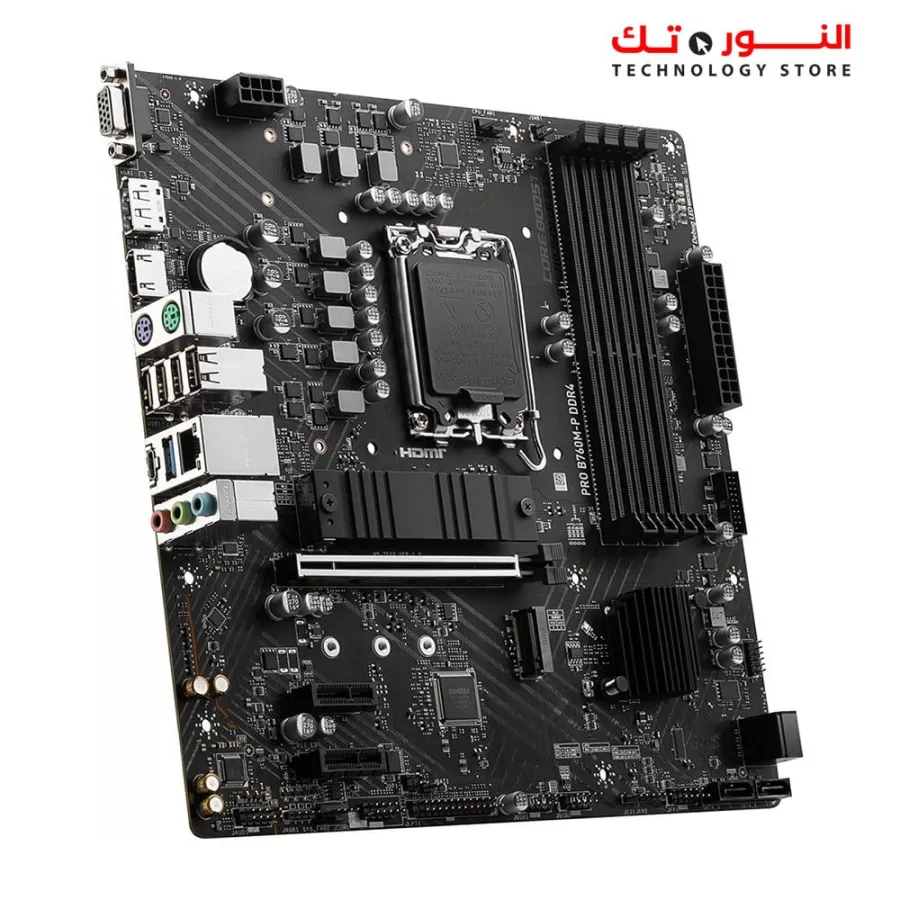

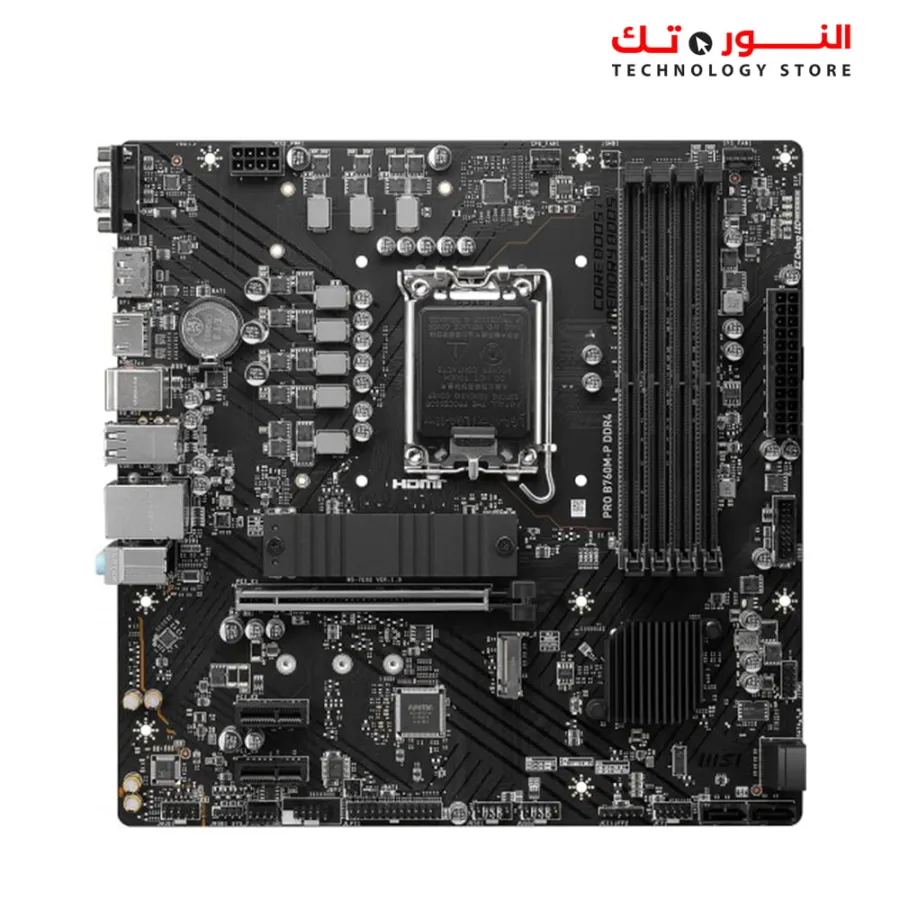

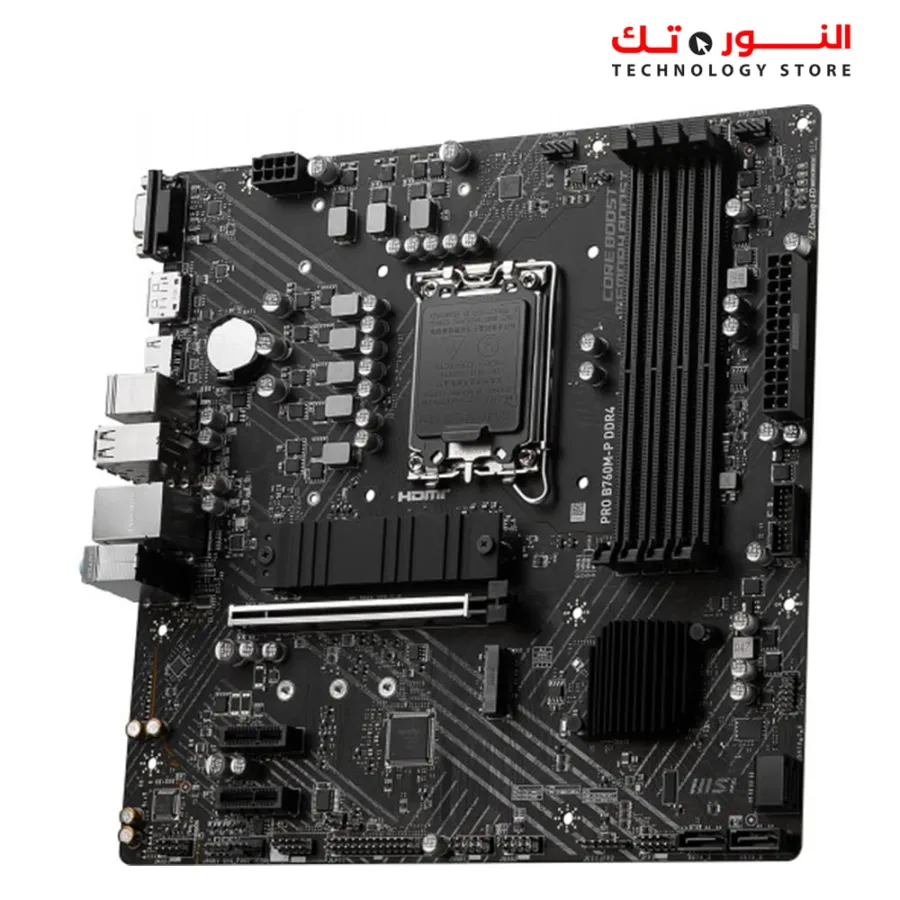

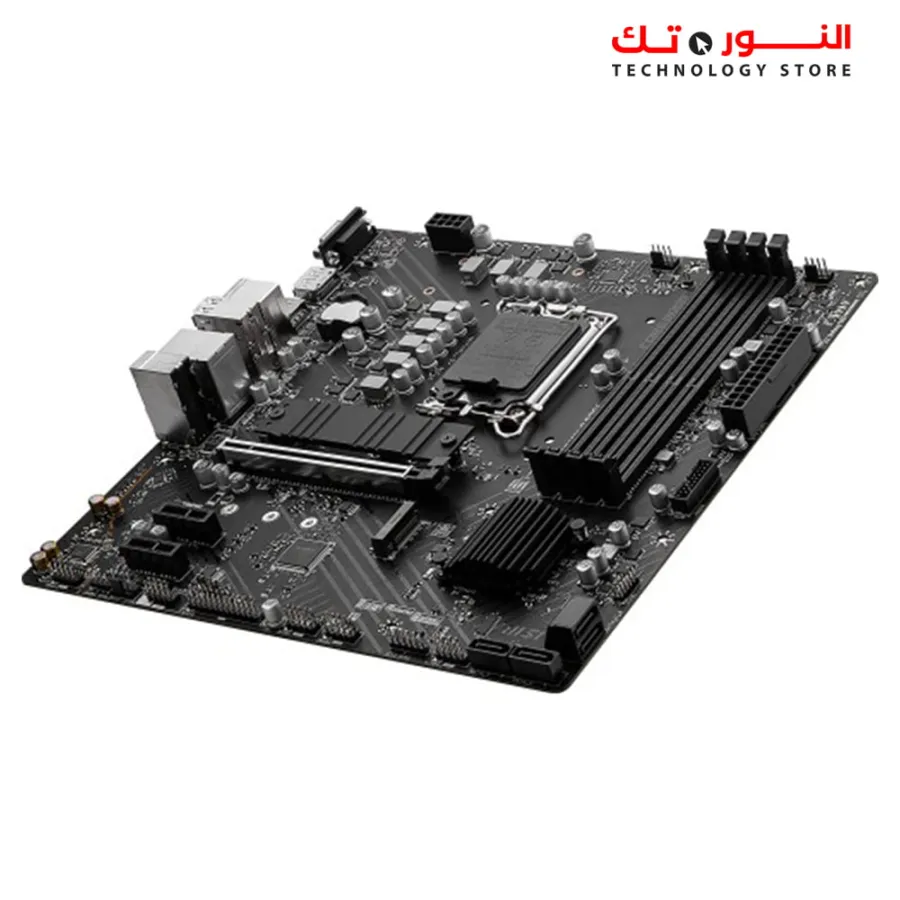

The MSI PRO B760M-P is a micro ATX motherboard designed for the LGA 1700 CPU socket type. It supports 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors. The motherboard is equipped with an Intel B760 chipset.
In terms of memory, it has four DDR4 memory slots with support for a maximum of 128GB of memory. The supported memory standard is DDR4 3200, and it operates in dual-channel mode.
For expansion slots, it features one PCI Express 4.0 x16 slot, one PCI Express x16 slot, and two PCI Express x1 slots.
The motherboard provides storage options with four SATA 6Gb/s ports and two M.2 slots. One M.2 slot is connected directly to the CPU and supports PCIe, while the other M.2 slot is connected to the PCH and supports both PCIe and SATA.
The onboard audio is powered by a Realtek ALC897 audio chipset, supporting 8 channels.

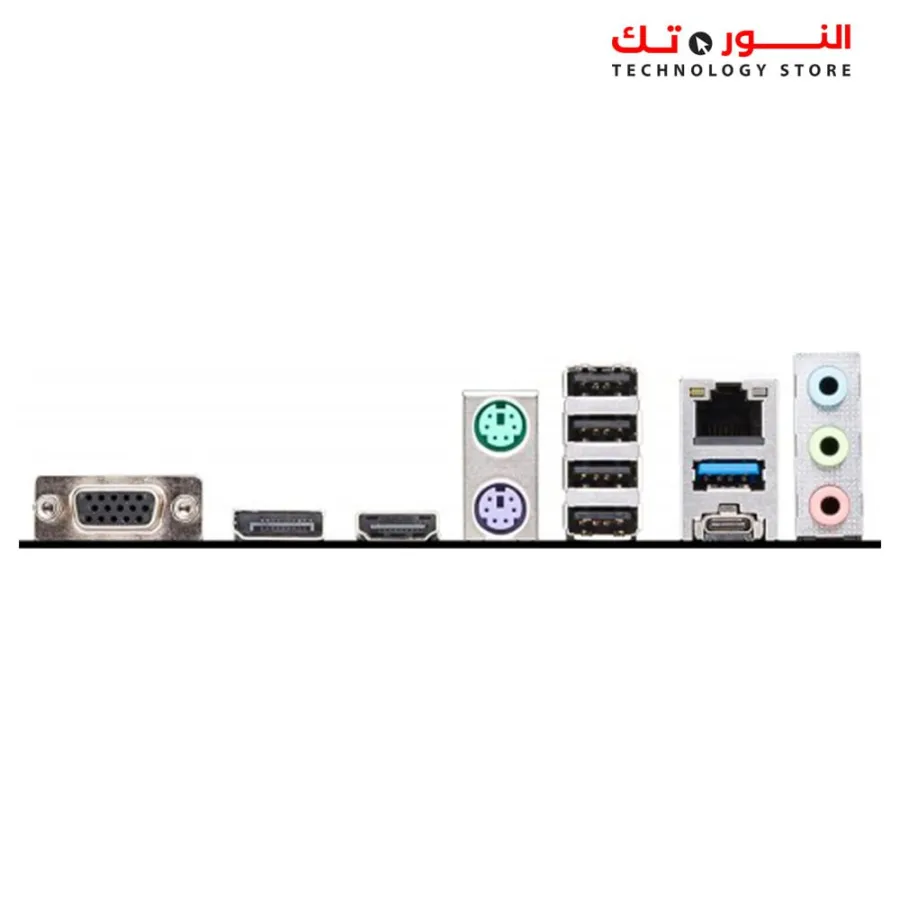

The rear panel ports include 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2×2 Type-A, and 4 x USB 2.0/1.1 ports.
Overall, the MSI PRO B760M-P is a micro ATX motherboard with support for the latest Intel processors, DDR4 memory, and various expansion and storage options.
