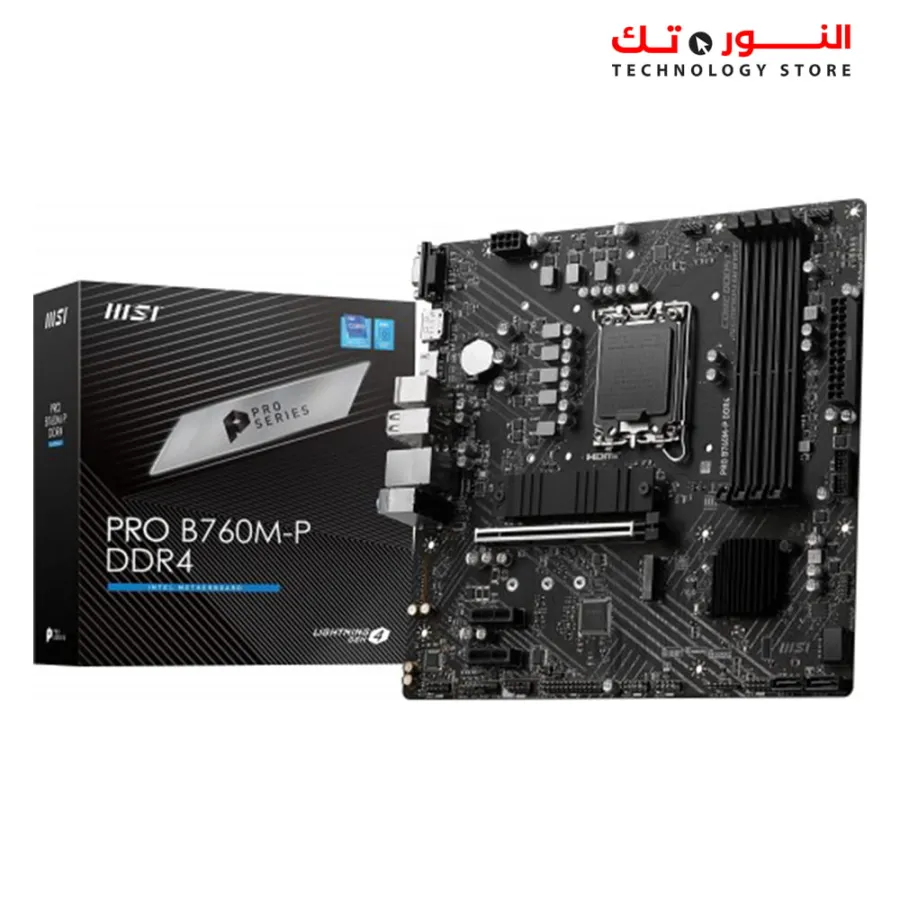

MSI PRO B760M-P Motherboard LGA 1700 DDR4

MSI PRO B760M-P Motherboard LGA 1700 DDR4:

Model

Brand	MSI
Model	PRO B760M-P DDR4

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Chipsets

Chipset	Intel B760

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x16	1 x PCI Express x16
PCI Express x1	2 x PCI Express x1

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x Key M (CPU PCIe) 1 x Key M (PCH PCIe/SATA)

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	8 Channels

Rear Panel Ports

Back I/O Ports	1 x D-Sub / 1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 1 x USB 3.2 Gen 2x2 Type-A / 4 x USB 2.0/1.1

Physical Spec

Form Factor	Micro ATX

  Our Facebook   The MSI PRO B760M-P is a micro ATX motherboard designed for the LGA 1700 CPU socket type. It supports 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors. The motherboard is equipped with an Intel B760 chipset. In terms of memory, it has four DDR4 memory slots with support for a maximum of 128GB of memory. The supported memory standard is DDR4 3200, and it operates in dual-channel mode. For expansion slots, it features one PCI Express 4.0 x16 slot, one PCI Express x16 slot, and two PCI Express x1 slots. The motherboard provides storage options with four SATA 6Gb/s ports and two M.2 slots. One M.2 slot is connected directly to the CPU and supports PCIe, while the other M.2 slot is connected to the PCH and supports both PCIe and SATA. The onboard audio is powered by a Realtek ALC897 audio chipset, supporting 8 channels. The rear panel ports include 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2x2 Type-A, and 4 x USB 2.0/1.1 ports. Overall, the MSI PRO B760M-P is a micro ATX motherboard with support for the latest Intel processors, DDR4 memory, and various expansion and storage options.
