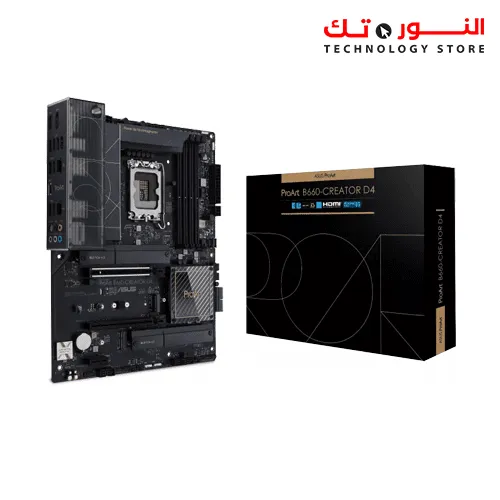

ASUS ProArt B660-CREATOR D4
5.299,00 EGP
AsusOut of stock
1
SKU: 2092
Categories:Computer Components,Motherboard
ASUS ProArt B660-CREATOR D4
| Brand | Asus |
|---|---|
| Brand | Asus |
| Motherboard Type | Intel |
| CPU Socket Type | LGA 1700 |
| Motherboard Chipset | B660 |
Secure payment methods
- Every shipment insured against breakage
- Fast shipping within 24 hours
- Inspect on delivery — every piece checked
Description
ASUS ProArt B660-CREATOR
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B660
Memory
4 x DIMM, Max. 128GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
ASUS ProArt B660-CREATOR
Graphics
1 x HDMI® port**
1 x USB Type-C port supports DisplayPort output***
DP IN that will have output through USB Type-C port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
**** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal.
Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot**
* Supports Intel® Optane Memory H Series on PCH-attached PCIE slot so
** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
Storage
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
Intel® 12th Gen Processors and
M.2_1 slot (Key M), type 2242/2260/2280/22110 but
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
M.2_3 slot (Key M), so type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 and
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
ASUS ProArt B660-CREATOR
Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 9 ports) so
1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ASUS ProArt B660
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
ASUS ProArt B660-CREATOR
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Back Panel I/O Ports
Internal I/O Connectors
ASUS ProArt B660
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
Clear CMOS header
COM Port header
Front Panel Audio header (AAFP)
M.2 slot (Key E)
SPI TPM header (14-1pin)
20-5 pin System Panel header
Thermal Sensor header
1Thunderbolt™ header
ASUS ProArt B660-CREATOR
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS ProArt B660-CREATOR
ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headersSoftware Features
ASUS ProArt B660
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
EPU
DIGI+ VRM
Turbo app
ASUS CPU-Z
ASUS ProArt B660-CREATOR
IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR BIOS128 Mb
ASUS ProArt B660-CREATOR
Manageability
WOL by PME, PXE
Accessories
ASUS ProArt B660
Cables
1 x DisplayPort cable
2 x SATA 6Gb/s cables
ASUS ProArt B660-CREATOR
Miscellaneous
3 x M.2 rubber packages
1 x M.2 SSD Screw Package
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
ASUS ProArt B660-CREATOR
Operating System
Windows® 11 64-bit, Windows® 10 64-bit and
Form Factor
ASUS ProArt B660-CREATOR
ATX Form Factor but
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ASUS ProArt B660-CREATOR
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model . Please refer to the specification page
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
