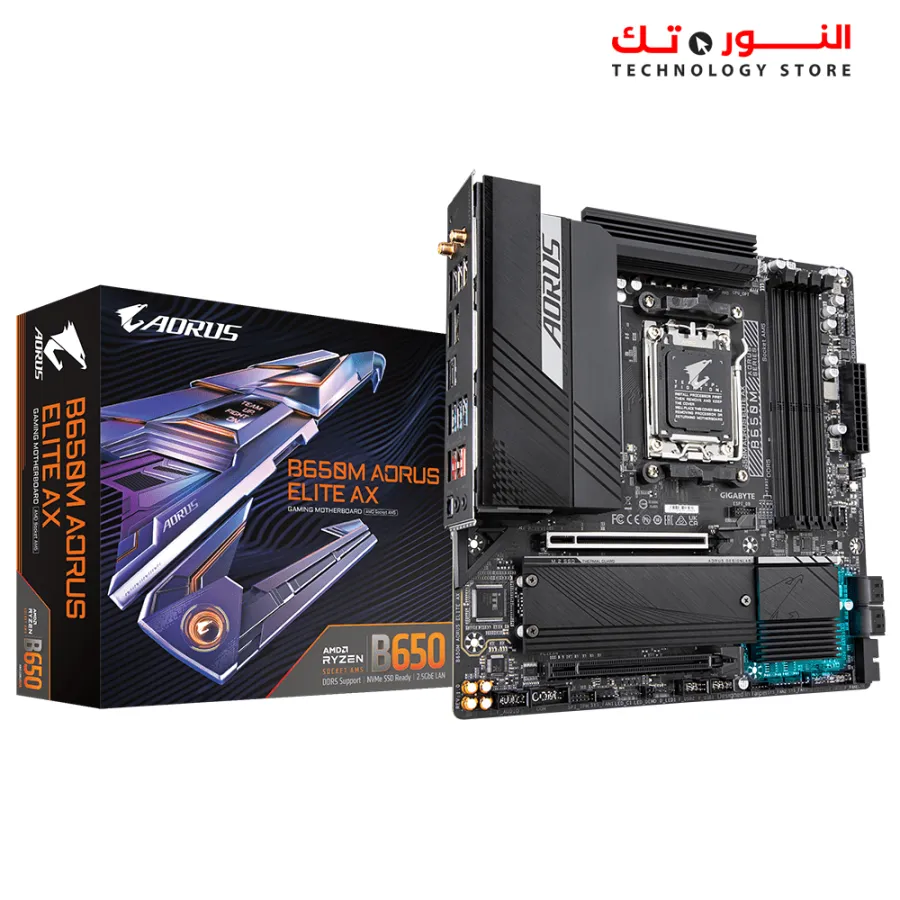

B650M AORUS ELITE AX DDR5/PCIe 5.0

B650M AORUS ELITE AX DDR5/PCIe 5.0:

• CPU
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

  (Please refer to "CPU Support List" for more information.)
• Chipset
  1. AMD B650
• Memory
  1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and the number of DRAM modules, please refer to "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)
• Audio
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  Intel^® Wi-Fi 6E AX210 (For PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• Storage Interface
  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

  Chipset:

  1. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:

  1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C^® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back pane
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x serial port header
  18. 1 x THB_U4 add-in card connector
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
  6. 2 x USB 3.2 Gen 2 Type-A ports (red)
  7. 5 x USB 3.2 Gen 1 ports
  8. 4 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 2 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm

  Our Facebook   The B650M AORUS ELITE AX DDR5/PCIe 5.0 is a micro ATX motherboard designed for AMD Socket AM5 and supports the AMD Ryzen 7000 Series processors. It features the AMD B650 chipset and supports DDR5 memory modules. Here are some key features of the B650M AORUS ELITE:

1. CPU Support: It supports AMD Ryzen 7000 Series processors, providing high-performance computing capabilities.
2. Memory Support: The motherboard supports DDR5 memory modules with speeds ranging from 5200 MHz to 6666 MHz (overclocked). It has four DDR5 DIMM sockets with a maximum capacity of 192 GB (48 GB per DIMM).
3. Onboard Graphics: The motherboard has integrated graphics capabilities with one DisplayPort supporting a maximum resolution of 3840x2160@144 Hz and one HDMI port supporting a maximum resolution of 4096x2160@60 Hz.
4. Audio: It features a Realtek Audio CODEC, offering high-definition audio with support for 2/4/5.1/7.1-channel configurations. It also supports S/PDIF Out for digital audio connectivity.
5. LAN and Wireless Communication: The motherboard includes a Realtek 2.5GbE LAN chip for wired network connectivity. It also offers wireless communication options with either an AMD Wi-Fi 6E RZ616 or an Intel Wi-Fi 6E AX210 module, providing support for Wi-Fi 6E (ax) and Bluetooth 5.2 or 5.3.
6. Expansion Slots: The motherboard provides one PCI Express x16 slot running at x16 (PCIEX16) for optimal graphics card performance. It also has one PCI Express x16 slot running at x4 (PCIEX4) for additional expansion cards.
7. Storage Interface: It offers versatile storage options with one M.2 connector supporting PCIe 5.0 or PCIe 4.0 SSDs and four SATA 6Gb/s connectors supporting both NVMe and SATA storage devices. RAID 0, RAID 1, and RAID 10 are supported for both NVMe SSDs and SATA storage devices.
8. USB Connectivity: The motherboard features a variety of USB ports, including USB Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports, providing fast and versatile connectivity options.
9. I/O Connectors: It includes various internal and external connectors for power, fans, storage, audio, USB, and other peripherals. It also has addressable LED strip headers and RGB LED strip headers for customizable lighting effects.
10. BIOS and Unique Features: The motherboard utilizes a licensed AMI UEFI BIOS with support for features like GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus. It comes bundled with Norton Internet Security (OEM version) and LAN bandwidth management software.
11. Operating System Support: It is compatible with both Windows 11 64-bit and Windows 10 64-bit operating systems.

Overall, the B650M AORUS ELITE AX DDR5/PCIe 5.0 is a feature-rich micro ATX motherboard suitable for high-performance gaming and computing setups with support for the latest AMD Ryzen processors and DDR5 memory technology.
