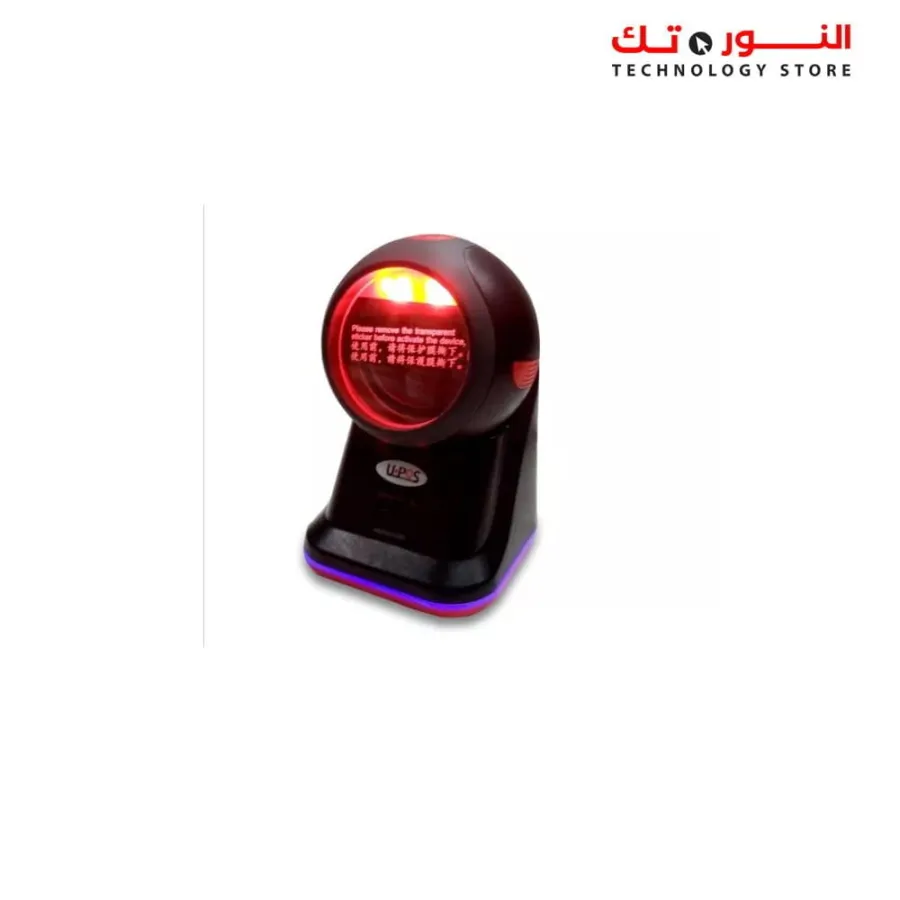

Barcode scanner U.POS UP-868 H 2D

Performance Parameters:- Ligth Source: Red LED

Supported Symbologies: 1D: Codabar, Code 11, Code 39, Code 93, Code 128/EAN128,EAN.UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc.

2D: PDF417, QR Code, Matrix 2 of 5, Mrico PDF417, Australian Post, Canada Post, Japan Code, Maxi Cdoe, Codeblock, Aztec, Dutch Post, TLC 39, DataMatrix, etc.

System compatibility: Linux, Android, Windows XP/7/8/10

Scan Range: 10-160mm(EAN 13 13mil, PCS-90%)

Print Contrast: 20% minimum reflective difference

Minimum recognition accuracy: Code 39 4mil

Motion Tolerance: 4meters/second

Scan Mode: Automatic Induction Scanning

Image (Pixels): 1280 pixels(H) x 800 pixels(V)

Man-machine Interaction: Indicator light: Blue light power indicator; Blue light flashing code reading prompt,

Buzzer: start prompt, read code prompt.

Recognition angle range: Turn ±360°, Elevation ±65°, Declination ±65°

Interface: USB(Drive-Free), RS232, USB-COM
