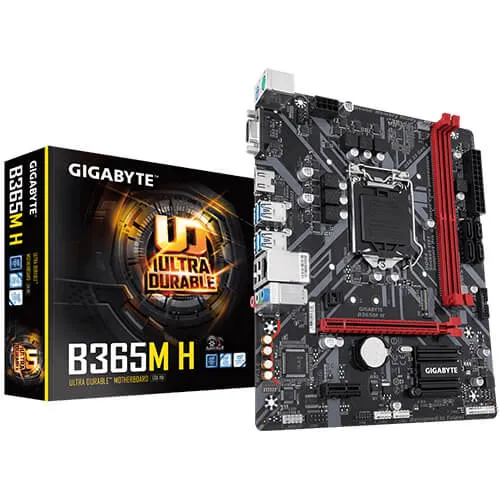

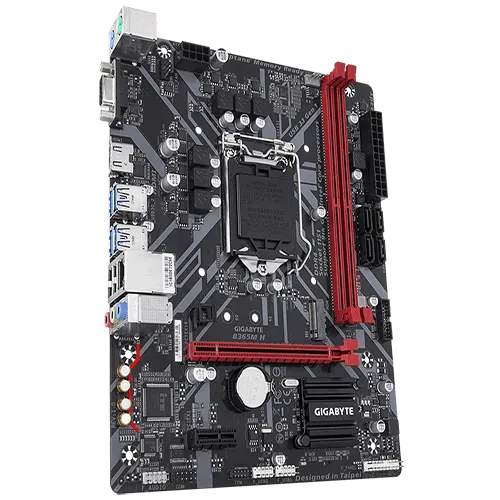

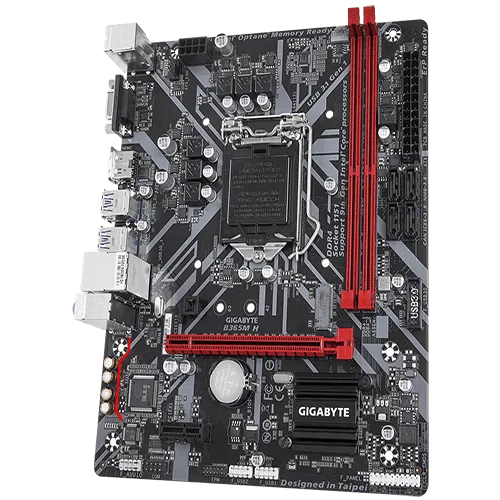

GIGABYTE B365M

1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel^® B365 Express Chipset

1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
7. * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
3. * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB * Actual support may vary by CPU.

1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. Realtek® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
3. (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ memory

Chipset:

1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.1 Gen 1 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) TPM function is optional due to different regional policy
12. 1 x serial port header
13. 1 x Clear CMOS jumper

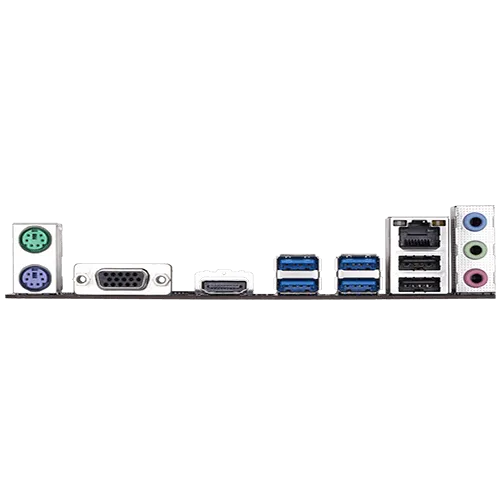

1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 4 x USB 3.1 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
7. * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS™ Auto Green Support for Cloud Station EasyTune Easy RAID Fast Boot Game Boost Support for ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton® Internet Security (OEM version)
2. Realtek 8118 Gaming LAN bandwidth Control Utility

1. Support for Windows 10 64-bit

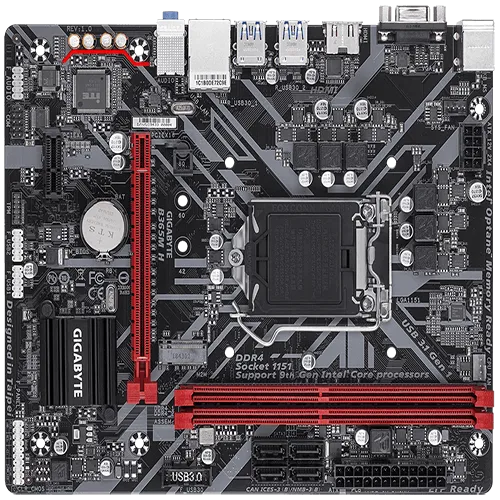

1. Micro ATX Form Factor; 22.6cm x 18.5cm
