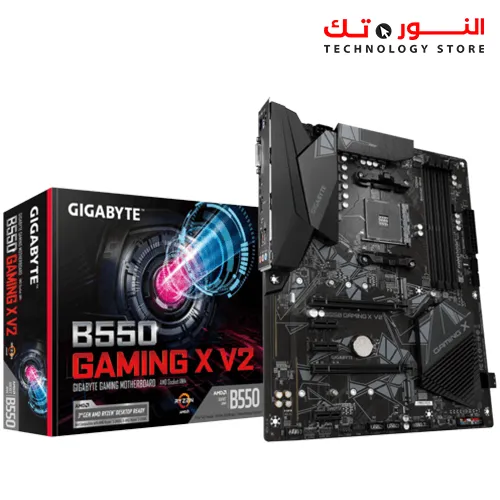

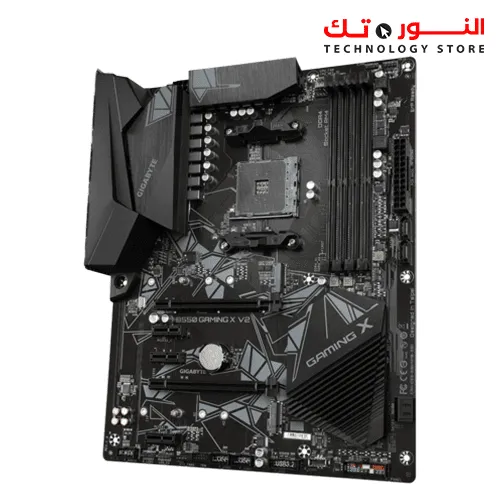

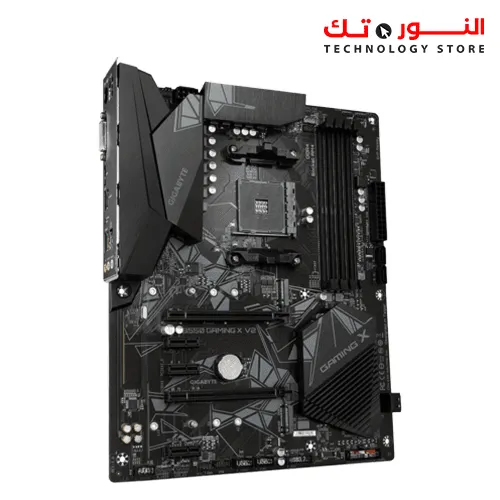

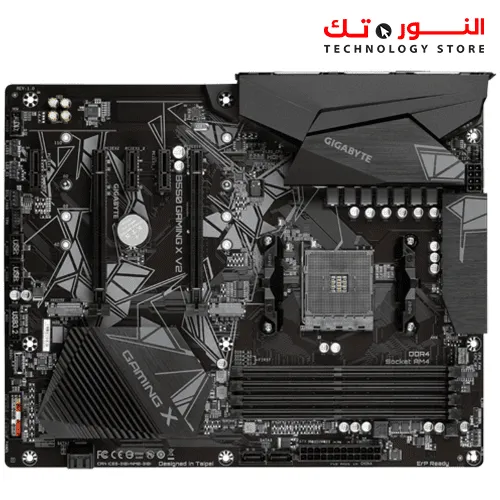

GIGABYTE B550 GAMING X V2

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra Durable™ PCIe 4.0 Ready x16 Slot
• Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Slots
• GIGABYTE

  Exclusive 8118 Gaming LAN with Bandwidth Management

• HDMI, DVI-D Ports for Multiple Display
• Features High Quality Audio Capacitors
• RGB FUSION 2.0 support Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design

1

Solid Pin Power Connector

2

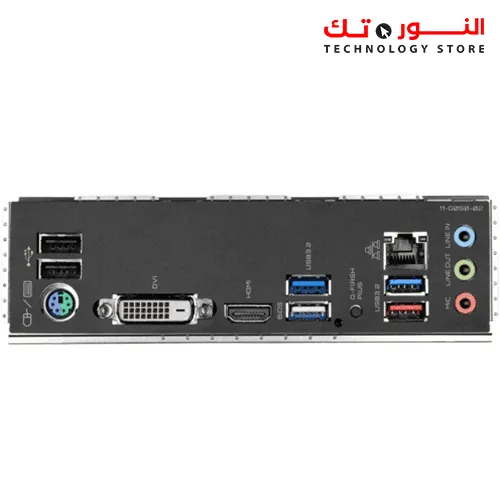

DVI

3

HDMI

4

Q-Flash Plus Button

5

GIGABYTE 8118 Gaming GbE LAN

6

Ultra Durable PCIe Slot

• PCIe^® 4.0 Slot • Running 1 x16

7

High Quality Audio Solution

8

High-End Audio Capacitors

9

RGB FUSION 2.0

• Addressable LED Header*2 • RGB LED Header*3

10

True 10+3 Phases Digital Power

• Premium Choke and Capacitor

11

Dual Channel DDR4, 4 DIMMs

12

Supports 3rd Gen AMD Ryzen™ Processors

13

Advanced Thermal Design

14

Dual M.2 Connectors

1. 22110 M.2 • PCIe 4.0 M.2 Connector • NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)2. 22110 M.2 • NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)

15

Smart Fan 5 + FAN STOP

• 5* Fan / Water Pump Connectors • 6* Temperature Sensors
