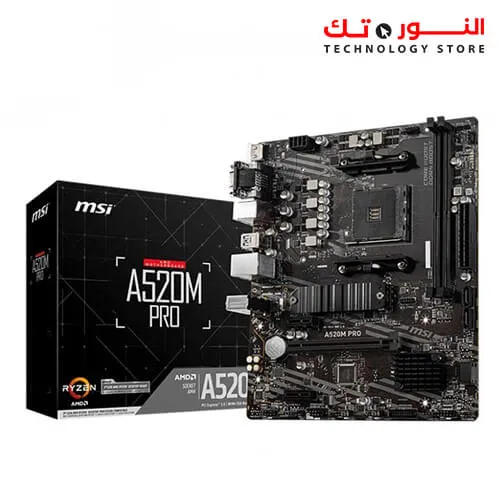

MSI A520M PRO Gaming Motherboard AMD AM4 DDR4 PCIe 4.0 SATA 6Gb s Dual M.2 USB 3.2 Gen 1 HDMI DP Micro-ATX

Name: MSI A520M PRO Gaming Motherboard AMD AM4 DDR4 PCIe 4.0 SATA 6Gb s Dual M.2 USB 3.2 Gen 1 HDMI DP Micro-ATX
Brand: MSI
SKU: 729
Price: 1399.00 EGP
Availability: OutOfStock

⁦1.399,00 EGP⁩

Out of stock

Order via WhatsApp

SKU: 729

Categories:Computer Components,Motherboard

MSI A520M PRO Gaming Motherboard AMD AM4 DDR4 PCIe 4.0 SATA 6Gb s Dual M.2 USB 3.2 Gen 1 HDMI DP Micro-ATX

Brand	MSI
Motherboard Type	AMD
CPU Socket Type	AM4
Brand	MSI
Motherboard Chipset	A520

Secure payment methods

Every shipment insured against breakage
Fast shipping within 24 hours
Inspect on delivery — every piece checked

Description

Product Description

Model
BRAND	MSI
MODEL	A520M-A PRO

Supported CPU
CPU SOCKET TYPE	AM4
CPU TYPE	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors

Chipsets
CHIPSET	AMD A520

Memory
NUMBER OF MEMORY SLOTS	2×288pin
MEMORY STANDARD	Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz
MAXIMUM MEMORY SUPPORTED	64GB
CHANNEL SUPPORTED	Dual Channel

Expansion Slots
PCI EXPRESS X16	1 x PCI Express x16
PCI EXPRESS X1	1 x PCIe 3.0 x1 slot

Storage Devices
SATA 6GB/S	4 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices* The supported specification depends on installed processor.
SATA RAID	0/1/10

Onboard Video
ONBOARD VIDEO CHIPSET	Supported only by CPU with integrated graphic: 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16GB 1 Available for the processor with integrated graphics. 2 Graphics specifications may vary depending on the CPU installed.

Onboard Audio
AUDIO CHIPSET	Realtek ALC892
AUDIO CHANNELS	7.1 Channels

Onboard LAN
LAN CHIPSET	Realtek RTL8111H
MAX LAN SPEED	10/100/1000Mbps

Rear Panel Ports
BACK I/O PORTS	1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1

Internal I/O Connectors
ONBOARD USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
OTHER CONNECTORS	1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper

Physical Spec
FORM FACTOR	Micro ATX
DIMENSIONS (W X L)	9.3" x 7.9"
POWER PIN	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector

Features
FEATURES	Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors Supports DDR4 Memory, up to 4600(OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability Audio Boost: Reward your ears with studio grade sound quality Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
