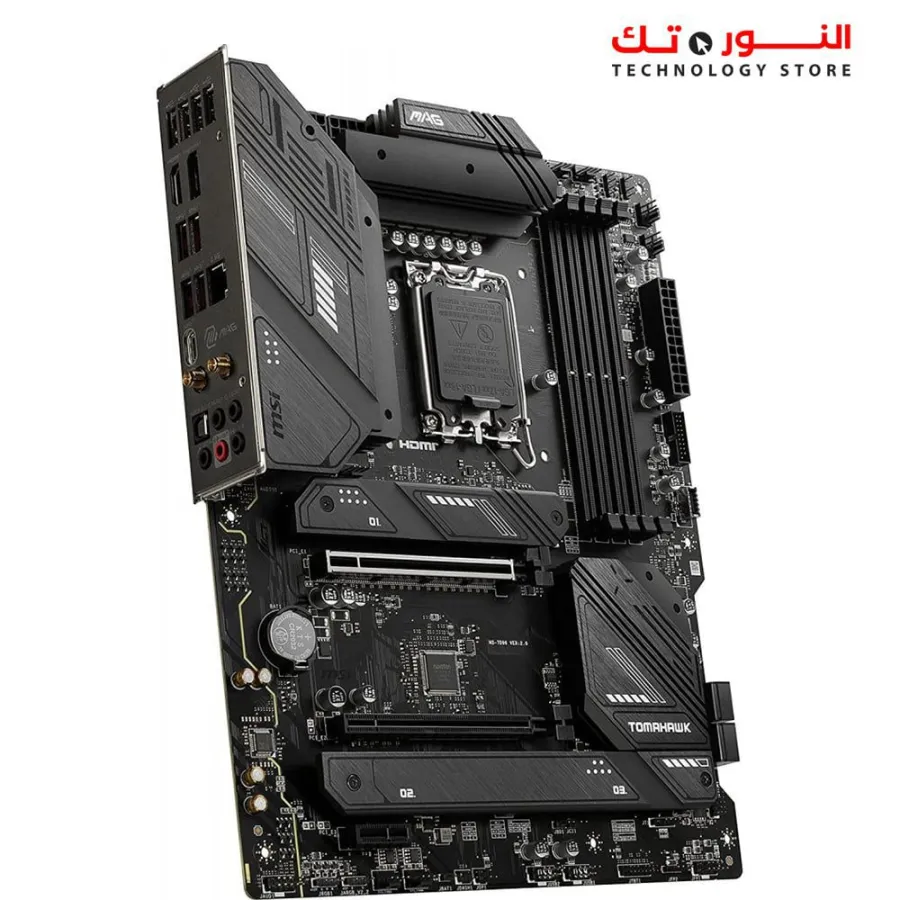

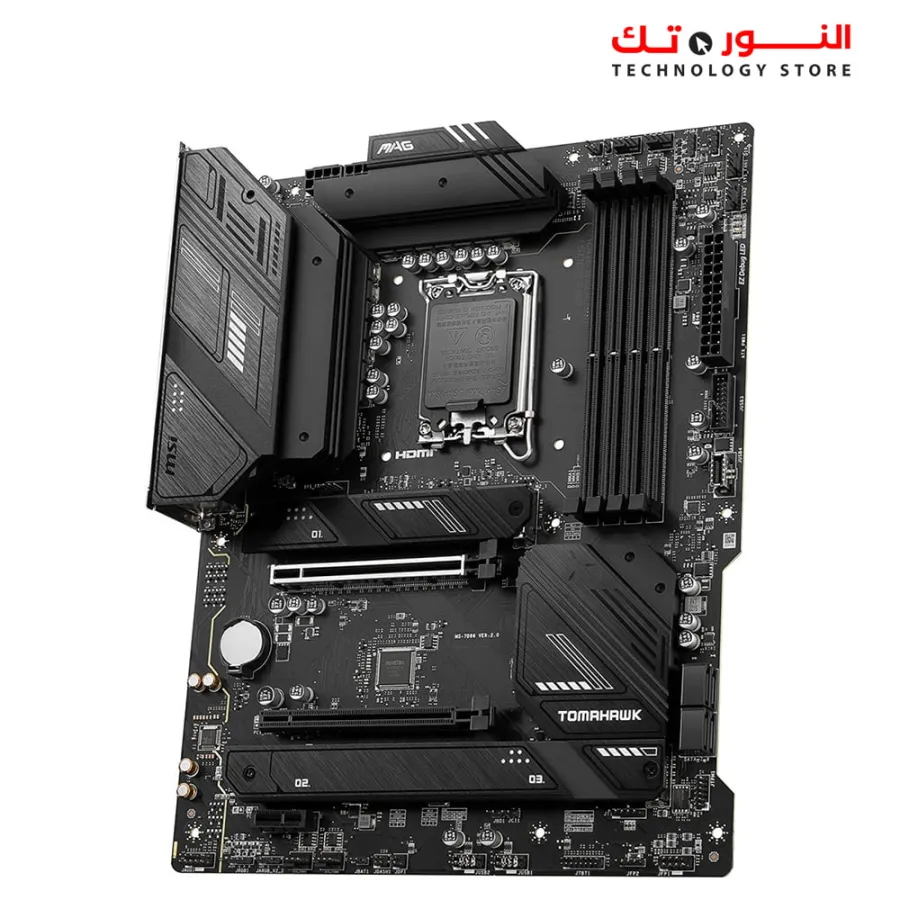

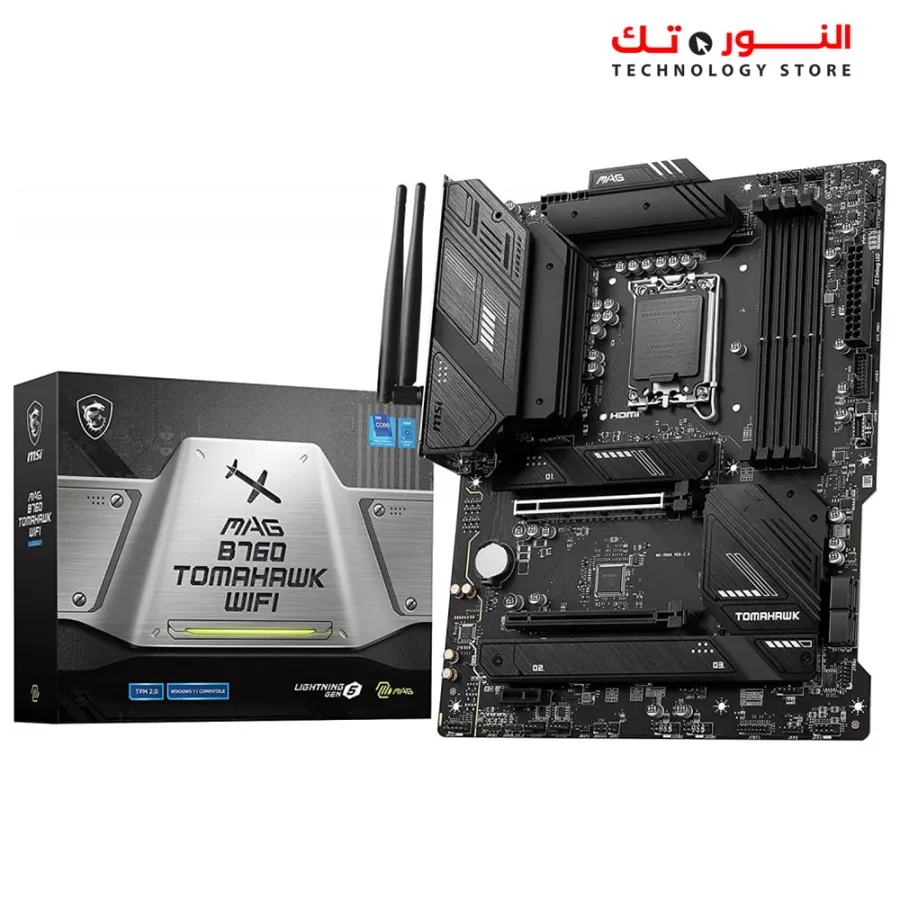

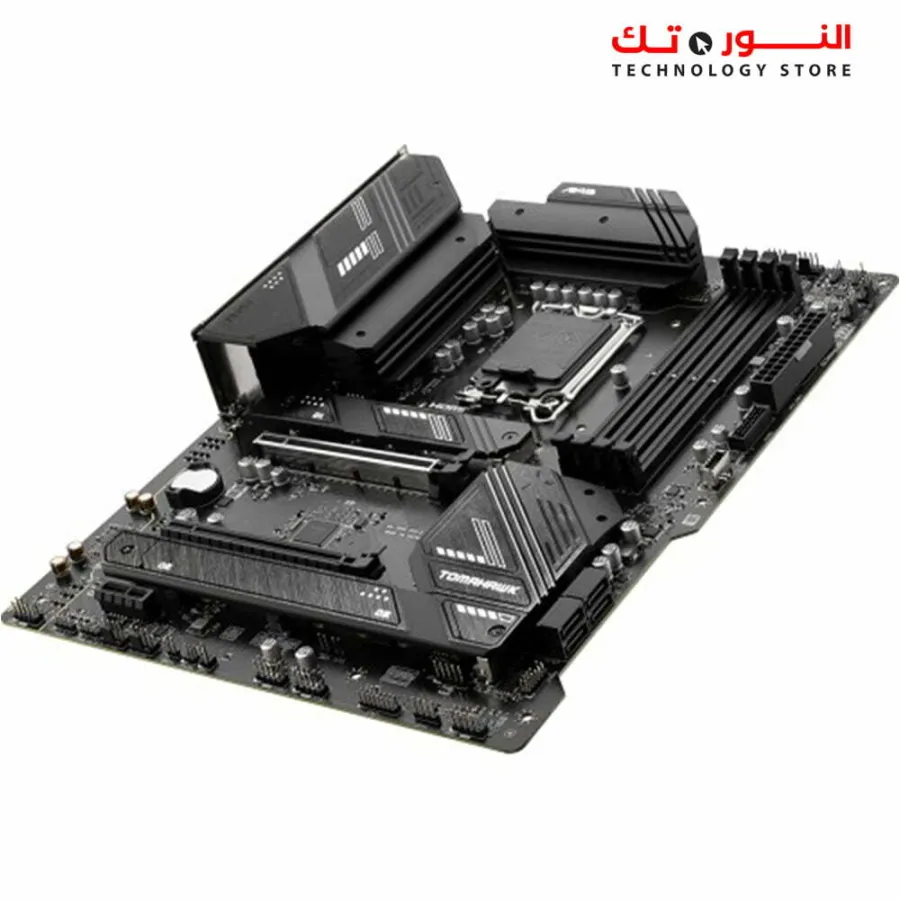

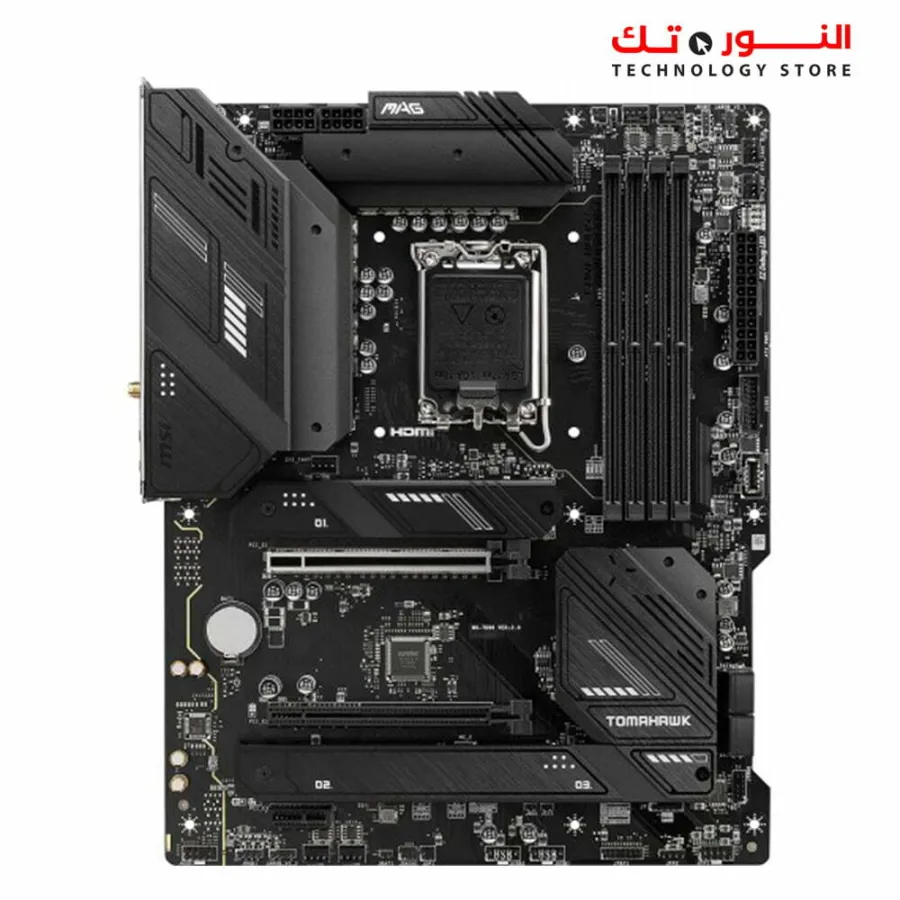

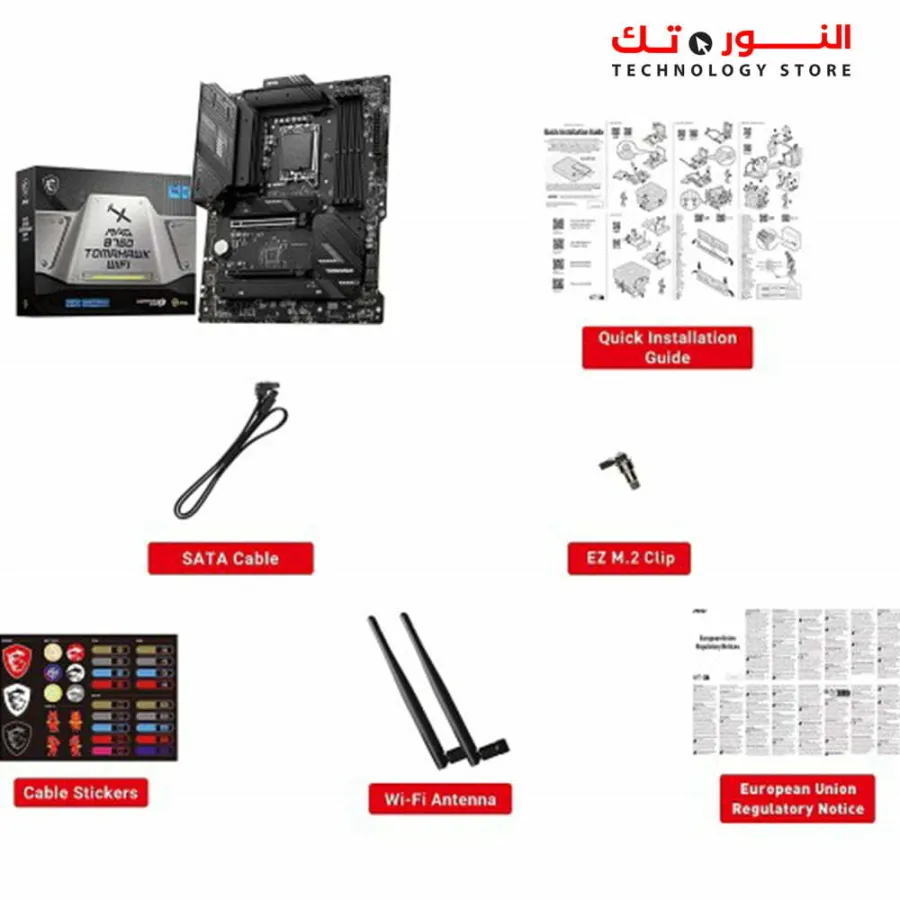

MSI MAG B760 TOMAHAWK WIFI Motherboard LGA 1700 DDR5

MSI MAG B760 TOMAHAWK WIFI Motherboard LGA 1700 DDR5:

Model

Brand	MSI
Model	MAG B760 TOMAHAWK WIFI

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets

Chipset	Intel B760

Memory

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Expansion Slots

PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x4	1 x PCI Express 3.0 x4
PCI Express x1	1 x PCI Express 4.0 x1

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3 x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From B760 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3* slot (From B760 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices * SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot.
SATA RAID	0/1/5/10

Onboard Audio

Audio Channels	7.1-Channel High Definition Audio

Onboard LAN

LAN Chipset	1 x Realtek RTL8125BG-CG 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E
Bluetooth	Bluetooth 5.3

Rear Panel Ports

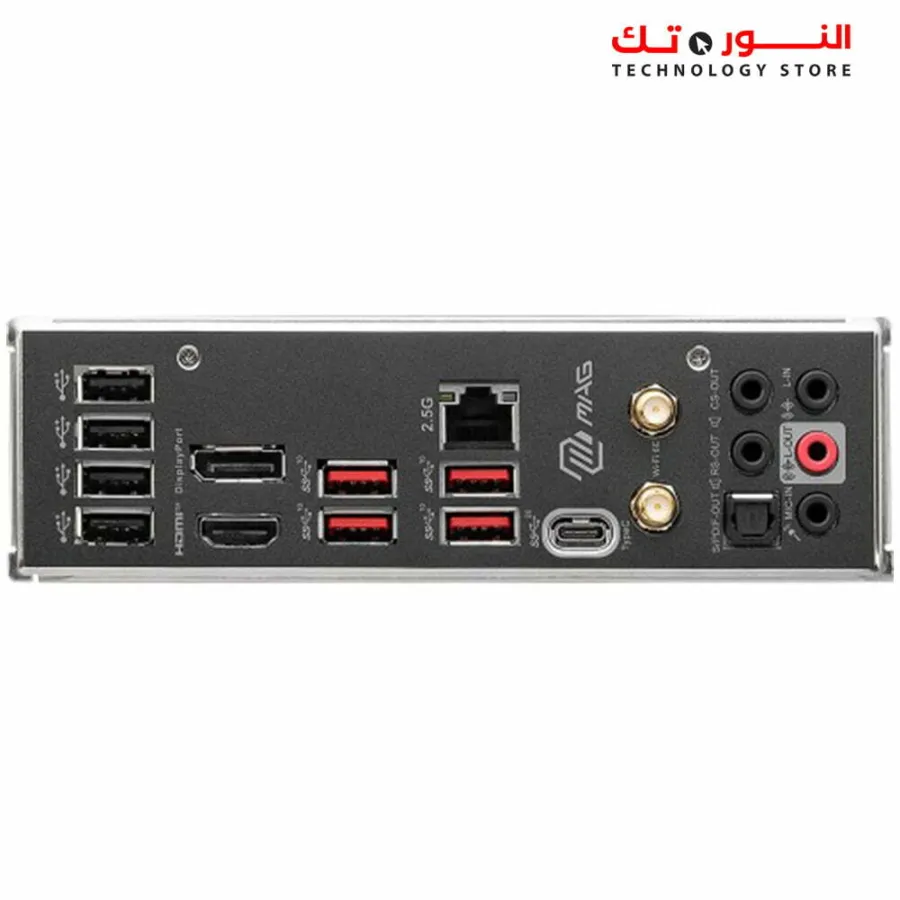

Back I/O Ports	4 x USB 2.0 Type-A ports (From Hub GL850G) 1 x DisplayPort port 1 x HDMI port 1 x 2.5Gbps LAN (RJ45) jack 4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub) 1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset) 2 x Wi-Fi Antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector

Internal I/O Connectors

Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Tuning Controller connector 1 x TBT connector (Supports RTD3)

Physical Spec

Form Factor	ATX
LED Lighting	2 x 4-pin RGB LED connectors 2 x 3-pin ARGB Gen2 LED connectors 4 x EZ Debug LED
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Windows Compatibility

Windows 11	Supported

Our Facebook   The MSI MAG B760 TOMAHAWK WIFI is a high-performance motherboard designed for the LGA 1700 socket type, supporting various Intel processors including Celeron, Intel Core 12th Gen, Intel Core 13th Gen, and Pentium Gold. It features the Intel B760 chipset and supports DDR5 memory technology. This motherboard has four memory slots, which can accommodate up to 128GB of DDR5 memory in a dual-channel configuration. The memory standard supported is DDR5 5600, providing fast and efficient data transfer rates. It also supports overclocking, with maximum overclocking frequencies varying depending on the configuration (1DPC 1R, 1DPC 2R, 2DPC 1R, 2DPC 2R). In terms of expansion slots, it offers a PCI Express 5.0 x16 slot, a PCI Express 3.0 x4 slot, and a PCI Express 4.0 x1 slot, allowing for the installation of various expansion cards such as graphics cards, storage controllers, and networking adapters. For storage, the motherboard provides four SATA 6Gb/s ports for traditional hard drives and SSDs. Additionally, it offers three M.2 slots (Key M) for high-speed NVMe storage devices. The M.2 slots support different configurations, including PCIe 4.0 x4 and SATA 6Gb/s, and can accommodate M.2 storage devices of various sizes (2242, 2260, 2280, and 22110). The onboard audio system is a 7.1-channel high-definition audio solution, that delivers immersive sound quality. Networking capabilities include a 2.5Gbps LAN port using the Realtek RTL8125BG-CG LAN controller, as well as Intel Wi-Fi 6E and Bluetooth 5.3 support for wireless connectivity. The rear panel ports of the motherboard consist of multiple USB ports (including USB 2.0 and USB 3.2 Gen 2 Type-A), a DisplayPort and HDMI port for video output, a 2.5Gbps LAN port, Wi-Fi antenna connectors, audio jacks, an optical S/PDIF out connector, and more. In terms of physical specifications, the MSI MAG B760 TOMAHAWK WIFI has an ATX form factor, measuring 12.0" x 9.6". It features LED lighting with 4-pin RGB and 3-pin ARGB Gen2 connectors, allowing for customizable lighting effects. The motherboard requires a 24-pin ATX main power connector and two 8-pin ATX 12V power connectors for power supply. Lastly, the MSI MAG B760 TOMAHAWK WIFI motherboard is compatible with Windows 11, ensuring smooth operation and compatibility with the latest operating system from Microsoft.
