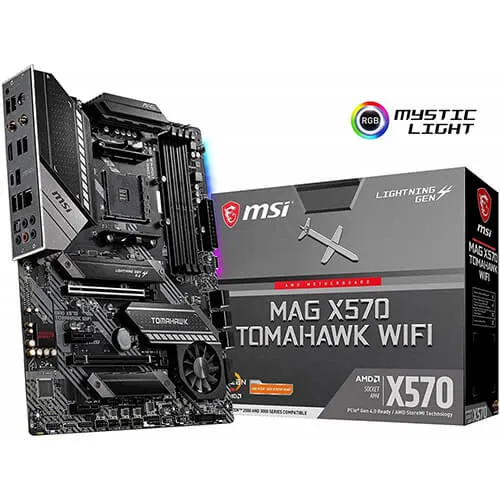

MSI MAG X570 TOMAHAWK WIFI

Model

Brand

MSI

Model

MAG X570 TOMAHAWK WIFI

Supported CPU

CPU Socket Type

AM4

CPU Type

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket

Chipsets

Chipset

AMD X570

Memory

Number of Memory Slots

4×288pin

Memory Standard

3rd Gen AMD Ryzen Processors support DDR4 4600+/ 4533/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3466+/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC

Maximum Memory Supported

128GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 4.0 x16

1 x PCIe 4.0/3.0 x16 slot (PCIE_1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/3.0 x16 slot (PCIE_3, supports x4 mode)

PCI Express x1

2 x PCIe 3.0 x1 slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s ports (from AMD X570 Chipset)

M.2

2 x M.2 slots (Key M) * M2_1 slot (from AMD Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices* The speeds may vary for different devices

Onboard Video

Onboard Video Chipset

Supported only by CPU with integrated graphic: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@24Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset

Realtek ALC1200

Audio Channels

7.1-Channel High Definition Audio Supports Optical S/PDIF output

Onboard LAN

LAN Chipset

Realtek 8125B

Max LAN Speed

10/100/1000/2500Mbps

Wireless LAN

Intel Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

Bluetooth

Supports Bluetooth 5

Rear Panel Ports

Back I/O Ports

1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks

Internal I/O Connectors

Onboard USB

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1 x USB 3.2 Gen 2 10Gbps Type-C Port

Other Connectors

1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs 1 x TBT connector * 1 x RTD3 connector* Thunderbolt card needs to support RTD3.

Physical Spec

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

12.0" x 9.6"

Power Pin

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features

Features

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 4600 MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2 MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4-pin CPU power connectors, Game Boost, DDR4 Boost AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK with user friendly user interface
