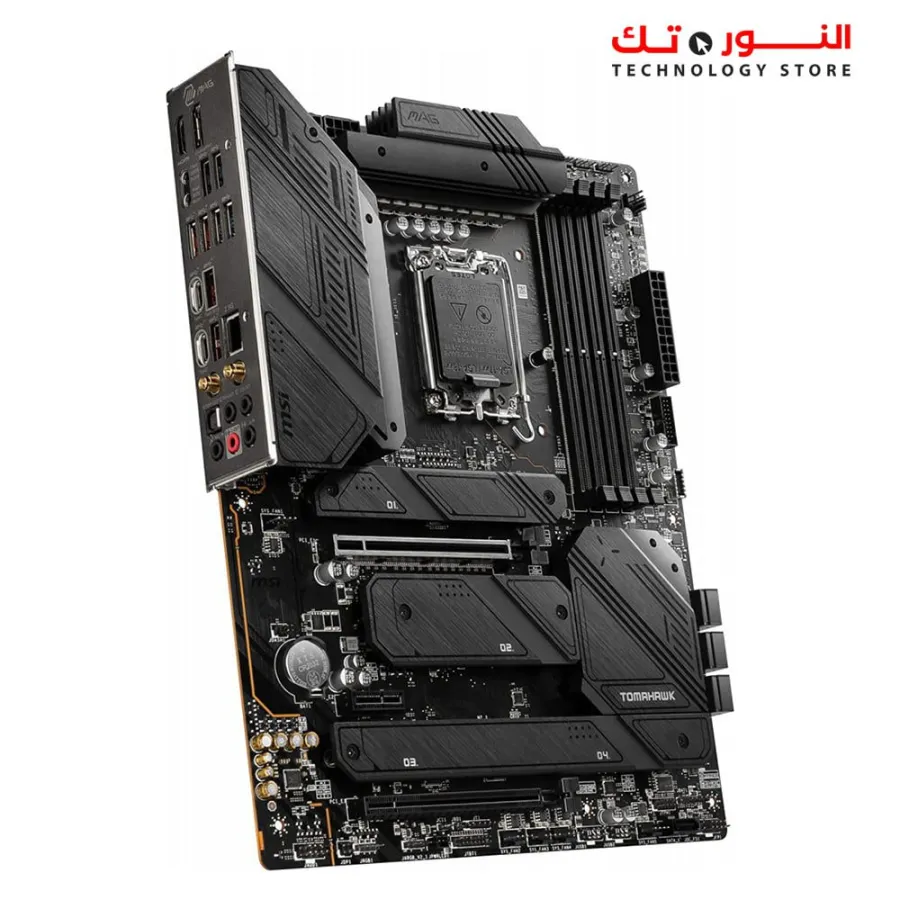

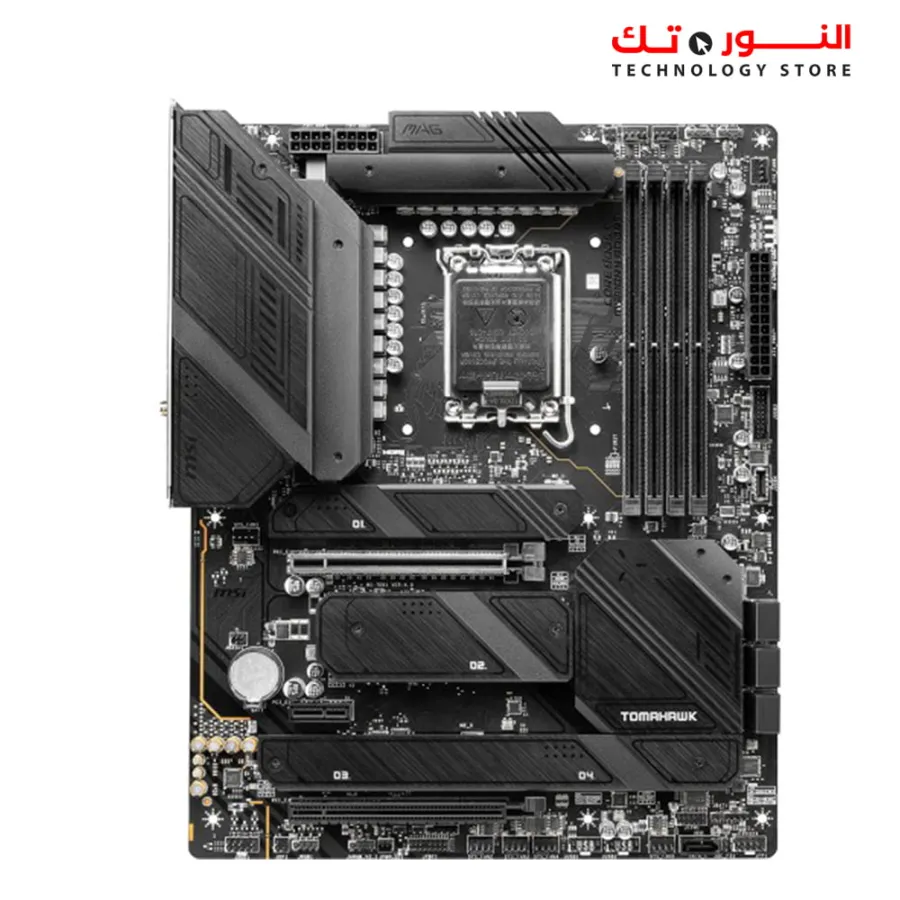

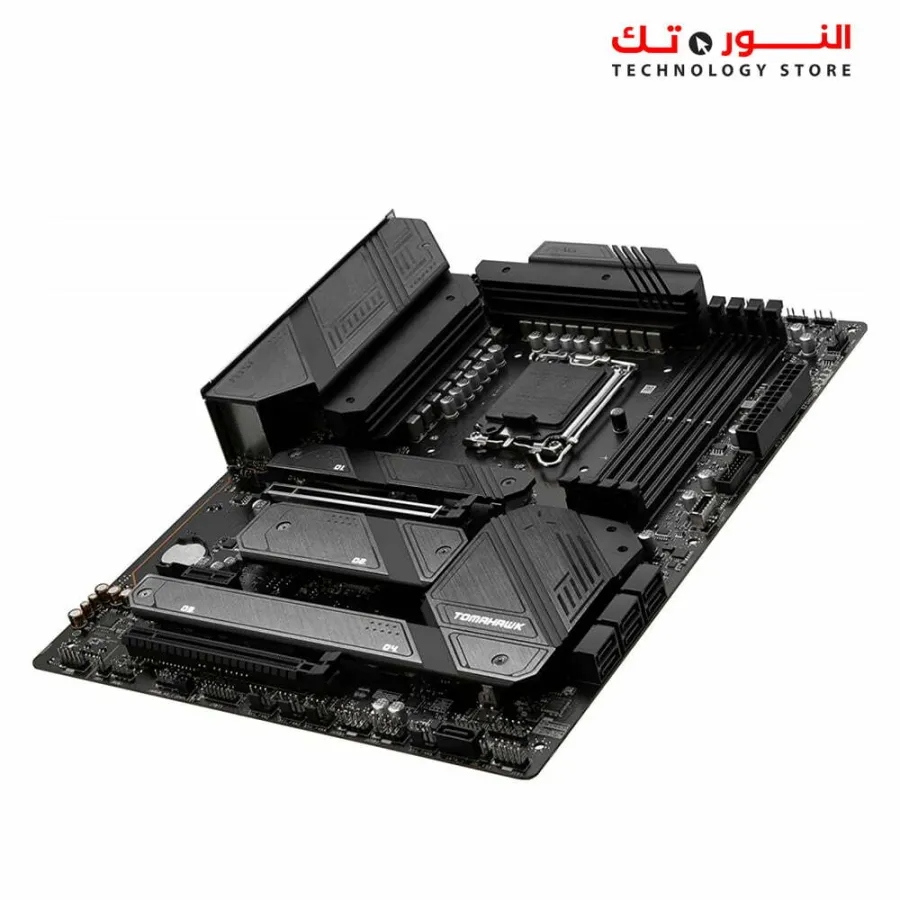

MSI MAG Z790 Tomahawk WiFi Motherboard LGA 1700 DDR4

MSI MAG Z790 Tomahawk WiFi Motherboard LGA 1700 DDR4:

Model

Brand	MSI
Model	MAG Z790 TOMAHAWK WIFI DDR4

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors

Chipsets

Chipset	Intel Z790

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: - 1DPC 1R Max speed up to 5333+ MHz - 1DPC 2R Max speed up to 4800+ MHz - 2DPC 1R Max speed up to 4400+ MHz - 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 5.0 x16	PCI_E1 slot (From CPU) - Supports up to PCIe 5.0 x16
PCI Express 4.0 x16	PCI_E3 slot (From Z790 Chipset) - Supports up to PCIe 4.0 x4
PCI Express x1	PCI_E2 slot (From Z790 Chipset) - Supports up to PCIe 3.0 x1

Storage Devices

SATA 6Gb/s	7x SATA 6Gb/s ports - SATA_1& SATA_5_6& SATA_7_8 (From Z790 chipset) - SATA_A1_A2 (From ASM1061)
M.2	1 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports up to SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices * SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
SATA RAID	0/1/5/10

Onboard Audio

Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	1x Intel 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth	Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports

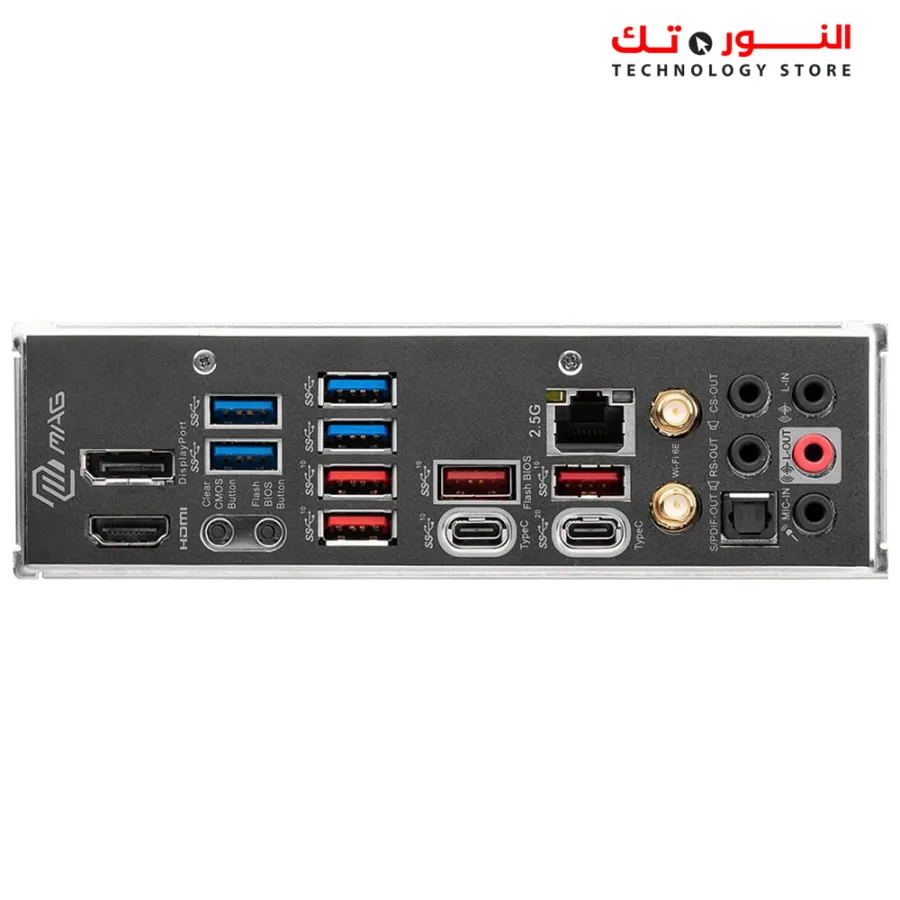

Back I/O Ports	1x DisplayPort 1x HDMI port 1x Clear CMOS button 1x Flash BIOS button 4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523) 4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 1x 2.5Gbps LAN (RJ45) jack 2x Wi-Fi Antenna connectors 5x Audio jacks 1x Optical S/PDIF Out connector

Internal I/O Connectors

Onboard USB

1x USB 3.2 Gen 2 10Gbps Type-C front panel connector (From Z790 chipset) 1x USB 3.2 Gen 1 5Gbps connector (From Hub GL3523) - Support additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub GL850G) - Supports additional 4 USB 2.0 ports

Other Connectors

Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectorsSystem Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (Supports RTD3)Jumpers 1x Clear CMOS jumper 1x OC force enter BIOS jumper (Supports lower PCIe mode)LED Features 1x 4-pin RGB LED connector 3x 3-pin ARGB Gen2 LED connectors 4x EZ Debug LED

Physical Spec

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1x 24-pin ATX main power connector 2x 8-pin +12V power connectors

Windows Compatibility

Windows 11	Supported

  Our Facebook   The MSI MAG Z790 Tomahawk WiFi DDR4 LGA 1700 is likely a motherboard designed for Intel's 12th-generation Alder Lake processors, which use the LGA 1700 socket. Here are some general features and specifications you might expect to find in a motherboard like this:

1. Form Factor: The motherboard is likely to have an ATX form factor, which is a standard size used in many desktop PCs.
2. Processor Support: It is compatible with Intel's 12th-generation Alder Lake processors designed for the LGA 1700 socket.
3. Memory Support: The motherboard likely supports DDR4 memory modules. The maximum memory capacity and supported speeds may vary.
4. Expansion Slots: It may include several expansion slots such as PCI Express (PCIe) x16 slots for graphics cards and PCIe x1 slots for other expansion cards like sound cards or network adapters.
5. Storage Options: The motherboard may offer various storage options such as SATA ports for connecting traditional hard drives and SSDs, as well as M.2 slots for high-speed NVMe SSDs.
6. Networking: The inclusion of "WiFi" in the name suggests that the motherboard likely includes built-in wireless networking capabilities, allowing you to connect to Wi-Fi networks without the need for an additional adapter.
7. USB and Connectivity: It is likely to provide USB ports (both USB 2.0 and USB 3.0/3.1 Gen 1/Gen 2) for connecting peripherals, as well as other connectivity options like Ethernet ports for wired internet connections, audio jacks, and more.
8. Power Delivery and Cooling: The motherboard may have high-quality power delivery components to ensure a stable power supply to the CPU and other components. It might also include heat sinks and fan headers for efficient cooling.
