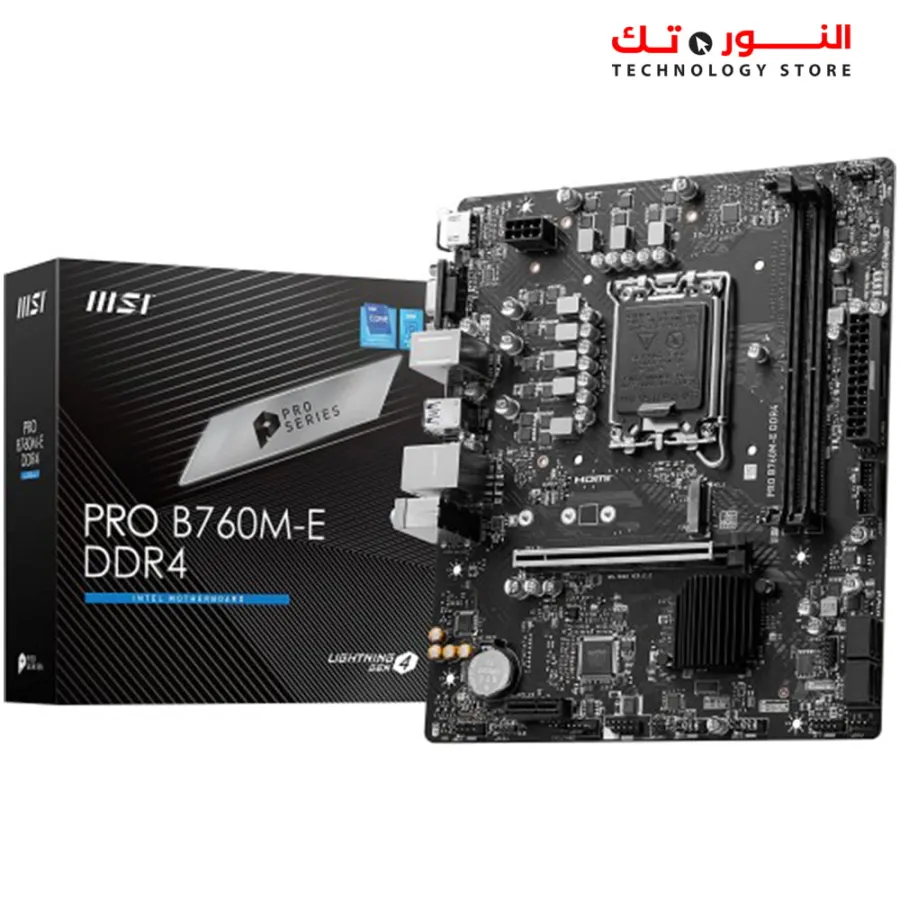

MSI PRO B760M-E Motherboard LGA 1700 DDR4

MSI PRO B760M-E Motherboard LGA 1700 DDR4:

Model

Brand	MSI
Model	PRO B760M-E DDR4

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Chipsets

Chipset	Intel B760

Memory

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x Key M (PCH PCIe/SATA)

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	8 Channels

Rear Panel Ports

Back I/O Ports	1 x D-Sub / 1 x HDMI / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1

Physical Spec

Form Factor	Micro ATX

Our Facebook   The MSI PRO B760M-E is a micro ATX motherboard designed for LGA 1700 socket and supports DDR4 memory. It is compatible with 12th and 13th-generation Intel Core processors, Pentium Gold, and Celeron processors. The motherboard features an Intel B760 chipset. In terms of memory, it has two 288-pin DDR4 memory slots and supports a maximum of 64GB of memory. The supported memory standard is DDR4 3200, and it supports dual-channel memory configuration. For expansion slots, the motherboard offers one PCI Express 4.0 x16 slot, one PCI Express x16 slot, and one PCI Express x1 slot. In terms of storage, it provides four SATA 6Gb/s ports and one M.2 slot (Key M) that supports both PCH PCIe and SATA interfaces. The onboard audio of the motherboard features the Realtek ALC897 audio chipset, supporting 8 channels. The rear panel ports include one D-Sub, one HDMI, two USB 3.2 Gen 2 Type-A, and four USB 2.0/1.1 ports. Overall, the MSI PRO B760M-E motherboard is a compact micro ATX option with LGA 1700 socket support, DDR4 memory compatibility, decent expansion options, and a range of connectivity ports.
