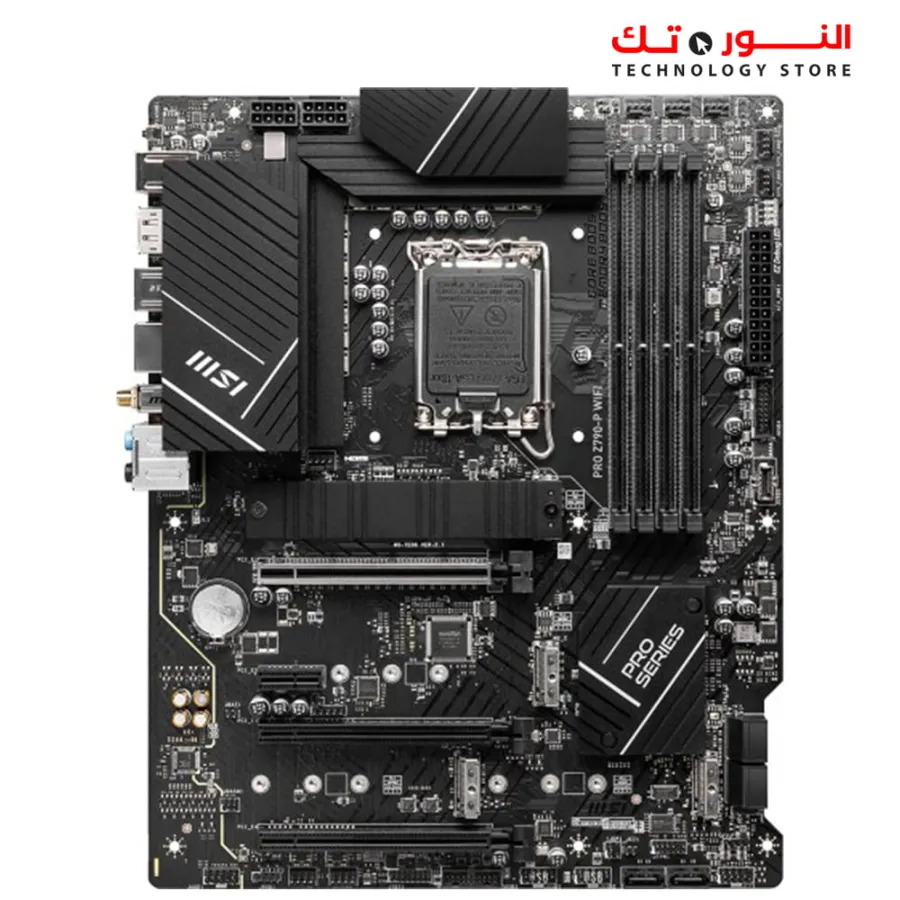

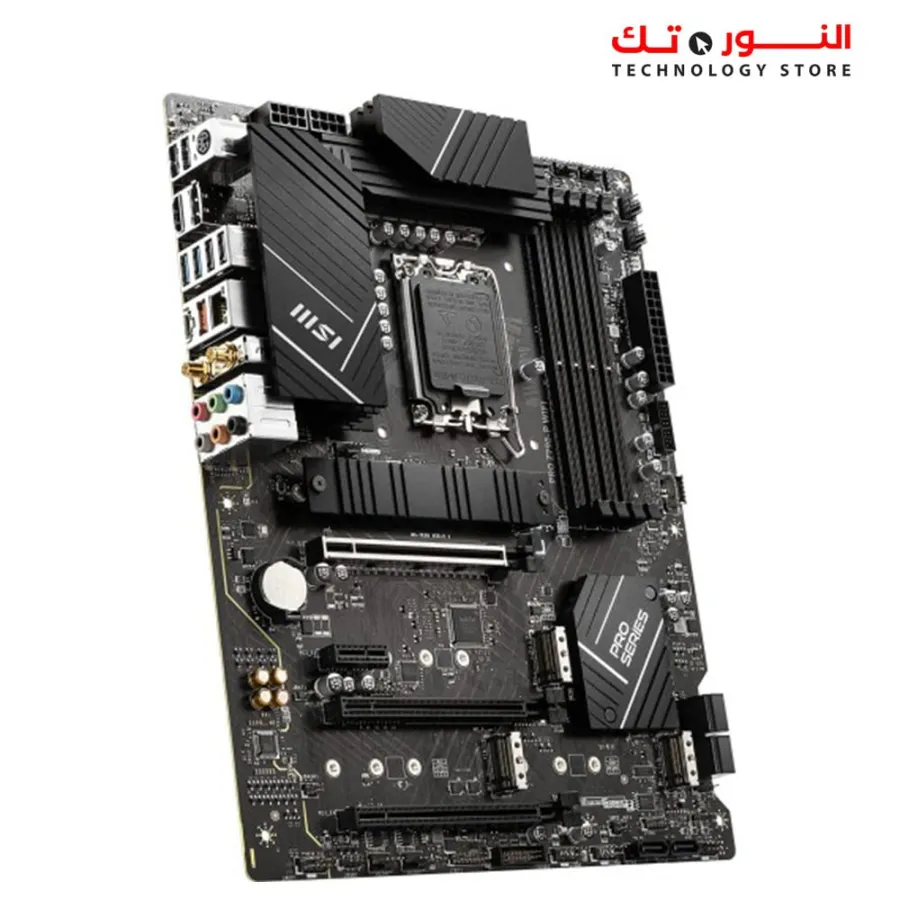

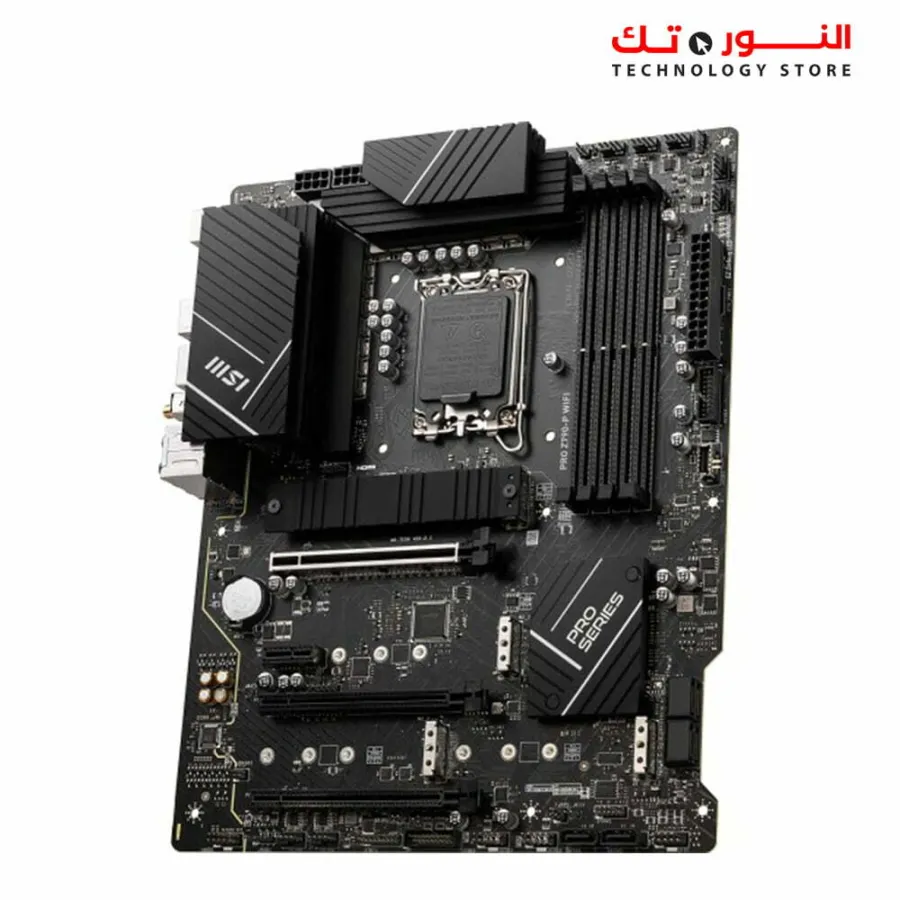

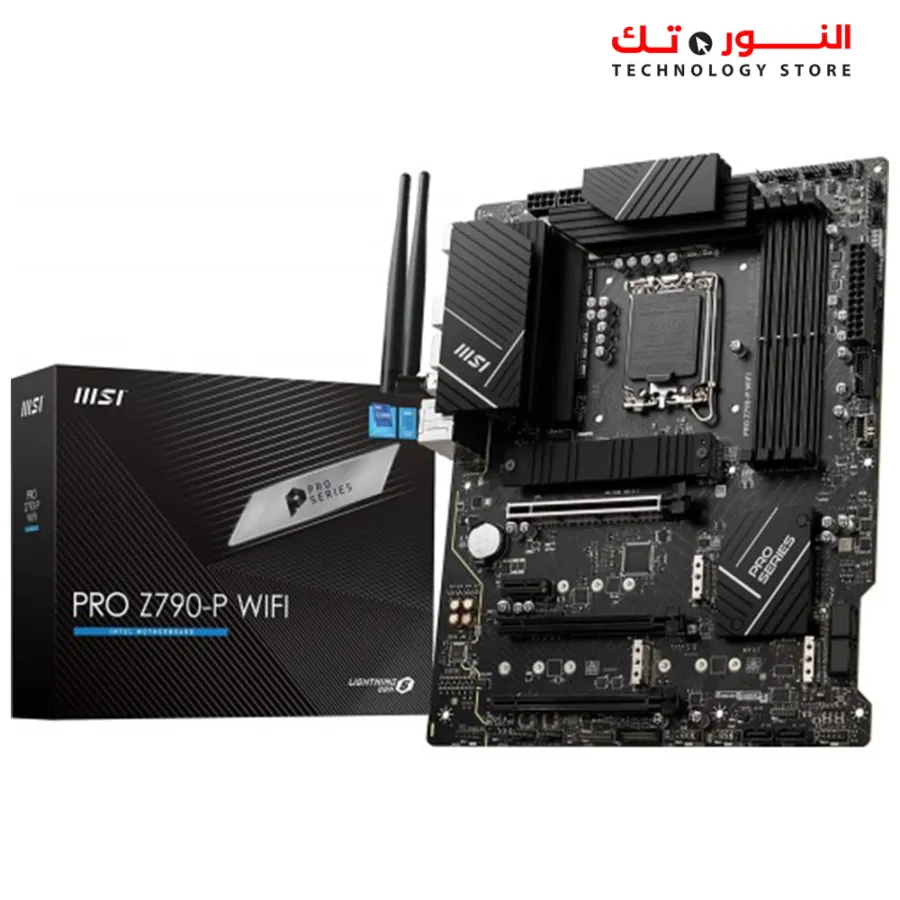

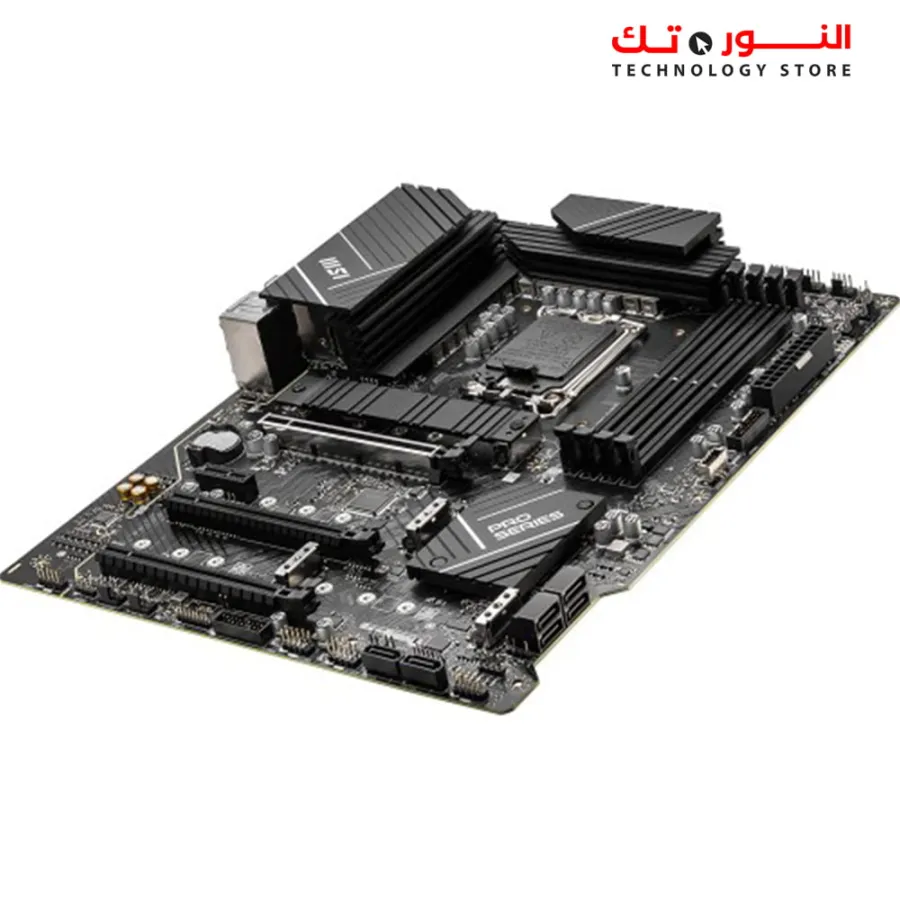

MSI PRO Z790-P WIFI Motherboard LGA 1700 DDR5

MSI PRO Z790-P WIFI Motherboard LGA 1700 DDR5:

Model

Brand	MSI
Model	PRO Z790-P WIFI

Supported CPU

CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors

Chipsets

Chipset	Intel Z790

Memory

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: - 1DPC 1R Max speed up to 7000+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 5.0 x16	PCI_E1 slot (From CPU) - Supports up to PCIe 5.0 x16
PCI Express 4.0 x16	PCI_E3 slot (From Z790 chipset) - PCI_E3 supports up to PCIe 4.0 x4
PCI Express 3.0 x16	PCI_E4 slot (From Z790 chipset) - PCI_E4 supports up to PCIe 3.0 x1
PCI Express x1	1x PCIe x1 slot (From Z790 chipset) - PCI_E2 supports up to PCIe 3.0 x1

Storage Devices

SATA 6Gb/s	6x SATA 6Gb/s ports (From Z790 chipset)
M.2	1 x Key M (CPU PCIe) + 1 x Key M (PCH PCIe) + 2 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z790 chipset) - Supports up to PCIe 4.0 x4 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	1x Intel 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz)up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth	- Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports

Back I/O Ports	1x Flash BIOS button 1x PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) 1x DisplayPort 1x HDMI port 1x LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi Antenna connectors 6x Audio jacks

Internal I/O Connectors

Onboard USB

1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 2x USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) - Supports additional 4 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) - Supports additional 4 USB 2.0 ports

Other Connectors

Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectorsSystem Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)Jumpers 1x Clear CMOS jumperLED Features 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin ARGB Gen2 LED connectors

Physical Spec

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors

Windows Compatibility

Windows 11	Supported

  Our Facebook   The MSI PRO Z790-P WIFI Motherboard is a feature-packed ATX motherboard designed for the LGA 1700 socket and DDR5 memory, offering excellent performance and versatility. With its support for Intel's 13th and 12th Generation Core processors, as well as Pentium Gold and Celeron processors, it caters to a wide range of computing needs. In terms of memory, the motherboard features four DDR5 memory slots, supporting a maximum capacity of 192GB. It supports memory speeds up to 5600+ MHz with JEDEC and POR standards. Additionally, it includes Intel XMP 3.0 for easy overclocking and Dual-Controller Dual-Channel mode for enhanced memory performance. The expansion slots on this motherboard provide flexibility for adding various components. It includes a PCIe 5.0 x16 slot, which supports high-speed graphics cards, a PCIe 4.0 x16 slot for additional expansion cards, a PCIe 3.0 x16 slot, and a PCIe x1 slot. These slots allow for optimal customization and future upgrades. For storage options, the PRO Z790-P WIFI motherboard offers six SATA 6Gb/s ports for connecting traditional drives and four M.2 slots. The M.2 slots support PCIe 4.0 x4 and SATA 6Gb/s connections, allowing for high-speed NVMe SSDs and versatile storage configurations. The motherboard also supports RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices. In terms of audio, the motherboard is equipped with the Realtek ALC897 audio chipset, supporting 7.1 channels, ensuring an immersive audio experience for gaming and multimedia applications. Connectivity-wise, it features an Intel 2.5Gbps LAN controller for fast and stable wired networking. It also includes Intel Wi-Fi 6E, providing reliable wireless connectivity with MU-MIMO support and compatibility with various Wi-Fi standards. Bluetooth 5.2 support is available as well. The rear panel of the motherboard offers a comprehensive array of ports, including USB 2.0 and USB 3.2 Gen 1 Type-A ports, a DisplayPort, an HDMI port, LAN (RJ45) jack, USB 3.2 Gen 2 Type-A and Type-C ports, audio jacks, and Wi-Fi antenna connectors. With its solid build quality, RGB lighting, and user-friendly features such as EZ Debug LED, the MSI PRO Z790-P WIFI Motherboard is an excellent choice for users seeking a reliable and versatile platform for their high-performance computing needs. Whether it's gaming, content creation, or other demanding tasks, this motherboard delivers a strong foundation for a powerful and customizable system.
