NOCTUA NH-U12S REDUX
NOCTUA1
SKU: 1599
Categories:Computer Components,CoolingTags:#cooler#NOCTUA#U12S REDUX
NOCTUA NH-U12S REDUX
| Brand | NOCTUA |
|---|---|
| Cooling Type | AIR COOLING |
Secure payment methods

- Every shipment insured against breakage
- Fast shipping within 24 hours
- Inspect on delivery — every piece checked
Description

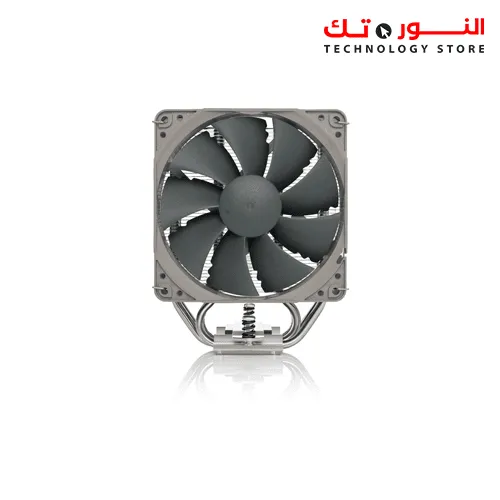

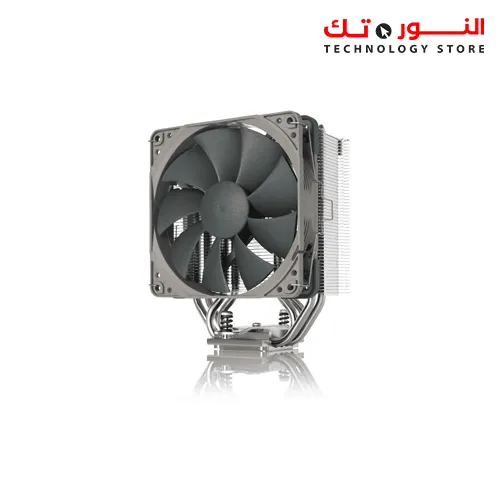

NOCTUA NH-U12S REDUX
True to the spirit of Noctua’s redux line, the NH-U12S redux is a streamlined, accessibly priced version of the iconic NH-U12Sthat has established itself as a benchmark for slim, highly compatible 120mm CPU coolers. The redux version uses the same proven heatsink layout that guarantees 100% compatibility with tall RAM modules as well as excellent case and PCIe compatibility. Thanks to the popular NF-P12 redux-1700 PWM fan with automatic speed control, it provides high performance under load and runs whisper-quiet at idle. At the same time, Noctua’s renowned, professional SecuFirm2™ mounting system and the pre-applied NT-H1 thermal compoundmake installation child’s play. Backed up with Noctua’s trusted 6-year manufacturer’s warranty, the NH-U12S redux is a smart, affordable choice for a quiet, high-quality 120mm cooler. Based on the award-winning NH-U12SThe NH-U12S redux is based on Noctua’s proven, premium-grade NH-U12S, which is widely recognised as one of the best slim 120mm single-tower coolers on the market.
Classic 120mm tower size for excellent case and PCIe compatibility
Standing 158mm tall, the NH-U12S redux is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.
100% RAM compatibility

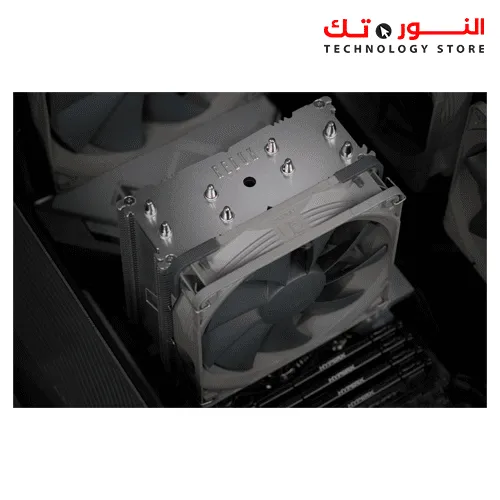

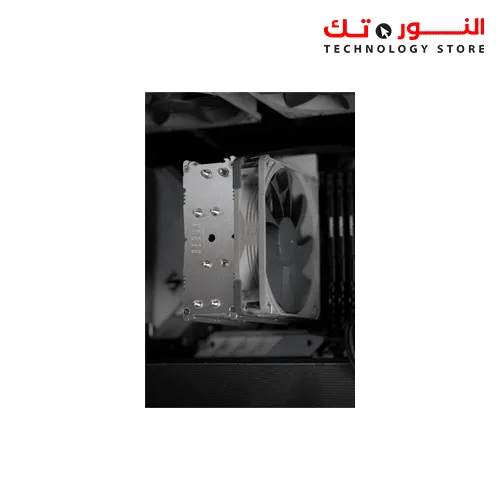

Thanks to its slim design with only 45mm fin depth, the NH-U12S redux will not overhang the RAM slots on any current platform. This gives the user full access to the memory modules and guarantees 100% compatibility with modules that feature tall heat-spreaders or RGB lighting.
Product Details
Notes and warnings
Cooler Specification
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4
Height (without fan)
158 mm
Width (without fan)
125 mm
Depth (without fan)
45 mm
Height (with fan)
158 mm
Width (with fan)
125 mm
Depth (with fan)
71 mm
Weight (with fan)
755 g
Material
Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
129
Max. TDP
see NSPR
Fan compatibility
120x120x25
Scope of delivery

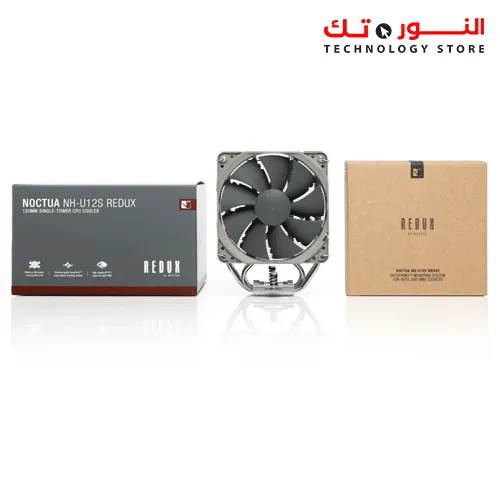

- NH-U12S redux heatsink
- NF-P12 redux-1700 PWM fan
- 4x NA-AVP1 chromax.grey anti-vibration pads
- Fan mounting clips (one pair)
- NT-H1 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
1700 RPM
Min. rotational speed (PWM, +/-20%)
450 RPM
120,2 m³/h
Max. acoustical noise
25,1 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
