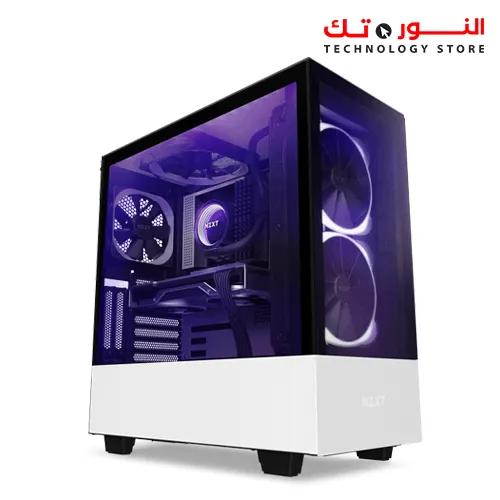

NZXT Case h510 Elite White

Key Specs

• Motherboard Support

  Mini-ITX, MicroATX, ATX

• Enclosure Type

  Compact Mid-Tower

• Case Material

  SGCC Steel, Tempered Glass

Dimensions

• Height

  460mm / 18.11 inches

• Width

  210mm / 8.27 inches

• Depth

  428mm / 16.85 inches

• Weight

  7.5 kg / 16.53 lb

Compatibility & Clearance

• Max CPU Cooler Clearance

  165mm

• Max GPU Clearance

  338 - 368mm

• Front Fan & Radiator Clearance

  60mm

• Vertical GPU Clearance

  50.8mm

• Cable Management

  19 - 23mm

Front I/O Ports

• USB 3.2 Gen 2 Type-A

  1

• USB 3.2 Gen 1 Type-C

  1

• Headset Audio Jack

  1

Smart Device

• Fan Channels

  3 (10W max per channel)

• NZXT RGB Connector

  2 (Support up to 40 LEDs)

Expansion Slots

• Standard

  7

• Vertical

  2

Drive Bays

• 2.5"

  2 + 1

• 3.5"

  2 + 1

Fan Support

• Front

  2 x 120mm / 2 x 140mm

• Top

  1 x 120mm / 1 x 140mm

• Rear

  1 x 120mm

• Filters

  All air intakes

Radiator Support

• Front

  280mm

• Top

  -

• Rear

  120mm

Fan Specs

• Model

  Aer RGB 2 140mm

• Speed

  500 - 1,500 ± 300RPM

• Airflow

  30.39 - 91.19 CFM

• Static Pressure

  0.17 - 1.52 mm-H₂O

• Noise

  22 - 33 dBA

• Fan Connector

  4-pin PWM

Fan Specs

• Model

  Aer P 140mm (Case Version)

• Speed

  1,000 ± 200RPM

• Airflow

  68.95 CFM

• Noise

  28 dBA

• Fan Connector

  3-pin

Fan Specs

• Model

  Aer P 120mm (Case Version)

• Speed

  1,200 ± 200RPM

• Airflow

  50.42 CFM

• Noise

  28 dBA

• Fan Connector

  3-pin
