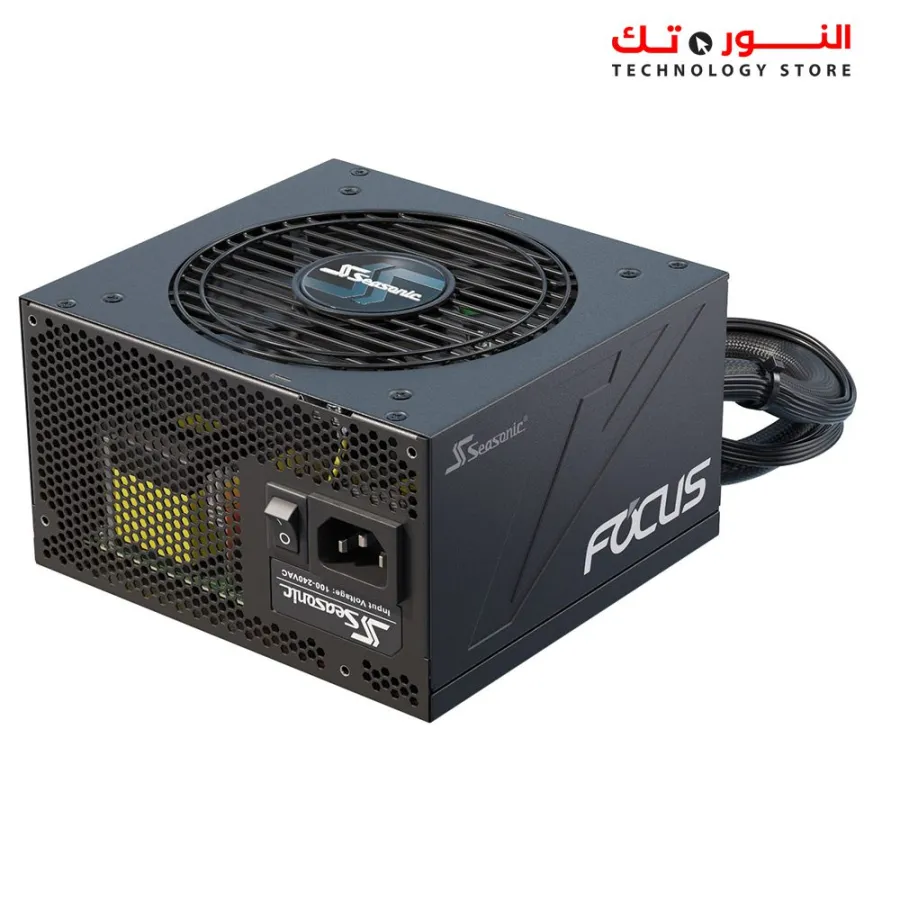

Seasonic FOCUS GM-750 750W 80+ Gold Semi-Modular

Name: Seasonic FOCUS GM-750 750W 80+ Gold Semi-Modular
Brand: Seasonic
SKU: 2526
Price: 3999.00 EGP
Availability: OutOfStock

Seasonic FOCUS GM-750 750W 80+ Gold Semi-Modular: Description of Seasonic FOCUS GM-750 750W 80+ Gold Semi-Modular: The newly upgraded FOCUS GM series is the successor to the FOCUS Series, which became an instant top seller in the power supply market after its launch in 2017. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative. (Learn More about OneSeasonic Initiative)

SPECIFICATIONS

FOCUS-GM-750

Technical Specifications
80PLUS^®		Gold
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	S2FC
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Semi-modular
Cable Information	Cable type	Webbed cables (attached) Flat black cables(modular)
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 10 - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
	Maximum Power	100 W		744 W	3.6 W	15 W
	Total continuous power	750 W

CABLES

FOCUS-GM-750

Connector	Connector count	Cable count
Main Power (24/20 pins)	1	1
CPU (8/4 pins)	1	1
PCIe (8/6 pins)	4	0
PCIe (8/6 pins)	4	2
SATA	8	2
		0
		0
		0
		0
		0
Peripheral	3	1
Peripheral	3	0
Floppy	1	0

Specifications are subject to change without prior notice.

Our Facebook The Seasonic FOCUS GM-750 is a high-quality power supply unit designed for gamers and enthusiasts who demand reliable and efficient power delivery. This power supply unit is 80+ Gold certified, ensuring excellent energy efficiency and reduced power consumption. The Seasonic FOCUS GM-750 has a semi-modular design, which allows you to use only the cables you need, reducing clutter and improving airflow within your computer case. The cables are webbed and flat black, giving them a sleek and stylish appearance. The power supply unit measures 140 mm (L) x 150 mm (W) x 86 mm (H) and features a 120 mm fluid dynamic bearing fan with S2FC fan control, which helps to reduce noise and improve cooling efficiency. The fan has a life expectancy of 50,000 hours at 40 °C, ensuring long-lasting and reliable performance. The Seasonic FOCUS GM-750 has a range of electrical features, including full-range AC input, an operating temperature of 0 - 50 °C, and an MTBF of 100,000 hours at 25 °C, excluding the fan. The power supply unit also features protection against overpower (OPP), over-voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit protection (SCP). The Seasonic FOCUS GM-750 is compliant with a range of safety and environmental regulations, including cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, and REACH. It comes with a 7-year warranty, ensuring peace of mind and long-term reliability. The power output of the Seasonic FOCUS GM-750 is 750W, with a total continuous power of 750W. It features a range of connectors, including a main power connector (24/20 pins), a CPU connector (8/4 pins), four PCIe connectors (8/6 pins), eight SATA connectors, three peripheral connectors, and one floppy connector. Overall, the Seasonic FOCUS GM-750 is a high-quality and reliable power supply unit that delivers excellent performance and efficiency. Its semi-modular design, range of electrical features, and compliance with safety and environmental regulations make it an excellent choice for gamers and enthusiasts who require reliable and efficient power delivery.
