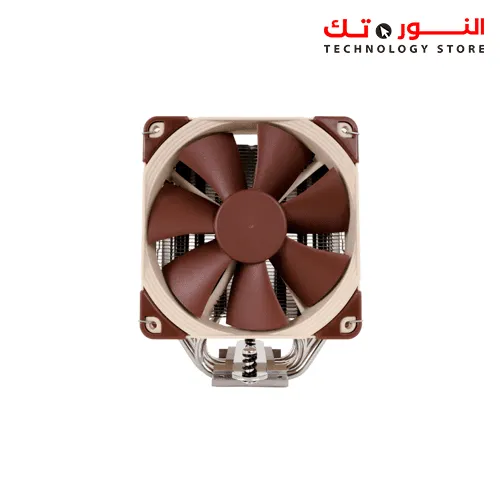

NOCTUA NH-U12S

NOCTUA NH-U12S

Cooler Specification

Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS)

Height (without fan)

158 mm

Width (without fan)

125 mm

Depth (without fan)

45 mm

Height (with fan)

158 mm

Width (with fan)

125 mm

Depth (with fan)

71 mm

Weight (with fan)

755 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

129

Max. TDP

see NSPR

Fan compatibility

120x120x25

Scope of delivery

NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge

FAN Specification

Model

Noctua NF-F12 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

93,4 m³/h

Max. airflow with L.N.A.

74,3 m³/h

Max. acoustical noise

22,4 dB(A)

Max. acoustical noise with L.N.A.

18,6 dB(A)

Voltage range

12 V

MTTF

> 150.000 h

Award-winning NH-U12 series

Name: NOCTUA NH-U12S
Brand: NOCTUA
SKU: 1598
Price: 2499.00 EGP
Availability: OutOfStock

The NH-U12S is the latest version of Noctua's award-winning NH-U12 coolers.

100% RAM compatibility

Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.*

Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.

NF-F12 120mm Focused Flow™ fan

Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

PWM support and Low-Noise Adaptor

The NF-F12 120mm fan supplied with the NH-U12Ssupports PWM for convenient automatic speed control through the motherboard.

Anti-vibration pads and fan-clips for second NF-F12 (optional)

For users who want to achieve even better performance by adding a second, optional NF-F12fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.

SecuFirm2™ mounting system

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1700 (since 2022), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4 and AM5 (since 2019), the SecuFirm2™ mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-F12 features an MTTF rating of more than 150.000 hours and the entire NH-U12Spackage comes with a full 6-year manufacturer's warranty.

. Please consult our compatibility list for details.
