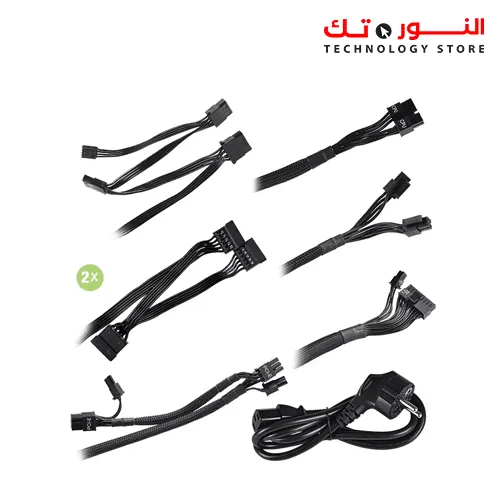

CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIE Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm (Floppy)
AC Power 1x 1200mm (m)
Modular Cable Type No
CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIE 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x
POWER SPECS
AC Input 100 – 240 VAC, 8/4A, 50 – 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 20A 20A 37.5A 3A 0.3A
450W
120W 450W 15W 3.6W
Total 450W @ +30C
ADDITIONAL DETAILS
Operating Temperature 0° to 30° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 4 lbs
Size 85mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Long Sleeve Bearing
